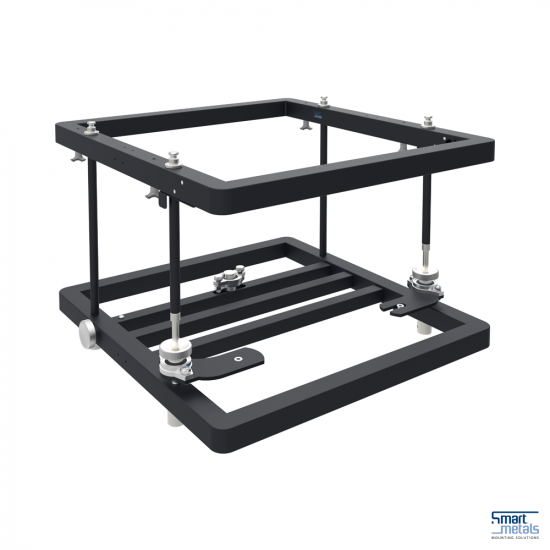

SmartMetals - Stack Frame Alu. (350) <590x820x350

SmartMetals - Stack Frame Alu. (350) <590x820x350

Aluminium, lightweight, solid, fitted with a removable front, fine adjustment over 3 axes and still the most affordable frame on the market. This is the summary of a new line SmartMetals stack frames. The stack frames are available in different standard sizes and can be used independantly by means of a projector specific adapter plate. By the removable front, all models can be combined with projectors which are fitted with ultra-short throw or wide angle lenses. The frames are connected easily and are fitted with a 100x100mm mounting pattern for an adjustable truss adapter (002.4600). Using the 112.1019 truss mounts the stack frames can also be installed for a floor as well as portrait projection.

• Maximum length: 820 mm
• Weight: 14.90 kg
• Colour: Black
• Maximum load: 99 kg
• Bracket/interface: Excluded
• Type bracket/interface: Projector specific
• Tilt function: +5° till -5° / +2.5° till -7°
• Rotation: +3.5° till -3.5°
• Other information: Max. stacked weight underneath top frame is 275 kg.
