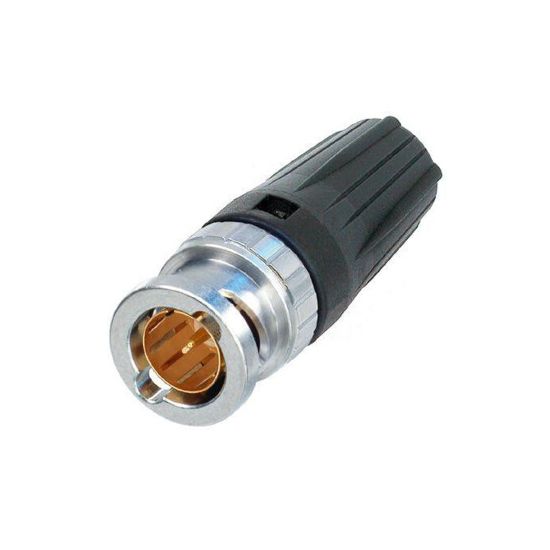

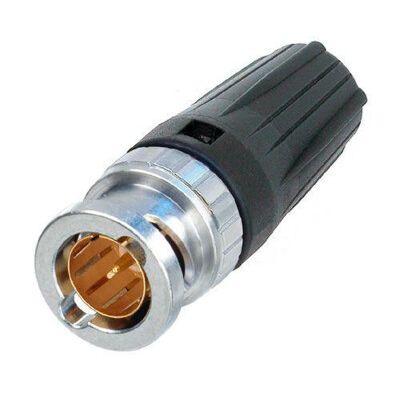

The rearTWIST HD BNC cable connector offers a true 75 Ω design and is perfectly suitable for HD applications.
The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding.

Suitable cables:
Kansai 3C-5S, Proel HPC 820

Crimp size:
Pin: 1.6 mm (square)
Shield: 5.0 mm (hex)

Features

• “rearTWIST Principle” locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
• Ideal for recessed bulkheads where access to the “head” of the connector might be an issue. These connectors turn from the back and not the front.
• True 75 Ω design meets the stringent HDTV / DVD requirements
• Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles!
• Snug-fit center pin insert provides tactile feedback
• Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
• Excellent cable protection and retention
• Precise Swiss machined brass parts for outstanding durability
• Accessories include color coded boots in 10 standard colors, crimp tool and dies

• Product: NBNC75BFH6
• Connection Type: BNC 75 Ω
• Gender: male

• Contact resistance (inner): ≤ 3 mΩ
• Contact resistance (outer): ≤ 2 mΩ
• Dielectric strength: 1,5 kVdc
• Impedance: 75 Ω
• Insulation resistance: > 5 GΩ
• Rated voltage: <50 V
• VSWR: ≤1.050/>32 dB up to 1 GHz
• VSWR: ≤1.065/>30 dB up to 2 GHz
• VSWR: ≤1.100/>26 dB up to 3 GHz

• Cable O.D.: 4.9 mm
• Cable retention: > 30 N (Center)
• Crimp size: 5 Hex crimp (shield) acc. MIL22520/5-43(B)
• Crimp size (pin): 1,6 Square crimp (pin) acc. IEC 60803 (die designation 2)
• Insertion force: < 25 N
• Lifetime: > 1000 mating cycles
• Locking device: Bayonett
• Cable anchoring: Jacket crimping

• Contacts: Brass (CuZn35Pb2), 0.2 µm AuCo (Center contact)
• Insert: PTFE
• Shell: Brass (CuZn39Pb3)
• Shell plating: Optalloy®

• Temperature range: -30 °C to +85 °C
• Contact crimpability: Complies with IEC 60803 and IEC 60352-2
