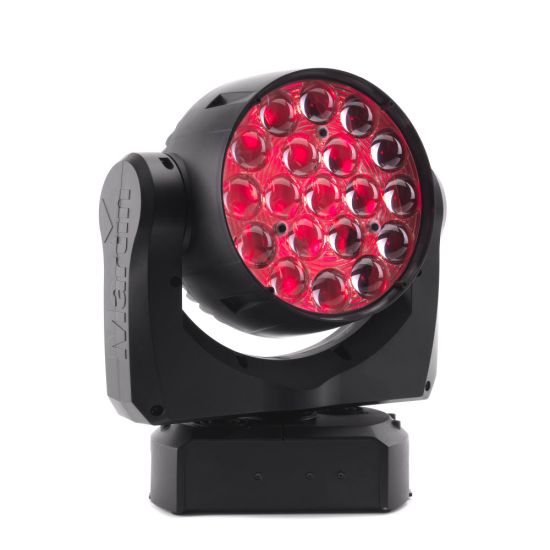

Martin | MAC Aura XB

Martin | MAC Aura XB

The MAC Aura XB takes an award-winning, innovative, compact LED wash light to the next level, incorporating many new features first introduced with the MAC Quantum Wash™. Not only does the MAC Aura XB offer additional brightness, it also features a new superior color mixing system and an optimized lens design for tighter beams and more even washes. Martin's unique and patented Eye-candy Aura Effect™ is also part of the package.

• Super bright single lens wash with fully premixed color
• Compact design and low weight
• High efficiency, low power consumption, long service life

Features

• LIGHT SOURCE
• 6,000 lumens RGBW light output
• High narrow intensity: 220,000 cd
• Beam: 19x 15W RGBW LEDs
• Aura: 30x 0.3W RGB LEDs
• Fully calibrated using Martin's Full Gamut Color Calibration
• Flicker-Free operation – LED driver frequency suitable for all kinds of camera applications

OPTICS

• Tight beam and beautiful wash field
• 9.0 – 59.1˚ zoom – Precise, silent and fast zoom
• Even wash field with zero hotspot
• High intensity mid-air beams
• Minor color temperature shift from center to edge

SOFTLENS ACCESSORY

• Creates a softer edge wash field
• Reduces glare from fixture lens
• Attaches to front of fixture
• Can remain attached to fixture inside flightcase SiP

COLOR PALETTE

• RGBW color mixing with very bright and vibrant saturated colors, as well as soft pastels and white tones
• Calibrated, Extended & Raw Color Modes
• Calibrated CTC control: 2,500 – 10,000 K
• Virtual Color Wheel

DYNAMIC EFFECTS

• Built-in FX macros
• High-speed pan, tilt and zoom

COOLING AND NOISE

• Ultra-quiet cooling system
• Low noise pan/tilt and effects operation

CONSTRUCTION

• Weight 6.5 kg (14.4 lbs.)
• Dimensions: 302 x 332 x 163 mm

CONTROL

• Control panel on the back of the head
• DMX in & thru
• RDM over DMX

Physical

• Width (across yoke): 302 mm (11.89 in)
• Width (base): 222 mm (8.74 in)
• Height (head forward): 360 mm (14.17 in)
• Height (maximum): 390 mm (15.35 in)
• Depth (head): 163 mm (6.42 in)
• Depth (base): 138 mm (5.43 in)
• Minimum center-to-center distance (side-by-side): 320 mm (13 in)
• Weight: 6.5 kg (14.4 lbs)

Dynamic Effects

• Beam dimmer/shutter: 0–100% continuous dimming, regular & random strobe/pulse/burst, instant open & blackout
• Beam dimming curves: 4 selectable curves
• Beam color mixing: RGB (RGBW in Raw Mode), independently variable 0–100%
• Beam color temperature control: 2,500–10,000 K
• Beam virtual color wheel: 33 presets, continuous rotation & random color
• Zoom: Motorized, 1:6 zoom ratio
• Pan: Motorized 540°
• Tilt: Motorized 232°
• Aura dimmer/shutter: 0–100% continuous dimming, regular & random strobe/pulse/burst, instant open & blackout
• Aura dimming curves: 4 selectable curves
• Aura color mixing: RGB, independently variable 0–100%
• Aura virtual color wheel: 33 presets, continuous rotation & random color
• Pre-programmed effects: Two FX ranges on Beam, Aura or combined, independent or synchronized

Control and Programming

• Control protocols: DMX, RDM
• DMX modes: Standard, Extended
• DMX channels: 14 / 25
• 16-bit control: Pan, Tilt
• Setting & addressing: Display menu or RDM
• User interface: Backlit LCD display
• DMX compliance: USITT DMX512-A
• RDM compliance: ANSI/ESTA E1.20
• DMX/RDM transceiver: Galvanic-isolated RS-485
• Firmware update: Via DMX using Martin Companion

Optics

• Front lens diameter: 200 mm (7.87 in)
• Zoom range: 1:6
• Beam angle (half peak): 9.0° – 41.7°
• Field angle (tenth peak): 10.3° – 59.1°
• Beam light source: 19 × 15 W RGBW LED
• Aura light source: 30 × 0.3 W RGB LED
• Max. beam LED engine power: 285 W
• Max. aura LED engine power: 9 W
• Minimum LED lifetime: >50,000 hours (to >70% output)

Photometric Data

• Light engine luminous output: 10,000 lm
• Fixture luminous output (wide): 6,000 lm
• Fixture luminous output (narrow): 4,300 lm
• Peak luminous intensity (narrow): 220,000 cd
• CCT: 2,500–10,000 K (±200 K)
• CRI: ≥ 67
• CQS: ≥ 82
• TM-30 Rf: ≥ 76
• TM-30 Rg: ≥ 119
• TLCI: ≥ 48
• Beam LED refresh rate: 1,200 Hz
• Aura LED refresh rate: 4,395 Hz
• Binning: Tight color & flux binning
• Calibration: Full gamut color calibration (Beam & Aura)
• Color modes: Extended, Calibrated & Raw Color Mode

Construction

• Housing: High-impact thermoplastic, flame-retardant (UL 94 5VA)
• Color: Black
• Protection rating: IP20

Installation

• Mounting: M12 threaded hole for rigging clamp, surface-mount bracket points
• Location: Indoor
• Orientation: Any
• Min. distance to combustible materials: 0.2 m (7.87 in)
• Min. distance to illuminated surfaces: 1.0 m (39.37 in)

Connections

• Power in/thru: Neutrik powerCON TRUE1
• DMX/RDM in/thru: Neutrik 5-pin locking XLR

Electrical

• AC power: 100–240 V AC, 50/60 Hz
• Power supply: Auto-ranging electronic switch mode
• Inrush current (230 V, 50 Hz): 10.7 A
• Power factor: 0.99 @ 100/120 V, 0.97 @ 208 V, 0.95 @ 230/240 V
• Max current draw: 3.8 A @ 100/120 V, 1.8 A @ 208–240 V
• Typical current draw: 3.8 A @ 100 V, 3.2 A @ 120 V, 1.8 A @ 208 V, 1.7 A @ 230 V, 1.6 A @ 240 V

Power Consumption

• Maximum: 400 W
• Typical: 359 W
• Idle: 25 W

Thermal

• Cooling: Forced air, temperature-regulated, low-noise, user-definable
• Max ambient temperature: 40 °C (104 °F)
• Min ambient temperature: 5 °C (41 °F)
• Total heat dissipation: 1230 BTU/hr (±10%)

Acoustic Data

• Sound pressure level @ 1 m: 28.9 dB(A)

Environmental

• RoHS: Compliant
• REACH: Compliant
• WEEE: Compliant
• Proposition 65: Compliant
• Efficacy (max): 26.7 lm/W
• LWR: 923 lm/kg (417 lm/lb)
