Eurotruss | XTS

Eurotruss | XTS

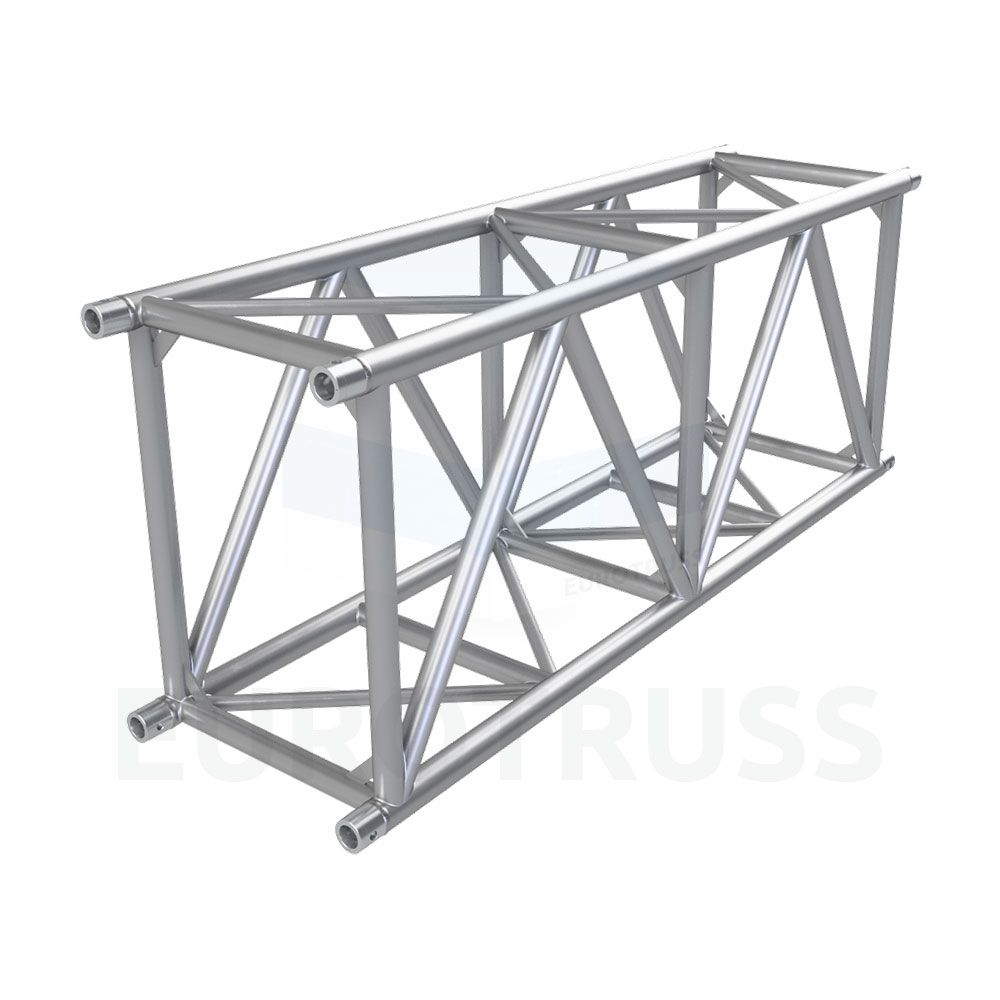

The XTS Truss lends itself perfectly for bending resistant spans up to a free span of 36m. With its high load bearing capacity the XTS has the identical features of the TT truss but the overall size is scaled down.

Due to its special shape and dimensions the redesigned XTS Truss accomodates a great rigidity and can be used for long spans with high loadings. The 60×5 mm tube reduces guarantees extreme durability.

XTS gives you a much higher load ability than all the available trussing in this size & segment.

The XTS Truss is despite its dimensions and self weight a very easy truss system to handle. The XTS Truss can be equipped optional with the heavy duty castors.

Made with the fast CS3 connection system.

Features

• Tolerance free conical connector system
• High stability aluminium alloy
• Excellent load bearing capacity
• Low dead weight
• 60 mm main tube with 5 mm wall thickness
• TüV certified

• Height: 810 mm (31.89 in)
• Width: 580 mm (22.83 in)
• Main Tube: 60 x 5 mm (2.36 x 0.20 in)
• Braces: 50 x 3 mm (1.97 x 0.12 in)
• Braces: 30 x 3 mm (1.18 x 0.12 in)
• Weight: ~23 kg/m (~15.5 lbs/ft)
• Pin Position: Horizontal and vertical
• Material: EN AW-6082 T6
• Connection: CS3-CON
