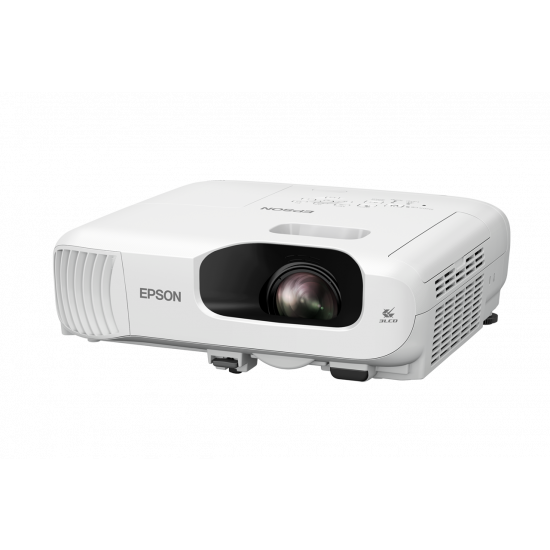

Epson | EB-W56S - Projector

Epson | EB-W56S - Projector

Features

• Bright display up to 300" with 3,700 lumens for sharp, vibrant images, even in well-lit spaces

Ensure every detail is crystal clear with a 3,700-lumen HD-ready display up to 300" that delivers sharp, vibrant images even in well-lit spaces.

• Portable short-throw design with 0.6:1 ratio for large images from a short distance

A lightweight design combined with a short-throw ratio of 0.6:1 means large, clear images from a short distance, and the flexibility to be used in any environment.

• Flexible connectivity with Ethernet, optional wireless (ELPAP11), and 2x HDMI ports

Includes a standard network port, optional wireless with ELPAP11, and 2x HDMI ports, while Epson’s iProjection app enables connectivity with almost any device.

• Split-screen capability to display up to 4 inputs simultaneously

Display up to 4 inputs on one display using the projector’s split-screen capability.

• Low maintenance with lamp life up to 10,000 hours in Eco mode

Long lamp life of up to 10,000 hours in Eco mode.

• 5-year warranty for high reliability and peace of mind

High reliability and great peace of mind.

Technology

• Projection System: 3LCD Technology
• LCD Panel: 0,59 inch with C2 Fine


• Color Light Output: 3.700 Lumen – 2.000 Lumen (economy)
• White Light Output: 3.700 Lumen – 2.000 Lumen (economy) In accordance with ISO 21118:2020
• Resolution: WXGA
• Resolution Enhancement: HD ready
• Aspect Ratio: 16:10
• Contrast Ratio: 16.000 : 1
• Light source: Lamp
• Lamp: 6.500 h durability, 17.000 h durability (economy mode)
• Keystone Correction: Auto vertical ±15°, Manual horizontal ±15°
• Colour Video Processing: 10 Bits
• 2D Vertical Refresh Rate: 100 Hz – 120 Hz
• Colour Reproduction: Up to 1.07 billion colours

Optical

• Throw Ratio: 0,60 – 0,81:1
• Zoom: Digital, Factor 1 – 1,35
• Lens: Optical
• Screen Size: 50 inches – 300 inches
• Projection Lens F Number: 1,8
• Projection Lens Focal Length: 7,8 mm
• Projection Lens Focus: Manual
• Offset: 10 : 1

Connectivity

• Interfaces: USB 2.0-A, RS-232C, Ethernet (100 Base-TX / 10 Base-T), VGA in (2x), VGA out, Composite in, Microphone input, USB 2.0 Type B (Service only), Wireless LAN IEEE 802.11a/b/g/n/ac (optional), HDMI 1.4 (2x)
• Epson iProjection App: Ad-Hoc / Infrastructure
• Network Protocol: IPv4, IPv6, SNMP, ESC/VP.net, PJLink

Advanced Features

• Security: Kensington lock, Password lock, Security cable hole, Wireless LAN unit lock, Password protection
• 2D Colour Modes: Dynamic, Cinema, Presentation, sRGB, Blackboard
• Other features: A/V mute, Auto source search, Automatic keystone correction, Built-in speaker, Customizable user logo, Digital zoom, JPEG Viewer, Long lamp life, Microphone input, OSD copy function
• Video Color Modes: Blackboard, Dynamic, Presentation, sRGB, Theatre
• Projector control: Crestron Integrated Partner, Extron IP Link, AMX Device Discovery, Control4 Simple Device Discovery Protocol

General

• Power consumption: 332 W (Normal), 231 W (Eco), 0.3 W (Standby)
• Supply Voltage: AC 100 V - 240 V, 50 Hz - 60 Hz
• Product dimensions: 309 x 282 x 90 mm
• Product weight: 3,1 kg
• Noise Level: Normal 38 dB(A), Economy 28 dB(A)
• Supported Temperature: Operation 5° C – 40° C, Storage -10° C – 60° C
• Supported Humidity: Operation 20% – 80%
• Included Software: Epson Projector Management, Web browser interface
• Options: Air filter, Ceiling mount, Connection and control box, Document camera, External speaker, Safety wire set, Soft carry case, Spare lamp, WP System - ELPWP20, Wireless LAN unit
• Loudspeaker: 16 Watt
• Room Type / Application: Huddle space / Portable, Meeting room / Classroom
• Positioning: Ceiling Mounted, Desktop
• Colour: White / Black

Other

• Warranty: 60 months Carry-in, Lamp: 60 months or 1.000 h (whichever comes first)
