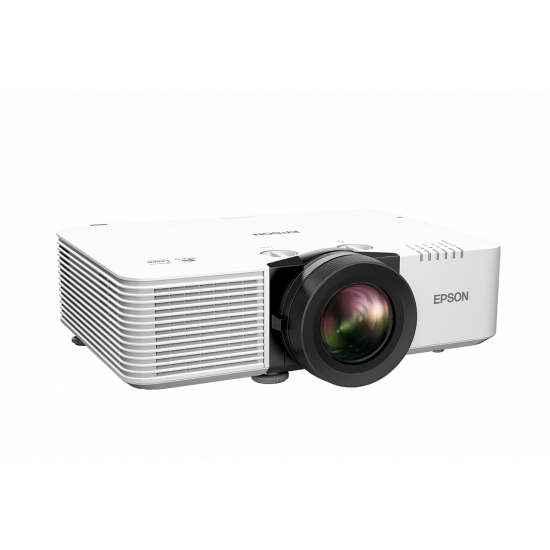

Epson | EB-L790SU - Projector

Epson | EB-L790SU - Projector

Designed for compact spaces, the EB-L790SU short-throw offers 7,000 lumens of bright WUXGA resolution, HDR and advanced installation features. It provides up to 30,000 hours of maintenance-free projection in Eco mode, lens shift, 1.7x zoom and 10W speakers. Ideal for professional applications with flexible control options via HDBaseT, LAN, and wireless.

Features

• Exceptional 7,000 lumens short throw projector

Ideal for a wide range of immersive displays. This compact, budget-friendly laser display delivers high-quality performance in any setting.

• Perfect for immersive spaces and simulation applications

Project scalable images up to 400", creating immersive, shadow- and glare-free visuals in compact spaces with a short throw ratio of 0.79–1.36:1 and 1.7x zoom.

• Effortless, flexible installation

A fixed centre lens with manual lens shift and advanced features like corner focus adjustment ensures easy setup and adaptability for any environment.

• Quiet operation

Delivers high-performance with at a low noise level of 26dB in Eco mode, ensuring a quiet and focused environment for immersive visual experiences.

• Making sustainable choices with Epson

Made from 19% recycled plastics, low power consumption, reduced packaging and a usage life of up to 30,000 hours in Eco mode (20,000 hours normal).

Technology:

• Projection System: 3LCD Technology, RGB liquid crystal shutter
• LCD Panel: 0,67 inch with C2 Fine


• Color Light Output: 7.000 Lumen – 4.900 Lumen (economy) In accordance with IDMS15.4
• White Light Output: 7.000 Lumen – 4.900 Lumen (economy) In accordance with ISO 21118:2020
• Resolution: WUXGA
• Aspect Ratio: 16:10
• Contrast Ratio: Over 5.000.000 : 1
• Light source: Laser
• Laser Light source: 20.000 hours Durability High, 30.000 hours Durability Eco
• Keystone Correction: Manual vertical ±30°, Manual horizontal ±30°
• Colour Video Processing: 10 Bits
• Colour Reproduction: Up to 1.07 billion colours

Optical

• Throw Ratio: 0,79 – 1,36:1
• Zoom: Manual, Factor 1 – 1,7
• Lens: Optical
• Lens Shift: Manual – Vertical ±50 %, horizontal ±20 %
• Screen Size: 60 inches – 400 inches
• Projection Distance Wide: 1 m – 7 m
• Projection Distance Tele: 1,8 m – 11,9 m
• Projection Distance Wide/Tele: 1,02 m – 11,89 m
• Projection Lens F Number: 1,7 – 2,1
• Projection Lens Focal Length: 11,6 mm – 19,9 mm
• Projection Lens Focus: Manual

Connectivity

• Interfaces: USB 2.0-A (2x), USB 2.0 Type B (Service Only), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, HDMI out, HDBaseT, Miracast, HDMI (HDCP 2.3) (2x), Jack plug out, Near Field Communication (NFC)
• Network Protocol: HTTPS, SNMP, ESC/VP.net, PJLink

Advanced Features

• Security: Kensington lock, Control panel lock, Padlock, Security cable hole, Wireless LAN unit lock, Password protection
• 2D Colour Modes: Dynamic, Natural, Cinema, Presentation, DICOM SIM
• Other features: 21:9 aspect ratio support, A/V mute, Auto Power On, Built-in speaker, Customizable user logo, Direct Power on/off, Document Camera Compatible, Edge Blending, Home Screen, JPEG Viewer, Network
