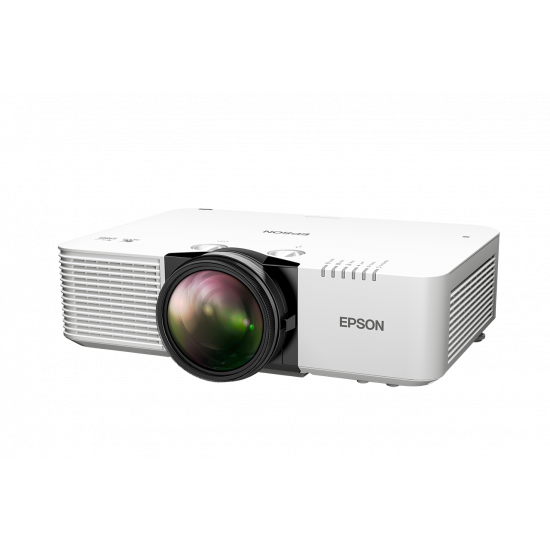

Epson | EB-L690SE - Projector

Epson | EB-L690SE - Projector

Designed for compact spaces, the EB-L690SE short-throw offers 6,000 lumens of bright WUXGA resolution with 4K Enhancement, HDR and advanced installation features. With up to 30,000 hours of maintenance-free projection in Eco mode, lens shift, 1.4x zoom and corner focus, it’s ideal for professional applications. Flexible control options are available via HDBaseT, LAN and more.

Features

• 6,000 lumens brightness with 4K Enhancement technology at 60Hz

Delivering sharp, bright images with up to 4.6 million pixels, this budget-friendly laser projector is perfect for large displays in professional spaces.

• Compact short-throw design for immersive display

Project scalable images up to 500" with a short throw ratio of 0.5–0.7:1 and 1.4x zoom, creating immersive, shadow- and glare-free visuals in compact spaces.

• Quiet operation

Delivers high-performance display at a low noise level of 36dB or 26dB in Eco mode, ensuring a quiet and focused environment for immersive visual experiences.

• Effortless, flexible installation

A fixed centre lens with manual lens shift and advanced features like corner focus adjustment ensures easy setup and adaptability for any environment.

• Advanced installation tools

Includes a range of free software tools and an optional external camera module for enhanced setup flexibility.

• Making sustainable choices with Epson

Made from 19% recycled plastics, low power consumption, reduced packaging and a usage life of up to 30,000 hours in Eco mode (20,000 hours normal).

Technology

• Projection System: 3LCD Technology, RGB liquid crystal shutter
• LCD Panel: 0,67 inch with C2 Fine


• Color Light Output: 6.000 Lumen – 4.200 Lumen (economy) In accordance with IDMS15.4
• White Light Output: 6.000 Lumen – 4.200 Lumen (economy) In accordance with ISO 21118:2020
• Resolution: WUXGA
• Resolution Enhancement: 4K enhancement
• Aspect Ratio: 16:10
• Contrast Ratio: Over 5.000.000 : 1
• Light source: Laser
• Laser Light source: 20.000 hours Durability High, 30.000 hours Durability Eco
• Keystone Correction: Manual vertical ±30°, Manual horizontal ±30°
• Colour Video Processing: 10 Bits
• Colour Reproduction: Up to 1.07 billion colours

Optical

• Throw Ratio: 0,50 – 0,70:1
• Zoom: Manual, Factor 1 – 1,4
• Lens: Optical
• Lens Shift: Manual – Vertical ±50 %, Horizontal ±20 %
• Screen Size: 100 inches – 500 inches
• Projection Distance Wide: 1,1 m – 5,6 m
• Projection Distance Tele: 1,5 m – 7,8 m
• Projection Distance Wide/Tele: 1,09 m – 7,84 m
• Projection Lens F Number: 1,8 – 2
• Projection Lens Focal Length: 7,54 mm – 10,55 mm
• Projection Lens Focus: Manual

Connectivity

• Interfaces: USB 2.0-A (2x), USB 2.0 Type B (Service Only), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n (optional), HDMI out, HDBaseT, Jack plug out, HDMI (HDCP 2.3) (2x), Near Field Communication (NFC)
• Network Protocol: HTTPS, SNMP, ESC/VP.net, PJLink

Advanced Features

• Security: Kensington lock, Control panel lock, Padlock, Security cable hole, Wireless LAN unit lock, Password protection
• 2D Colour Modes: Dynamic, Natural, Cinema, Presentation, DICOM SIM
• Other features: 21:9 aspect ratio support, 4K enhancement, A/V mute, Auto Power On, Customizable user logo, Direct Power on/off, Document Camera Compatible, Edge Blending, Home Screen, JPEG Viewer, Network projection, OSD copy function, PC Free, Point correction, Quick Corner, Schedule Function, Split-Screen-Function, Ultra-wide display (16:6), Web Control, Web Remote, iProjection App
• Video Color Modes: Cinema, Dynamic, Natural, Presentation, DICOM SIM, Multi Projection, BT709
• Projector control: via Crestron Integrated Partner, Extron XTP, AMX Device Discovery

General

• Power consumption: 362 Watt (Normal On-Mode), 250 Watt (Eco On-Mode), 415 Watt (Normal Peak-mode), 303 Watt (Eco Peak-Mode), 0,4 Watt (Energy saving standby)
• Supply Voltage: AC 100 V - 240 V, 50 Hz - 60 Hz
• Product dimensions: 440‎ x 368 x 151 mm (Width x Depth x Height)
• Product weight: 9,3 kg
• Noise Level: Normal 36 dB(A), Economy 26 dB(A)
• Supported Temperature: Storage -10° C – 60° C
• Supported Humidity: Operation 20% – 80%, Storage 10% – 90%
• Options: Air filter, Camera module, Ceiling mount, Document camera, External Speaker, HDBaseT Transmitter, Safety wire set, Suspension adapter, Wireless LAN unit
• Room Type / Application: Boardroom, Gaming, Large Meeting Room / Auditorium, Meeting room / Classroom, Projection Mapping, Rental / Staging, Signage / Retail, Sports, Visitor Attraction
• Positioning: Ceiling Mounted, Desktop
• Colour: White

Other

• Warranty: 36 months On-site service
