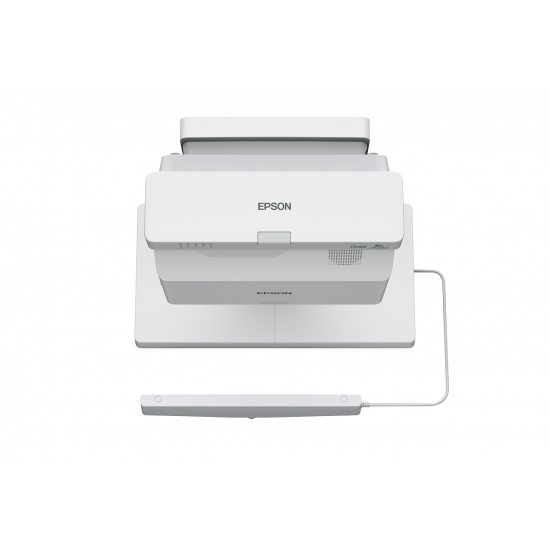

Epson | EB-770FI - Agile USTi laser display

Epson | EB-770FI - Agile USTi laser display

Whatever the size of class or meeting room, unrestricted and interactive learning sessions are possible with this bright, compact and affordable touch-display solution.

The EB-770Fi's bright image, scalable up to 100", is clearly visible from every angle and at a distance, and content can easiliy be shared or streamed directly from multiple devices for the ultimate collaborative experience.

Features

• Interactive FHD display for any room

49-100" UST display for unrestricted viewing (no shadows/reflections)

• Bright and energy efficient laser

4,100lm CLO with 3LCD technology for brighter colours at only 205W

• Effortless connectivity options

Auto-on, wired / wireless display with USB 2A output for smart sticks

• Simple to use and built to last

Virtually maintenance free with 5-year, 12,000hr warranty

• Document camera compatibility

Create and record a live, totally immersive lesson or presentation

Technology

• Projection System: 3LCD Technology, RGB liquid crystal shutter
• LCD Panel: 0,62 inch with C2 Fine


• Color Light Output: 4.100 Lumen - 2.800 Lumen (economy) In accordance with IDMS15.4
• White Light Output: 4.100 Lumen - 2.800 Lumen (economy) In accordance with ISO 21118:2020
• Resolution: 1080p
• Resolution Enhancement: Full HD
• Aspect Ratio: 16:9
• Contrast Ratio: Over 5.000.000 : 1
• Light source: Laser
• Laser Light source: 20.000 hours Durability High, 30.000 hours Durability Eco
• Keystone Correction: Manual vertical: ±3°, Manual horizontal ±3°
• Colour Video Processing: 10 Bits
• 2D Vertical Refresh Rate: 192 Hz - 240 Hz
• Colour Reproduction: Up to 1.07 billion colours

Optical

• Throw Ratio: 0,25 - 0,35:1
• Zoom: Digital, Factor: 1 - 1,35
• Lens: Optical
• Screen Size: 60 inches - 100 inches
• Projection Lens F Number: 1,6
• Projection Lens Focal Length: 3,7 mm
• Projection Lens Focus: Manual
• Offset: 5 : 1

Connectivity

• Interfaces: USB 2.0-A (2x), USB 2.0 Type B (Service Only) (2x), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, Wi-Fi Direct, VGA in (2x), VGA out, HDMI in (3x), Composite in, Miracast, Jack plug out, Jack plug in (3x), Microphone input, Sync. in, Sync. out, Multi-Touch interface (optional)
• Network Protocol: HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink

Advanced Features

• Security: Kensington lock, Control panel lock, Password lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection
• Other features: 21:9 aspect ratio support, A/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Digital zoom, Direct Power on/off, Document Camera Compatible, Dual Pen Support, Easy OSD pre-setting, Email notification, Finger-touch support, Home Screen, Horizontal and vertical keystone correction, Image Shift, Instant on/off, Interactive, Interactive Home Screen, Interactive OSD menu, Mail notification function, Microphone input, Network administration, Network projection, OSD copy function, PC Interactive, PC free annotation, Projection App for Chromebook, Quick Corner, Schedule Function, Screen Mirroring, Screen share, Split-Screen-Function, Ultra-wide display (16:6), Web Control, Web Remote, Whiteboard sharing function, Wireless LAN capable, iProjection App, iProjecton set-up by QR code
• Interactivity: Yes - pen and finger-touch
• Video Color Modes: Blackboard, Cinema, Dynamic, Presentation, sRGB, DICOM SIM
• Projector control: via Crestron Integrated Partner, Crestron RoomView, Extron IP Link, AMX Device Discovery, Control4 Simple Device Discovery Protocol

General

• Power consumption: 197 Watt (Normal On-Mode), 141 Watt (Eco On-Mode), 263 Watt (Normal Peak-mode), 199 Watt (Eco Peak-Mode), 0,5 Watt (Energy saving standby)
• Heat Dissipation: 895 BTU/hour (max)
• Supply Voltage: AC 100 V - 240 V, 50 Hz - 60 Hz
• Product dimensions: 356‎ x 395 x 133 mm (Width x Depth x Height)
• Product weight: 6 kg
• Noise Level: Normal: 37 dB (A) - Economy: 27 dB (A)
• Supported Temperature: Storage -10° C - 60° C
• Supported Humidity: Operation 20% - 80%, Storage 10% - 90%
• If the projector is suspended from a ceiling or wall mount and installed in an environment with heavy oil smoke or places where oils or chemicals are volatilized, places where a lot of smoke or bubbles are used for event staging, or where aroma oils are frequently burned, it can make certain parts of our products susceptible to a material degradation which over time could break and cause the projector to drop from the ceiling.
• If you are concerned about the environment in which your projector is installed, or if you have any other questions, please contact our support department and they can provide additional assistance.
• Included Software: Easy Interactive Tools, EasyMP Multi PC Projection, Epson Projector Management
• Options: Air filter, Ceiling mount, Connection and control box, External Speaker, Finger Touch Unit, Finger Touch Unit Wall Bracket, Pen tip(Felt), Pen tip(Teflon), Safety wire set, Visualiser camera, WP System - ELPWP10, Wall mount, Wireless LAN unit, Wireless transmitter - ELPWT01
• Loudspeaker: 16 Watt
• Room Type / Application: Meeting room / Classroom
• Positioning: Ceiling Mounted, Desktop, Wall Mounted
• Colour: White
• TCO Certified: For further information relating to TCO Certified please visit https://tcocertified.com/files/certification/Information-document-for-end-users.pdf

Other

• Warranty: 60 months Carry in or 12.000 h
