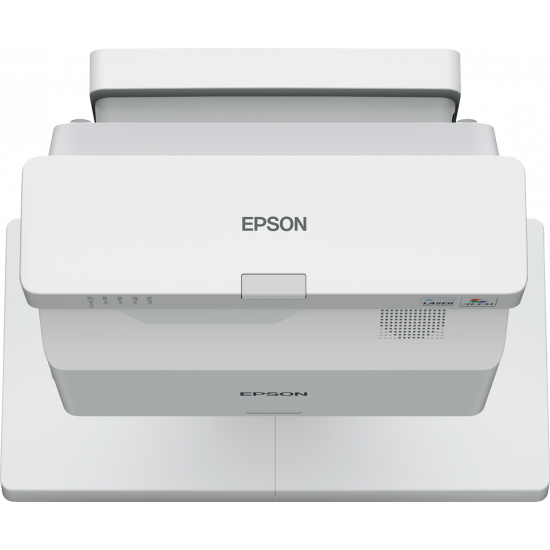

Epson | EB-770F - Agile UST laser display

Epson | EB-770F - Agile UST laser display

Whatever the size of class or meeting room, unrestricted and immersive presentations are possible with this bright, clear, compact and affordable display solution.

The EB-770F's bright, 1080p image, scalable up to 150", is clearly visible from every angle and at a distance, and content can easiliy be shared or streamed directly from multiple devices for the ultimate collaborative experience.

Features

• Scalable FHD display for any room

49-150" UST display for unrestricted viewing (no shadows/reflections)

• Bright and energy efficient laser

4,100lm CLO with 3LCD technology for brighter colours at only 205W

• Effortless connectivity options

Auto-on, wired / wireless display with USB 2A output for smart sticks

• Simple to use and built to last

Virtually maintenance free with 5-year, 12,000hr warranty

• Document camera compatibility

Create and record a live, totally immersive lesson or presentation

Technology

• Projection System: 3LCD Technology, RGB liquid crystal shutter
• LCD Panel: 0,62 inch with C2 Fine


• Color Light Output: 4.100 Lumen - 2.800 Lumen (economy) In accordance with IDMS15.4
• White Light Output: 4.100 Lumen - 2.800 Lumen (economy) In accordance with ISO 21118:2020
• Resolution: 1080p
• Resolution Enhancement: Full HD
• Aspect Ratio: 16:9
• Contrast Ratio: Over 5.000.000 : 1
• Light source: Laser
• Laser Light source: 20.000 hours Durability High, 30.000 hours Durability Eco
• Keystone Correction: Manual vertical: ±3 °, Manual horizontal ±3 °
• Colour Video Processing: 10 Bits
• 2D Vertical Refresh Rate: 192 Hz - 240 Hz
• Colour Reproduction: Up to 1.07 billion colours

Optical

• Throw Ratio: 0,25 - 0,35:1
• Zoom: Digital, Factor: 1 - 1,35
• Lens: Optical
• Screen Size: 60 inches - 150 inches
• Projection Lens F Number: 1,6
• Projection Lens Focal Length: 3,7 mm
• Projection Lens Focus: Manual
• Offset: 5 : 1

Connectivity

• Interfaces: USB 2.0-A (2x), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, VGA in (2x), VGA out, HDMI in (3x), Composite in, Miracast, Jack plug out, Jack plug in (3x), USB 2.0 Type B (Service Only), Wi-Fi Direct, Microphone input
• Epson iProjection App: Ad-Hoc / Infrastructure
• Network Protocol: HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink

Advanced Features

• Security: Kensington lock, Control panel lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection
• Other features: 21:9 aspect ratio support, A/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Customizable user logo, Digital zoom, Direct Power on/off, Document Camera Compatible, Edge Blending, Email notification, Home Screen, Horizontal and vertical keystone correction, Image Shift, JPEG Viewer, Long light source life, Network projection, OSD copy function, PC Free, Point correction, Power on button, Quick Corner, Schedule Function, Screen Mirroring, Split-Screen-Function, Ultra-wide display (16:6), Web Control, Web Remote, Wireless LAN capable, iProjection App
• Video Color Modes: Blackboard, Cinema, Dynamic, Presentation, sRGB, DICOM SIM, Multi Projection
• Projector control via: Crestron Integrated Partner, Crestron RoomView, Extron IP Link, AMX Device Discovery, Control4 Simple Device Discovery Protocol

General

• Power consumption: 197 Watt (Normal On-Mode), 141 Watt (Eco On-Mode), 263 Watt (Normal Peak-mode), 199 Watt (Eco Peak-Mode), 0,5 Watt (Energy saving standby)
• Heat Dissipation: 895 BTU/hour (max)
• Supply Voltage: AC 100 V - 240 V, 50 Hz - 60 Hz
• Product dimensions: 356 x 395 x 133 mm (Width x Depth x Height)
• Product weight: 5,9 kg
• Noise Level: Normal: 37 dB (A) - Economy: 27 dB (A)
• Supported Temperature: Storage -10° C - 60° C
• Supported Humidity: Operation 20% - 80%, Storage 10% - 90%
• Included Software: Epson Creative Projection, EasyMP Multi PC Projection, Epson Projector Content Manager, Epson Projector Management
• Options: Air filter, Ceiling mount, Connection and control box, External Speaker, Safety wire set, Visualiser camera, WP System - ELPWP10, Wall mount, Wireless LAN unit, Wireless transmitter - ELPWT01
• Loudspeaker: 16 Watt
• Room Type / Application: Boardroom, Home Office, Meeting room / Classroom, Signage / Retail, Visitor Attraction
• Positioning: Ceiling Mounted, Desktop, Table Mounted, Wall Mounted
• Colour: White
• TCO Certified: For further information relating to TCO Certified please visit here

Other

• Warranty: 60 months Carry in or 12.000 h
