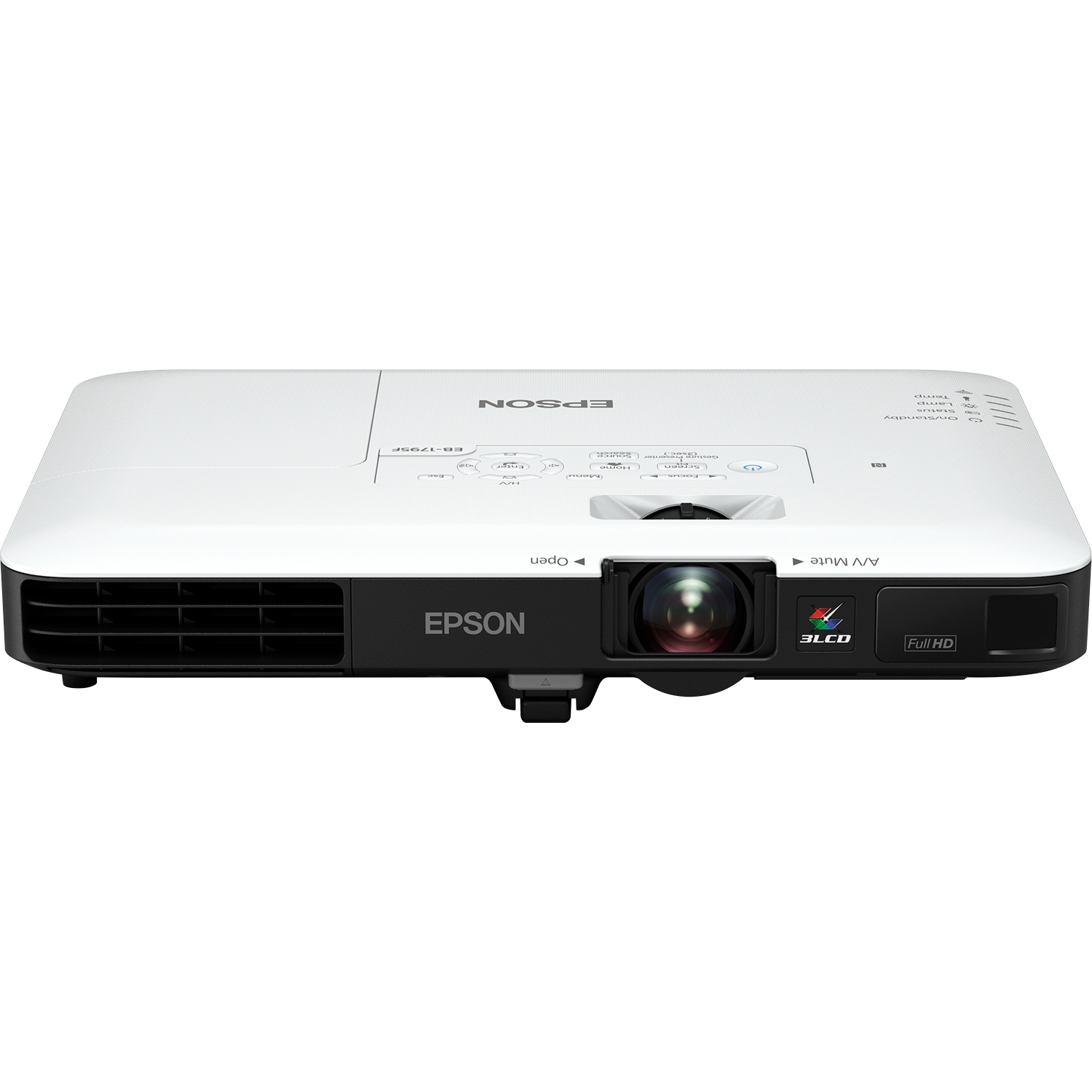

Epson | EB-1795F - Ultra-mobile business projector

Epson | EB-1795F - Ultra-mobile business projector

Perfect for people who are constantly on the move and frequently make presentations at customer sites, this ultra-mobile projector offers a winning combination of ultra-slim lightweight design, exceptional image quality and advanced functionality. With traditional wired and built-in wireless connectivity, time-saving set-up plus a range of advanced features, it's the ideal tool for polished presentations.

Features

• Exceptional image quality

Equally high white and colour light output of 3,200 lumens

• Gesture Presenter

Advance through a presentation directly with your hands

• Horizontal and Vertical Keystone correction

Slides and images can be aligned and distortion corrected

• Wireless connectivity

NFC makes it easy to connect to the projector wirelessly

• Lightweight & ultra-slim form factor

Fits in the same bag as a laptop computer

Technology

• Projection System: 3LCD Technology, RGB liquid crystal shutter
• LCD Panel: 0,59 inch with C2 Fine


• Color Light Output: 3.200 Lumen - 1.900 Lumen (economy) In accordance with IDMS15.4
• White Light Output: 3.200 Lumen - 1.900 Lumen (economy) In accordance with ISO 21118:2020
• Resolution: 1080p
• Resolution Enhancement: Full HD
• Aspect Ratio: 16:9
• On-Screen Pixel Count: 2,073,600
• Contrast Ratio: 10.000 : 1
• Light source: Lamp
• Lamp: 214 W, 4.000 h durability, 7.000 h durability (economy mode)
• Keystone Correction: Auto vertical: ±30 °, Auto horizontal ±20 °
• Colour Video Processing: 10 Bits
• 2D Vertical Refresh Rate: 100 Hz - 120 Hz
• Colour Reproduction: Up to 1.07 billion colours

Optical

• Throw Ratio: 1,02 - 1,23:1
• Zoom: Manual, Factor: 1 - 1,2
• Screen Size: 30 inches - 300 inches
• Projection Distance Wide: 0,7 m - 6,8 m
• Projection Distance Tele: 0,8 m - 8,2 m
• Projection Distance Wide/Tele: 1,35 m - 1,62 m (60 inch screen)
• Projection Lens F Number: 1,58 - 1,7
• Projection Lens Focal Length: 13,52 mm - 16,22 mm
• Projection Lens Focus: Motorized
• Offset: 10 : 1

Connectivity

• USB Display Function: 3 in 1: Image / Mouse / Sound
• Interfaces: USB 2.0-A, USB 2.0, VGA in, HDMI in, Composite in, Jack plug in, Miracast, MHL, Near Field Communication (NFC), Wireless LAN IEEE 802.11b/g/n, Wireless LAN b/g/g 2.5GHz
• Epson iProjection App: Ad-Hoc / Infrastructure

Advanced Features

• Security: Kensington lock, Wireless LAN security, Password protection
• 2D Colour Modes: Dynamic, Cinema, Presentation, sRGB, Blackboard, DICOM SIM
• Other features: AV Mute Slide, Built-in speaker, Document Camera Compatible, Fit to Screen, Gesture Presenter, Home Screen, Instant on/off, JPEG Viewer, Long lamp life, MHL audio/video interface, PC Free, Projection App for Chromebook, Quick Corner, Screen Mirroring, Split-Screen-Function, Wireless LAN capable, iProjection App
• Video Color Modes: Blackboard, Cinema, Dynamic, Presentation, sRGB, DICOM SIM

General

• Power consumption: 268 Watt (Normal On-Mode), 188 Watt (Eco On-Mode), 295 Watt (Normal Peak-mode), 208 Watt (Eco Peak-Mode), 0,34 Watt (Energy saving standby)
• Supply Voltage: AC 100 V - 240 V, 50 Hz - 60 Hz
• Product dimensions: 292‎ x 213 x 44 mm (Width x Depth x Height)
• Product weight: 1,8 kg
• Noise Level: Normal: 39 dB (A) - Economy: 30 dB (A)
• Supported Temperature: Operation 5° C - 40° C, Storage -10° C - 60° C
• Supported Humidity: Operation 20% - 80%, Storage 10% - 90%
• If the projector is suspended from a ceiling or wall mount and installed in an environment with heavy oil smoke or places where oils or chemicals are volatilized, places where a lot of smoke or bubbles are used for event staging, or where aroma oils are frequently burned, it can make certain parts of our products susceptible to a material degradation which over time could break and cause the projector to drop from the ceiling.
• If you are concerned about the environment in which your projector is installed, or if you have any other questions, please contact our support department and they can provide additional assistance.
• Included Software: EasyMP Multi PC Projection
• Options: Air filter, Ceiling mount, Document camera, Setting plate, WP System - ELPWP20, Wireless transmitter - ELPWT01
• Loudspeaker: 1 Watt
• Room Type / Application: Boardroom, Huddle space / Portable, Large Meeting Room / Auditorium
• Positioning: Ceiling Mounted, Desktop
• Colour: White / Black

Other

• Warranty: 60 months Carry in, Lamp: 60 months or 1.000 h (whichever comes first)
