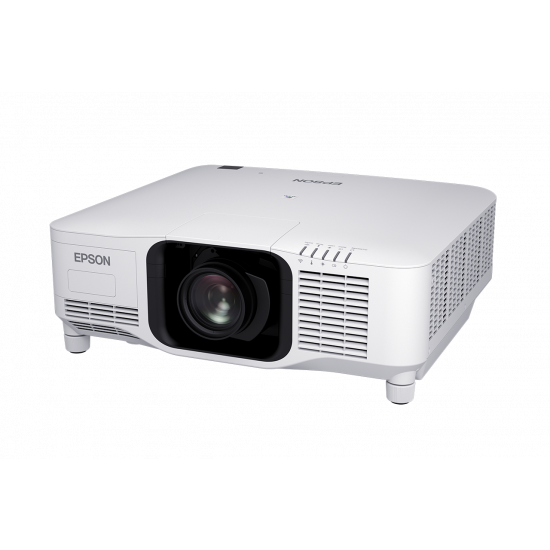

Epson | EB-PQ2216W - 16000 lumens 4K projector

Epson | EB-PQ2216W - 16000 lumens 4K projector

Features

• Patented 4K and imaging technology

Outstanding 4K image quality delivers superb immersivity.

• Ultra-compact and lightweight

Small, powerful 16,000lm 4K projector.

• Cross-platform lens compatibility

Lets you build the optimal projection solution for every requirement.

• Fit-and-forget reliability

Filter-free design and IP5X dust resistance.

• Reduced environmental impact

Energy-efficient with reduced requirements for packaging and transport.

Technology

• Projection System: 3LCD Technology, RGB liquid crystal shutter
• LCD Panel: 1,04 inch with C2 Fine


• Color Light Output: 16.000 Lumen- 11.200 Lumen (economy) In accordance with IDMS15.4
• White Light Output: 16.000 Lumen - 11.200 Lumen (economy) In accordance with ISO 21118:2020
• Portrait Colour Light Output: 16.000 lm
• Portrait White Light Output: 16.000 lm
• Resolution: 4K 3840 x 2160, 8.3m pixels, 16:9
• Aspect Ratio: 16:9
• Contrast Ratio: Over 5.000.000 : 1
• Native Contrast: 3.000 : 1
• Light source: Laser
• Laser Light source: 20.000 hours Durability High, 30.000 hours Durability Eco
• Keystone Correction: Manual vertical: ±45 °, Manual horizontal ±30 °
• Colour Video Processing: 10 Bits
• Colour Reproduction: Up to 1.07 billion colours
• HDR support: HDR10, HLG

Optical

• Throw Ratio: 0,34 - 7,16:1
• Zoom: Motorized
• Lens: Optical
• Lens Shift: varies by lens
• Screen Size: varies by lens
• Projection Distance Wide: varies by lens
• Projection Distance Tele: varies by lens
• Projection Distance Wide/Tele: varies by lens
• Projection Lens F Number: varies by lens
• Projection Lens Focal Length: varies by lens
• Projection Lens Focus: Motorized
• Offset: varies by lens
• Interchangeable Lens: Yes
• Standard Lens: Not included
• Mechanical shutter: Yes

Connectivity

• Interfaces: USB 2.0-A (2x), USB 2.0 Type B (Service Only), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n (optional), HDMI in (2x), HDMI out, HDBaseT, Jack plug out, Near Field Communication (NFC), USB content playback, Remote, 12G SDI Input, 12G SDI Output
• Network Protocol: HTTPS, IPv6, SNMP, ESC/VP.net, PJLink

Advanced Features

• Security: Kensington lock, Control panel lock, Padlock, Wireless LAN unit lock, Wireless LAN security, Password protection
• Other features: 21:9 aspect ratio support, A/V mute, Auto Power On, Auto source search, Direct Power on/off, Edge Blending, Frame interpolation, Freeze image, Horizontal and vertical keystone correction, Lens position memory, Long light source life, OSD copy function, Point correction, Quick Corner, Schedule Function, Web Control, Wireless LAN capable, iProjection App
• Video Color Modes: Cinema, Dynamic, Natural, Presentation, DICOM SIM, Multi Projection, BT709
• Projector control via: Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery
• Sealed Light Source Module: Yes, IP5X rated
• Sealed Optical Engine: Yes, IP5X rated

General

• Power consumption: 1.003 Watt (Normal On-Mode), 1.114 Watt (Normal Peak-mode), 784 Watt (Eco Peak-Mode), 0,5 Watt (Energy saving standby)
• Heat Dissipation: 3.788 BTU/hour (max)
• Supply Voltage: AC 100 V - 240 V, 50 Hz - 60 Hz
• Product dimensions: 586‎ x 492 x 218 mm (Width x Depth x Height)
• Product weight: 29,2 kg
• Noise Level: Normal: 44 dB (A) - Economy: 36 dB (A)
• Supported Temperature: Storage -10° C - 60° C
• Supported Humidity: Operation 20% - 80%, Storage 10% - 90%
• Included Software: Epson Creative Projection, Epson Projector Config Tool, Epson Projector Content Manager, Epson Projector Management, Epson Projector Professional Tool
• Options: Camera module, Ceiling mount, Wireless LAN unit
• Room Type / Application: Boardroom, Large Meeting Room / Auditorium, Meeting room / Classroom, Projection Mapping, Rental / Staging, Signage / Retail, Visitor Attraction
• Positioning: Ceiling Mounted, Desktop, Floor, Flying Frame, Table Mounted, Wall Mounted
• Colour: White
• Other: If the projector is suspended from a ceiling or wall mount and installed in an environment with heavy oil smoke or places where oils or chemicals are volatilized, places where a lot of smoke or bubbles are used for event staging, or where aroma oils are frequently burned, it can make certain parts of our products susceptible to a material degradation which over time could break and cause the projector to drop from the ceiling.

  If you are concerned about the environment in which your projector is installed, or if you have any other questions, please contact our support department and they can provide additional assistance.

Other

• Warranty: 36 months Carry in
