BenQ - LU9245W - Large Laser Projector BenQ - LU9245W - Large Laser Projector BenQ - LU9245W - Large Laser Projector
BenQ - LU9245W - Large Laser Projector

BenQ - LU9245W - Large Laser Projector

€ 6.519,00 Excl. BTW
Ca. 3 weken*
Art. code

BenQ - LU9245W - Large Laser Projector

BlueCore Laser Projectors from the World’s No.1 DLP Brand
The BenQ LU9245 BlueCore Laser Projector is the brightest choice for large venue applications, featuring superior 7,000 ANSI-lumen brightness and 3,000,000:1 contrast ratio for brilliant viewing experiences even under bright ambient lighting. The BlueCore laser engine also delivers superior color performance through a dual color wheel system, support for 360° and portrait installation, and 24/7 operation with dramatically improved durability for diverse application opportunities. The LU9245 is compatible with a selection of lenses for a wide range of installation possibilities, captivating audiences at museums, entertainment venues and large corporate spaces.

Revolutionary BlueCore Laser Technology
The world’s No.1 DLP brand BenQ expands its full line of innovative BlueCore laser projectors with LU9245, for fixed lens installation, enabling powerful visual communication in museums or venues for simulated trainings.

Dual Colour Wheels for Optimal Chromatic Performance
LU9245 powerful BlueCore laser projection utilises a dual colour wheel system to produce unparalleled colour performance that achieves a 96% Rec.709 colour coverage. By increasing colour ratios and the purity of RGBY colour, LU9245 dramatically enhances colour saturation to ensure superior presentation quality.

HDMI 2.0 for Supreme Image Quality
To help users enjoy 4K content, LU9245 and HDBaseT both come with HDMI 2.0 ports which are compatible with 4K signal. Users can now effortlessly project 4K content with much less friction and enjoy greater brightness and contrast range than SDR.

Dynamic Dimming
Analyzes scene brightness levels to optimize light output and create high contrast to bring out subtle details in dark scenes and represent the best-in-class dynamic image.

Gamma Selection
Select the right Gamma for your solution to optimise image quality between input source and picture brightness. LU9245 also provides advanced BenQ and DICOM Gamma curve to satisfy your various needs.

24/7 Operation
BenQ laser light source supports continuous 24/7 operation and is suitable for public display applications in museums and exhibitions. Users can choose from three different light source modes to optimize energy consumption and they can run up to 70,000 hours under Eco Mode.


  • Brightness (ANSI lumens): 7000
  • Native Resolution: 4K UHD (3840×2160)
  • Native Aspect Ratio: 16:10
  • Contrast Ratio (FOFO): 3,000,000:1
  • Display Color: 30-bit (1.07 billion colors)
  • Light Source: Laser
  • Light Source Life: a. Normal 20000 hrs, b. ECO 38000 hrs, d. Dimming 75000 hrs


  • Throw Ratio: (Optional Lens)Wide Fix: 0.77Wide Zoom: 1.1~1.3Standard: 1.54~1.93Semi Long: 1.93~2.9Long Zoom1: 3.0~5.0 Short Throw:0.77~1.1 SemiThrow:1.25~1.6
  • Zoom Ratio: (Optional Lens) Long Zoom 1: 1.67x, (Optional Lens) Semi Long: 1.5x, (Optional Lens) Semi Throw: 1.28x, (Optional Lens) Short Throw: 1.42x, (Optional Lens) Standard: 1.25x, (Optional Lens) Wide Fix: Fixed, (Optional Lens) Wide Zoom: 1.18x
  • Lens: (Optional Lens)Wide Fix: F=2.5Wide Zoom: F-2.05-2.27Standard: F=2.46-2.56 Semi Long: F=2.5-3.1Long Zoom1: F=2.2-2.5 Short Throw:F=2.05-2.27 Semi Throw: F=2.00-2.24
  • Projection Offset (Full-Height): 0%
  • Keystone Adjustment: 2D, Vertical ± 30 degrees; Horizontal ± 30 degrees
  • Lens Shift Vertical: (Optional Lens)Fixed Short Throw: V (-15%~55%+) / H (+- 5%)Standard Short Throw:V (-15%~55%+) / H (+- 5%)Standard Lens:V (-15%~55%+) / H (+- 5%)Long Throw:V (-15%~55%+) / H (+- 5%)Super Long Throw:V (-15%~55%+) / H (+- 5%) Short Throw:V (-15%~55%+) / H (+- 5%) Semi Throw: V (-15%~55%+) / H (+- 5%)


  • Rec. 709 Coverage: 96%
  • Picture Modes: 3D, Bright, Cinema, DICOM SIM, HDR, HLG, Presentation, sRGB, User 1, User 2, Vivid


  • Input Lag: 33.4 ms (1080p@60Hz)
  • Resolution Support: VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking
  • Horizontal Frequency: 15K~102KHz
  • Vertical Scan Rate: 23~120Hz

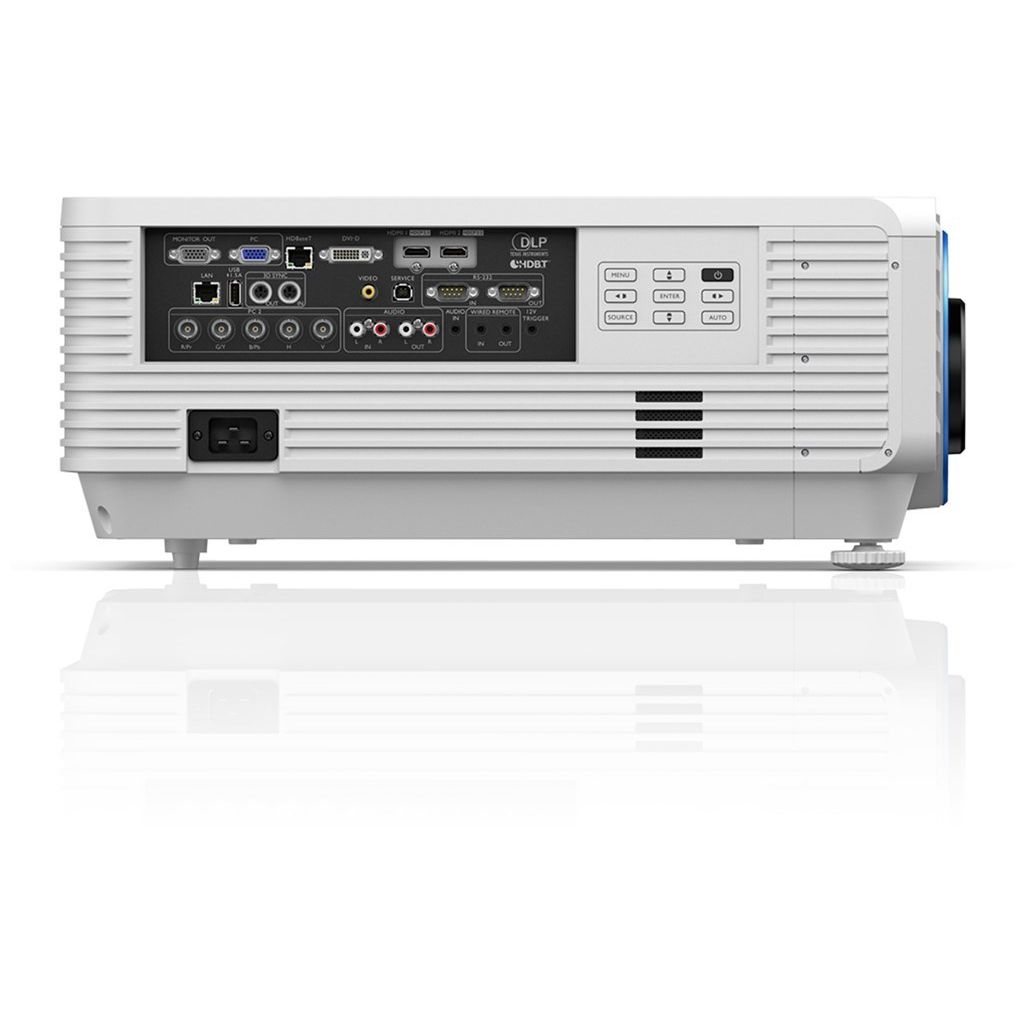

I/O Interface

  • PC in (D-sub 15pin): (x1), PC in-2 (shared with component video 5BNC)
  • Monitor out (D-sub 15pin): (x1)
  • Composite Video in (RCA): (x1)
  • Component Video in (5BNC): 1
  • HDMI in: (x2), HDMI-1 (2.0a/HDCP2.2), HDMI-2 (2.0a/HDCP2.2)
  • HDBaseT (RJ45): (x1), Control/Video/Audio
  • 3D Sync in: (x1)
  • 3D Sync out: (x1)
  • USB Type A: (x1), USB Type A-1 (2.0/Power Supply1.5A)
  • USB Type B: USB Type B-1(service)
  • RS232 in (DB-9pin): (x1)
  • RS232 out (DB-9pin): (x1)
  • Wired Remote in (3.5mm Mini Jack): (x1)
  • Wired Remote out (3.5mm Mini Jack): (x1)
  • DC 12V Trigger (3.5mm Jack): (x1)


  • Speaker: (x2), 10W
  • Audio in (3.5mm Mini Jack): (x1)


  • Operating Temperature: 0~40℃
  • Power Supply: AC 100 to 240 V, 50/60 Hz
  • Typical Power Consumption (110V): 600
  • Stand-by Power Consumption: <0.5W
  • Network Stand-by Power Consumption: <2W
  • Acoustic Noise (Typ./Eco.)(dB): 36/34


  • Remote Control w/ Battery: RCA024
  • Power Cord (by region): x1 (1.8M)
  • VGA(D-sub 15pin) Cable: (Standard), 1 (1.8m)
  • 3D Glasses: (Optional), DGD5
  • Installation Guide: Yes
  • Warranty Card (by region): Yes
  • Anti-dust Filter: (Standard), All SKU
  • Universal Ceiling Mount: (Optional), CM00G6

Dimension & Weight

  • Dimensions (WxHxD) (mm): 525 x216 x470
  • Net Weight (kg): 25

Projection System

  • Projection System: DLP
Meer informatie
Conditie Nieuw
Merk BenQ
