Aurora - DXE-CAT-TX2-4K

Aurora - DXE-CAT-TX2-4K - HDBaseT™ transmitter box

The DXE-CAT-TX2 is part of Aurora’s expanding Digital Xtreme Series, and the first of the new HDBaseT CAT extenders. The DXE-CAT-TX2’s powerful design provides usability and features not found anywhere else. Single-sided connections for LAN, HDMI, Control and Power provide a cleaner wiring and rack mounting solution. The Patents Pending design allows the system to be powered via POE or AC adapter from either side! With a single CAT 5e/6/7 cable, the DXE-CAT-TX2 can go up to 330ft 1080p 60Hz 48bit color depth with bi-directional RS-232, IR, & LAN (up to 600ft with CAT 6a shielded cable at 24bit color depth).

• Transmit HDMI up to 1080p 60Hz 48bit 330ft over one CAT 5e/6/7 cable
• Transmit HDMI up to 1080p 60Hz 24bit 500ft over one CAT 6 cable
• Transmit HDMI up to 1080p 60Hz 24bit 600ft over one CAT 6a shielded cable
• HDCP Compliant

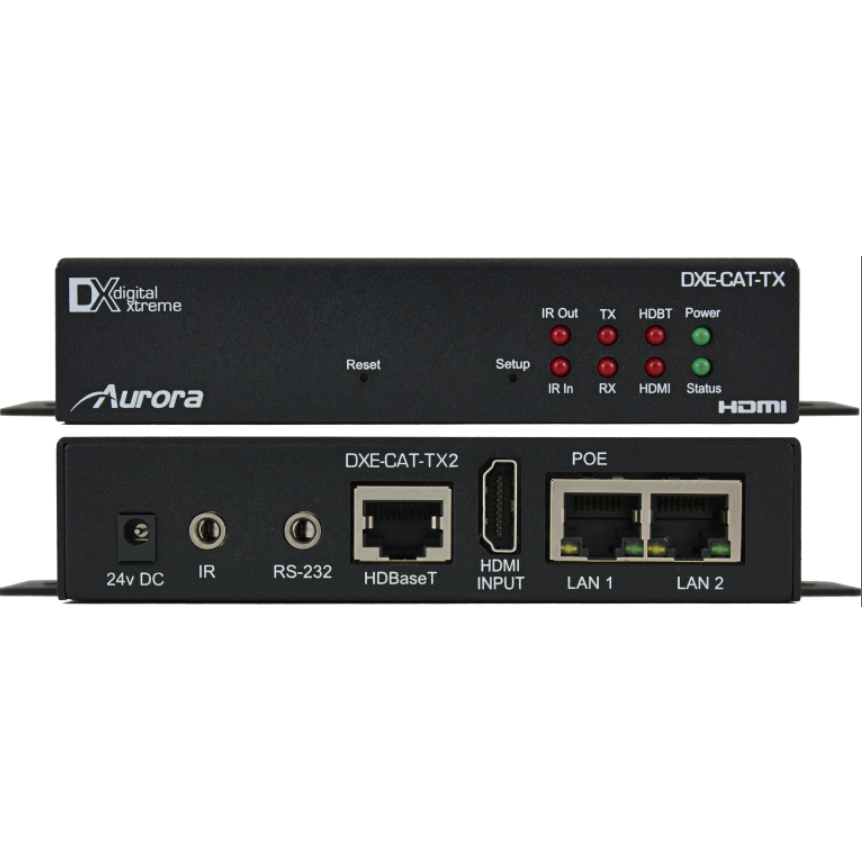

• All connectors on one side for easier installation
• Bi-directional RS-232 & IR & LAN
• Power both units from TX or RX side with wall power supply (HDBaseT POE)
• LAN POE (Power-Over-Ethernet) can power both TX & RX without wall supplies (Patents Pending)

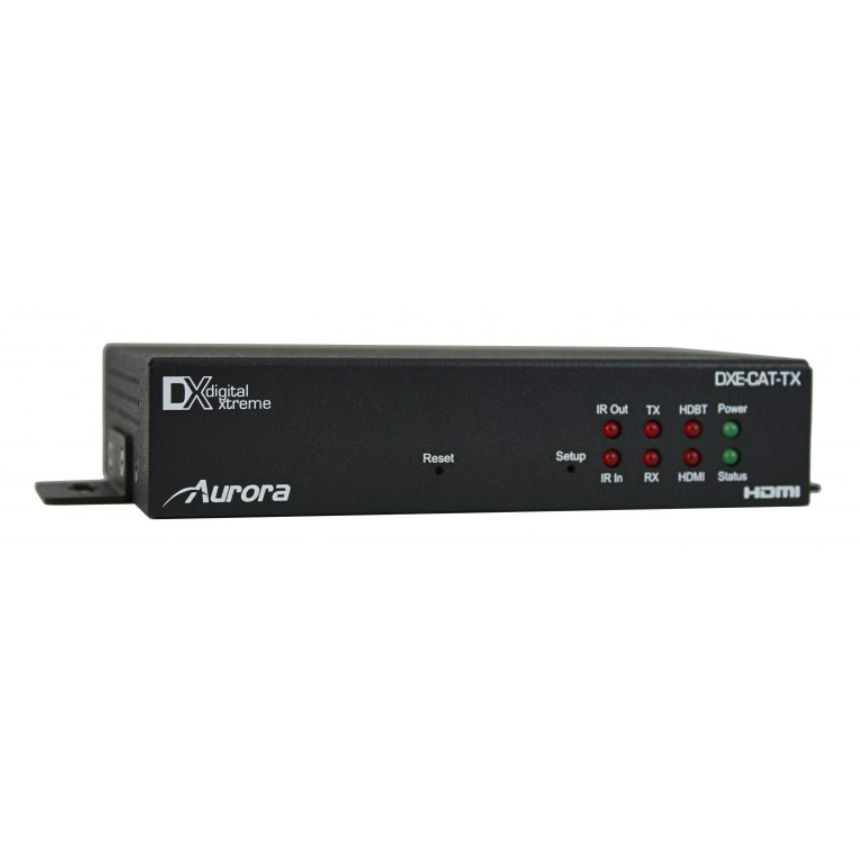

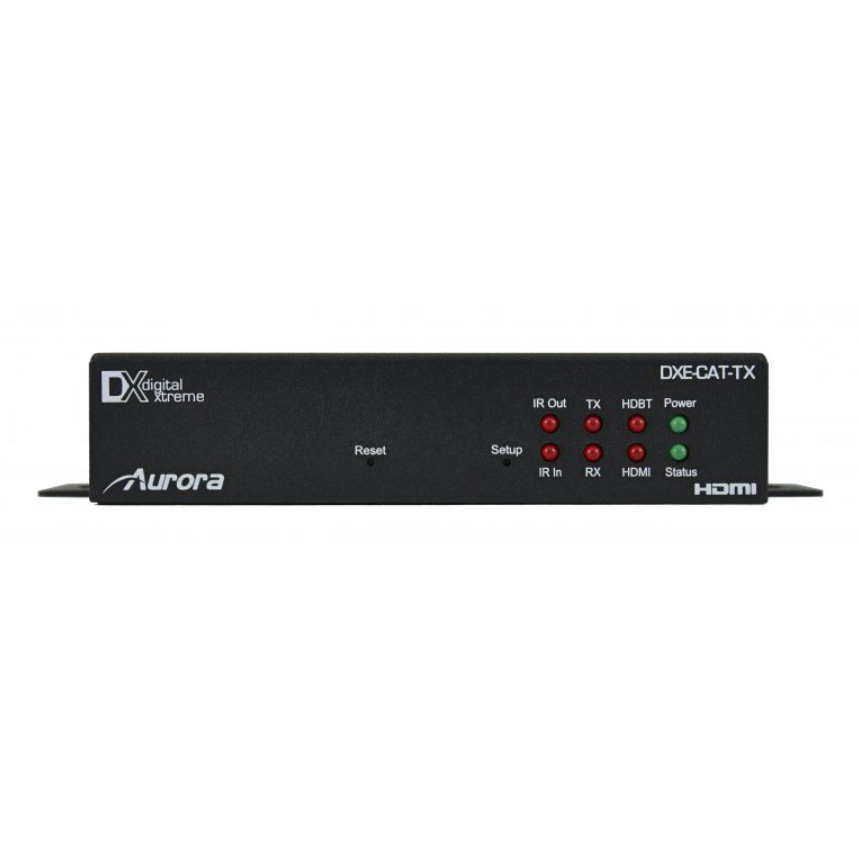

• Status LED for all connections on front
• Various mounting options
• Comes in a variety of models for different features & cost savings

Video

• HDMI Compliance: HDMI 3D
• HDCP Compliant: Yes
• Distance: 330ft over one CAT 5e/6/7 cable (1080p 60Hz 48bit),500ft over one CAT 6 cable (1080p 60Hz 24bit),600ft over one CAT 6a cable (1080p 60Hz 24bit)
• Max Resolution: 4K 30Hz (340MHz)
• Color Depth: 48bit

Connectors

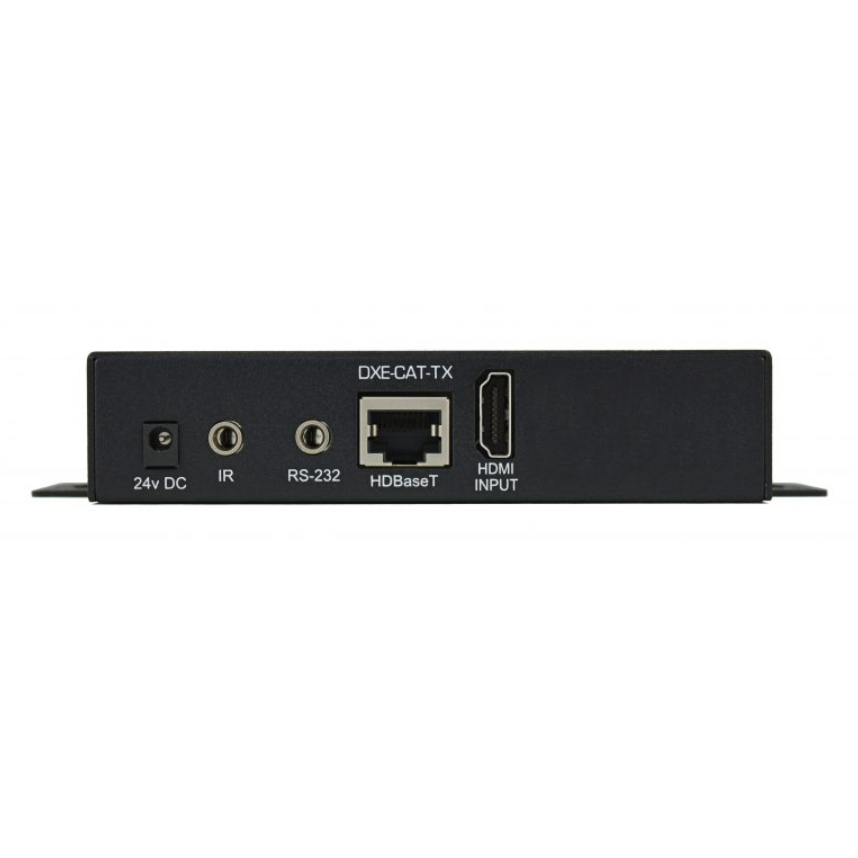

• TX Connectors: (1) HDMI in, (2) RJ-45 out, (1) HDBaseT, (1) RS-232 3.5mm TRS, (1) IR 3.5mm TRS
• RX Connectors: (1) HDMI in, (2) RJ-45 out, (1) HDBaseT, (1) RS-232 3.5mm TRS, (1) IR 3.5mm TRS

Mechanical

• Dimensions: 4.7" x 3.03" x 1.1" [120 x 77 x 28mm]
• Weight: 0.87lbs [395g]
• Mounting: Wall mounting tabs (included)
• Rack mount bracket (included)

Power

• Power Supply: 24V 0.65A DC 5Watts
• Environmental: Operation Temperature
  32~104°F [0~40°C]
• Storage Temperature: -4~140°F [-20~60°C]
• Relative Humidity: 20~90% RH [no condensation]
