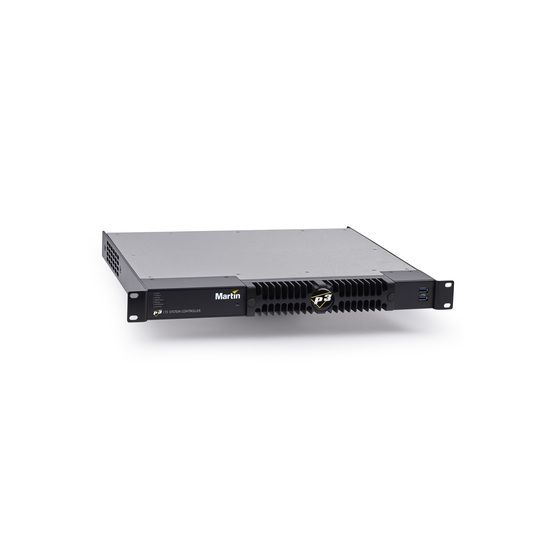

The Martin P3-175 System Controller supports video input up to Full HD (1920x1080) and allows fixtures to be mapped onto the visual canvas, patched, addressed, and configured without having to directly access the fixtures. Martin fixtures can be easily controlled from a lighting desk, video source or a mix of both. They integrate with third-party software by importing and exporting industry-standard MVR files, eliminating duplicate actions and enabling designs to be easily shared.

Uniquely creative looks can be created for each application, whether using video content, traditional DMX controls, Art-Net / sACN PixelMapping, or a mix of control methods. The entire system is fully synchronized, ensuring all elements work cohesively without visible latency. They support Full HD video input over HDMI and NDI inputs, outputting up to 520,000 pixels to up to 2,000 fixtures. Real-time previews show you how DMX controls and video will be rendered on the fixtures.

Features

• Full HD video input compatible (HDMI & NDI)
• HDMI input resolution up to 1920 x 1080
• NDI input resolution up to 1920 x 1080
• 256 universes of Art-Net / sACN input
• Outputs up to 520,000 pixels on 2,000 fixtures
• 1U rackmount
• Map a mix of Martin fixtures onto one visual canvas
• Patch, address, and configure Martin fixtures, without having to directly address and configure each fixture
• Export mapping and patch to third-party lighting controllers, CAD programs and visualizers via MVR
• Import mapping and patch from third-party lighting controllers, CAD programs and visualizers via MVR
• Export mapping mask to third-party media servers
• Provide real-time feedback and monitoring of Martin fixtures
• Provide remote monitoring of the P3 System Controller and all connected fixtures without physically being
• onsite

Physical

• Width: 482.6 mm (19.0 in.)
• Height: 44.45 mm (1.75 in.) (rackmount 1U)
• Depth: 343.0 mm (13.5 in.)
• Weight: 3.5 kg (7.7 lbs.)

Control/User Interface

• User Interface: Full HD (1920x1080) or better monitor (VGA, DVI, HDMI or DP), USB keyboard & USB mouse
• Device Status: Status indication LEDs

HDMI Video Input

• Standard: HDMI 1.4a
• Resolution: Supporting all standard resolutions up to 1920x1080 (Full HD)
• Framerate: Supporting frame rates up to 75fps
• Scan: Progressive & Interlaced
• EDID: Customizable via user interface
• Colour Depth: 8/10/12-bit
• Colour Sampling: RGB 4:4:4, YCbCr 4:4:4 & YCbCr 4:2:2
• Colour Formats: RGB, YCbCr 601, YCbCr 709 & YCbCr 2020

NDI Video Input

Standard: NDI
Resolution: Supporting all standard resolutions up to 1920x1080 (Full HD)
Framerate: Supporting frame rates up to 75fps

Video Processing

• Controller pixel processing capacity: 520,000 pixels (expandable by adding P3-175s)*
• Controller fixture capacity: 2,000 fixtures (expandable by adding P3-175s)*
• Maximum workspace area: 8,847,360 pixels
• Maximum active capture area: 2,073,600 pixels
• System processing depth: 16 bits per color (48 bits per pixel)
• System latency: 2 frames
• Latency between first and last fixture: None
• Scaling: Yes, global and mixed pixel pitch
• Gamma Curve Control: Yes, adjustable
• Image Control Parameters: Hue, Saturation, Brightness, Contrast, Lowlight & Gain
• Mapping: Real-time
• Colour Temperature Control: Real-time
• Colour Space Control: Real-time
• Preview: Real-time (incoming video & mapping onto fixtures)
  *See also P3 System Controller Capacity Info Note on Downloads page

DMX Controls

• Up to 256 universes of Art-Net or sACN input*
• Control of intensity and colours
• Control of colour temperature
• Merge video input with DMX controls towards fixtures
• Cross-fade or toggle between video and DMX controls
• Freeze, blackout or activate testpatterns on video engine
• Recall video presets (video settings, fixture positions and more)
  *See also P3 System Controller Capacity Info Note on Downloads page

Motion Controls

• One universe of Art-Net, sACN or Kinesys K2 input*
• Compatible with Kinesys K2/Vector, Tait Navigator and others
• Control fixture or group position on video canvas
• Control fixture or group rotation on video canvas
  *See also P3 System Controller Capacity Info Note on Downloads page

P3 Signal Protocol

• Signal type: Gigabit Ethernet
• Protocol : Proprietary Martin P3
• Hot pluggable: Yes, electrically isolated at all connections
• Cable type: Ethernet, shielded, Cat 5e or better
• Cable length: Up to 100 m between any 2 devices, extendable with Ethernet switch
• Maximum number of fixtures per daisy-chain: 50, extendable with Ethernet switch

Construction

• Housing: Steel and aluminium
• Color: Matte black
• Protection rating: IP20
