Martin | Atomic Colors, scroller incl. gel string

Martin - Atomic Colors Scroller

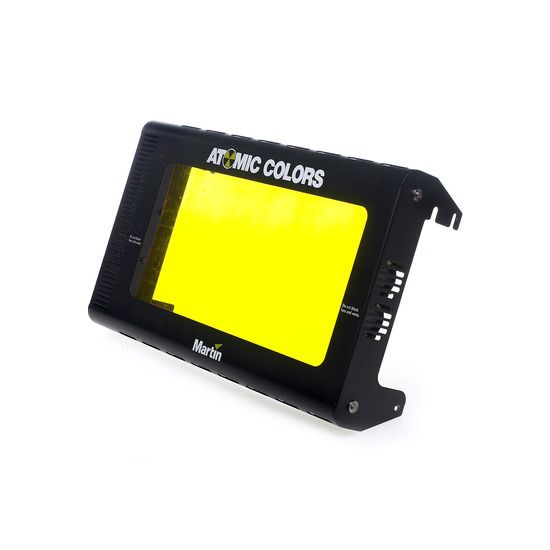

The Atomic Colors is a specially designed color scroller accessory which fits onto the front of the original Atomic 3000 DMX and also the new Atomic 3000 LED - allowing up to ten brightly colored strobe and blinder effects. In combination with the Aura backlight and main output of the Atomic 3000 LED it also delivers stunning three-dimensional eye candy looks.

PHYSICAL

• Length: 470 mm (18.5 in.)
• Width: 273 mm (10.7 in.)
• Height: 102 mm (4.0 in.)
• Weight: 2.5 kg (5.5 lbs.)
• Color gel thickness: 0.075 mm (0.003 in.) - 0.125 mm (0.005 in.)

DYNAMIC EFFECTS

• Color gel scrolling: 10 standard colors supplied, custom color gel strings can be fabricated by customer
• CONTROL AND PROGRAMMING
• Control options: DMX
• Cooling fan speed control: Onboard control panel, DMX
• DMX channels: 1 or 2
• Gel scrolling speed, 'gel saver' mode, light-activated fan operation: Onboard control panel
• Setting and addressing: Three-button LED control panel
• DMX compliance: USITT DMX512/1990

CONSTRUCTION

• Housing: Steel
• Color: Black
• Finish: Electrostatic powder-coated
• Protection rating: IP20

INSTALLATION

• Mounting points: Fastens to Atomic fixture
• Location: Indoor use only, mounted on Atomic fixture
• Orientation: Any
• CONNECTIONS
• Combined power and DMX data from Atomic fixture: 4-pin XLR

ELECTRICAL

• DC Power: 24 V (+/- 10%)
• DC current: 0.55 A (max.)
• Power source when used with xenon tube-based Atomic 3000 DMX: MPU-02 or MPU-08 external PSU

THERMAL

• Cooling: Forced air (4-speed fans)
• Maximum ambient temperature (Ta max.): 40° C (104° F)
• Minimum ambient temperature (Ta min.): 10° C (50° F)
