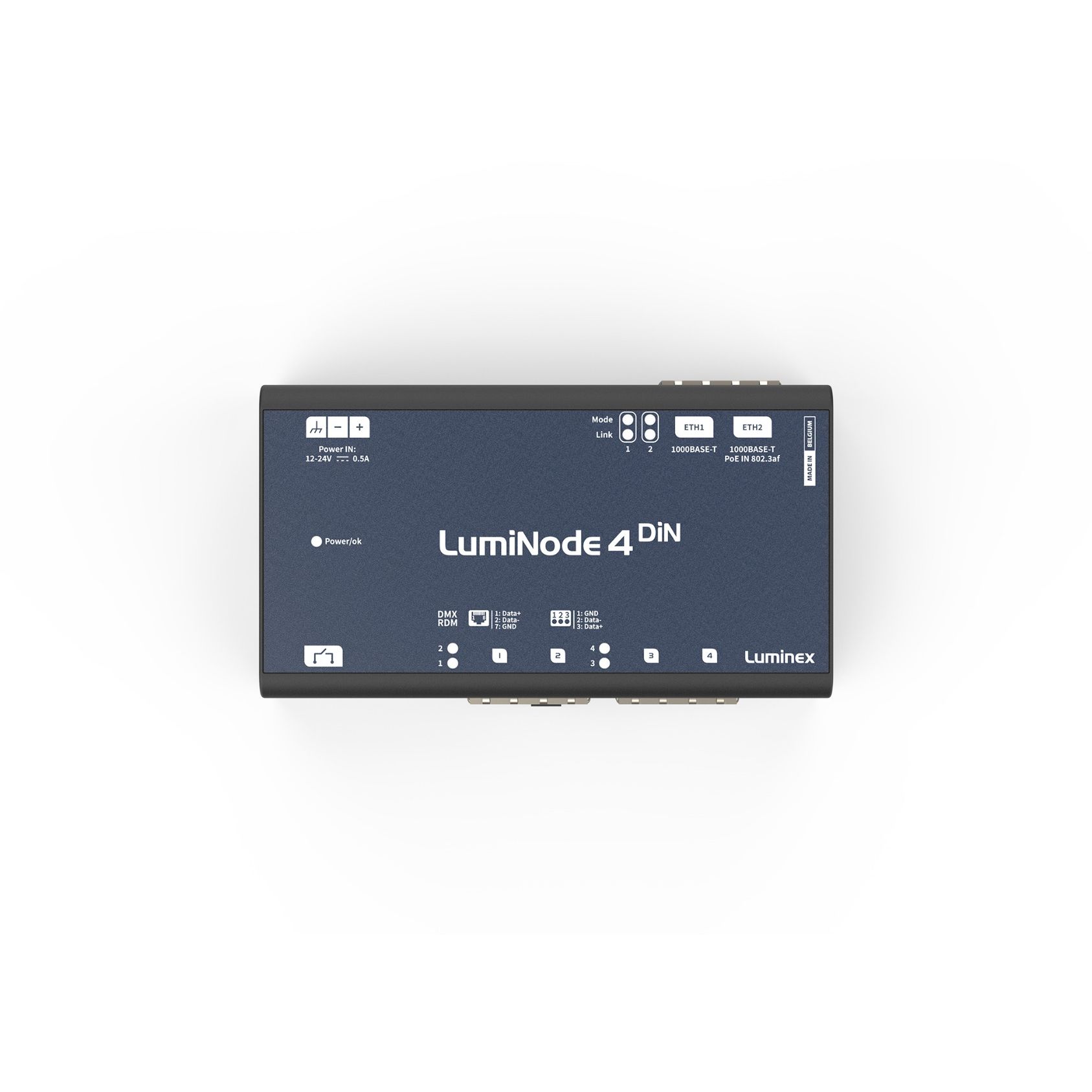

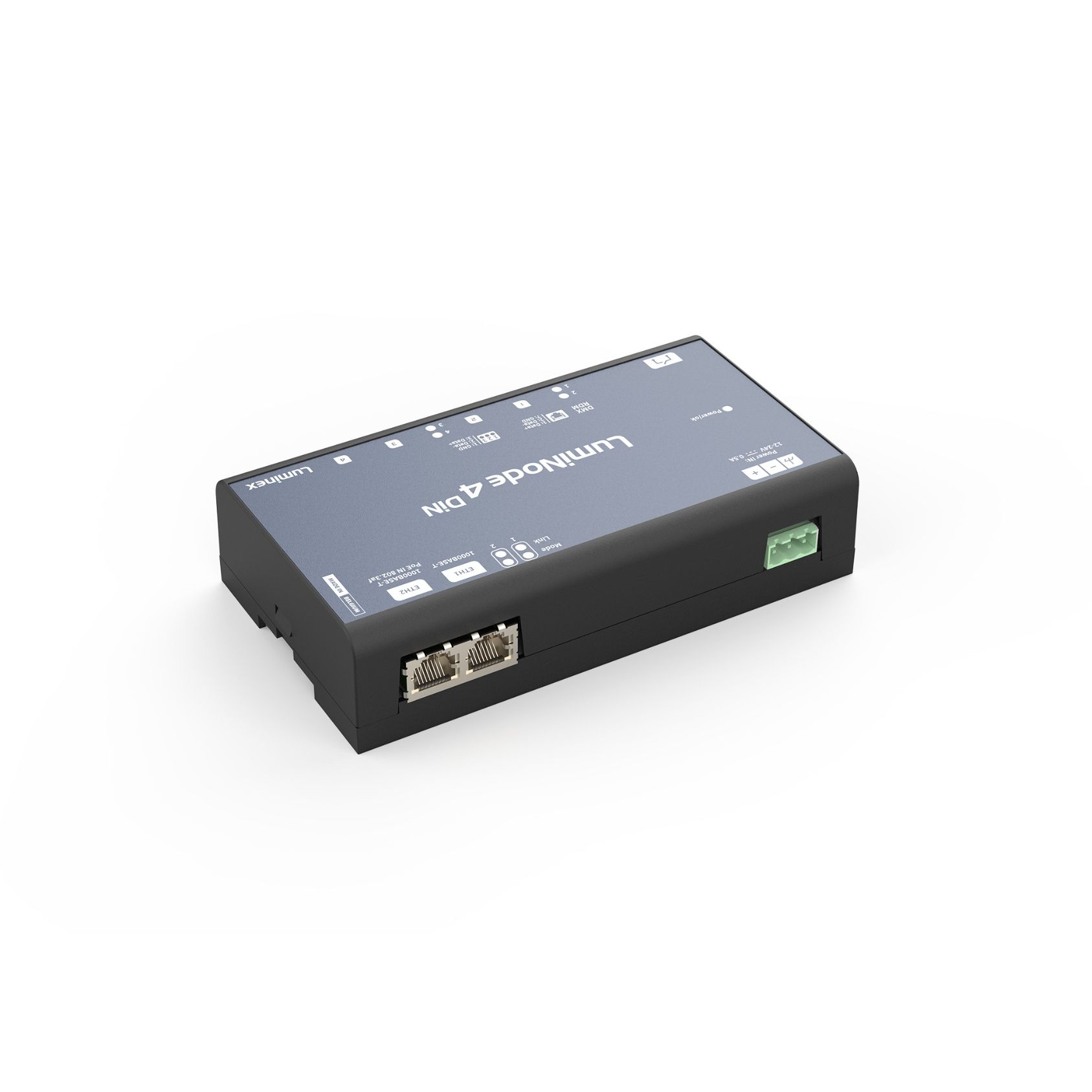

Luminex - LumiNode 4 DIN RJ45

LumiNode 4 DIN is specifically designed for fixed installations to fit on a standard DIN rail. The compact design and standardised mounting bracket is ideal for Architainment applications and install projects. For full flexibility the unit comes either with DMX/RDM RJ45 connectors or Terminal Blocks.

The unit can be powered over PoE or DC voltage. The second 1Gb RJ45 Ethernet port can be used to connect any other application or the next LumiNode 4 DIN (DC powered).
Each DMX/RDM port is fully optically and galvanically isolated and can be configured as an in- or output. All relevant industry standard protocols such as Art-Net, sACN, KiNET, RTTRpl (Blacktrax) are supported and can be processed and converted by the 6 onboard process engines supporting HTP, LTP, Crossfade, Backup, Switch and Custom merging modes with soft patch functionality.

Connectivity

  • DMX/RDM connectivity:
    • 4 x RJ45-DMX (ANSI E1.11 – 2008 (R2018))
    • 4x 3-pin pluggable terminal block
  • Ethernet connectivity: 2 x gigabit RJ45
  • Contact closure: Yes
  • Power connectivity:
    • 1x 3-pin pluggable terminal block
    • Ethernet (PoE 802.3af class 0)

DMX features

  • DMX protocols:
    • DMX512 (1986 & 1990)
    • DMX512-A ANSI E1.11
    • RDM ANSI E1.20-2010
  • DMX port direction: Input or output (configurable)
  • DMX port isolation: Optical and galvanic isolation per port
  • DMX timing:
    • Framerate: 10-40fps
    • Break: 176-352µs

Network features

  • Ethernet protocols:
    • Art-Net™ (1-4)
    • sACN ANSI E1.31
    • RTTrPL (BlackTraX)
    • KiNET v1, v2
  • Ethernet port speed: 10/100/1000Mbps
  • Port sensing:
    • Auto-negociation
    • MDI / MDIX
  • Split management interface: Yes
  • Groups (VLAN) support: Yes

Key features

  • Process engines: 6
  • Merging engine:
    • HTP
    • LTP
    • Backup
    • Switch
    • X-Fade
    • Custom
  • Softpatch: Yes
  • Master/Limit:
    • Proportional
    • Limit
  • Trigger system: Yes
  • ReRoute: Yes
  • Profile manager: Yes
  • Snapshot: Yes
  • DMX Redundancy: Yes
  • Monitoring software: LumiNet Monitor, Araneo
  • Configuration:
    • Built in Web server
    • Documented Web API

Status

  • Display and jog: No
  • Status LEDs:
    • Ethernet Port: link/activity LED and Group RGB LED
    • DMX Port: DMX/RDM LED
    • Power ok

Power

  • Power input:
    • 12-24 VDC
    • PoE IEEE 802.3af (Class 0)
  • Power consumption: Maximum 10W
  • Power redundancy: Yes

Environmental

  • Operating temperature: -10 to +60°C
  • Storage temperature: -10 tot +70°C
  • Humidity (non condensing): 5 to 95% RH

Physical

  • Enclosure: Robust plastic housing
  • Mounting: Din Rail IEC/EN 60715 mount
  • Dimensions (W x D x H): 156,30 x 86 x 35,8 mm
  • Weight: 0.,27 kg
  • Packaging: 305 x 215 x 110 mm

Approvals

  • Electromagnetic emissions and immunity:
    • EN55032 class A
    • EN55035
    • EN61000-3-2
    • EN61000-3-3
    • EN61000-4-2
    • EN61000-4-4
    • EN61000-4-5
    • EN61000-4-6
    • EN61000-4-8
    • EN61000-4-11
    • FCC Part 15 CFR 47 class A
    • ICES-003 Issue 6
  • Safety:
    • IEC 62368-1
    • EN 62368-1
    • UL 62368-1
    • CAN/CSA-C22.2 No. 62368-1
    • CE
  • Certificates:
    • cSGSus Mark
    • CE
    • UKCA
    • CB certificate
  • Green:
    • RoHS
    • REACH
