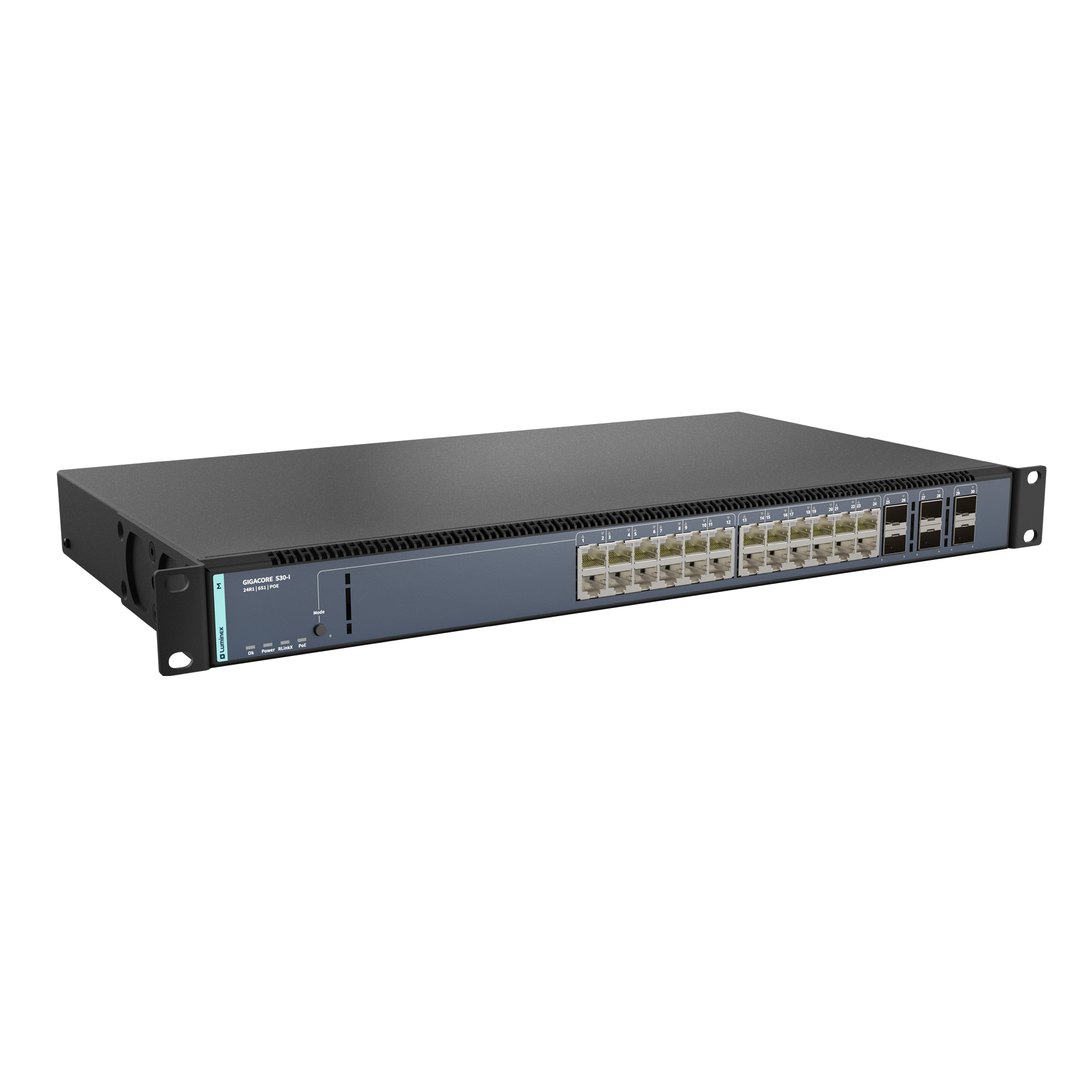

1Gb Network Switch for converged AV networks

With six independent SFP ports supporting 1 Gbps data transfer and 24, 1 Gbps copper ports, the GigaCore S30-I offers an ample port count. Paired with Araneo, the GigaCore S30-I enables one-click AV network deployment for fixed installations.

Like all GigaCore models, it is designed to natively support the most advanced AV protocols, serving as the basis for a converged network and enabling multiple applications to coexist seamlessly on the same network.

GigaCore offers a reliable, user-friendly platform to transport light, audio, and video IP protocols without IT configuration. Time synchronization is critical in many applications. The GigaCore S30-I is a PTPv2-enabled switch that supports most major audio protocols (e.g., RAVENNA/AES67, Milan AVB, ST 2110, Dante, Q-SYS/Q-LAN) without requiring complex device configuration.

No compromises

The GigaCore S30-I is an indispensable part of any AV network where reliability and quick, straightforward setup are required. As a user, you don’t need to make choices or tradeoffs, as GigaCore handles most AV protocols for you out of the box.

PoE+

Entertainment installations constantly push the limits, and the need to deploy PoE-powered devices is continuously increasing. The GigaCore S30-I provides an answer to these scenarios by offering PoE+ on all ports as an option.

AV validated for real applications

GigaCore switches are fully validated in real-world applications with major brands in the AV industry for different protocols, including NDI™, Dante™, AVB/MILAN, RAVENNA/AES67, ST-2110, IPMX, MA-Net, and many more.

We don’t just approve against a protocol but actually test it. Because of real world application validation and interoperability testing, we understand the applications and make sure you can deploy our product with confidence.

Luminex support team really speaks your language and has a vast amount of AV knowledge built up, not just from talking protocols but mainly from working with you and living through your real application network challenges.

Connectivity

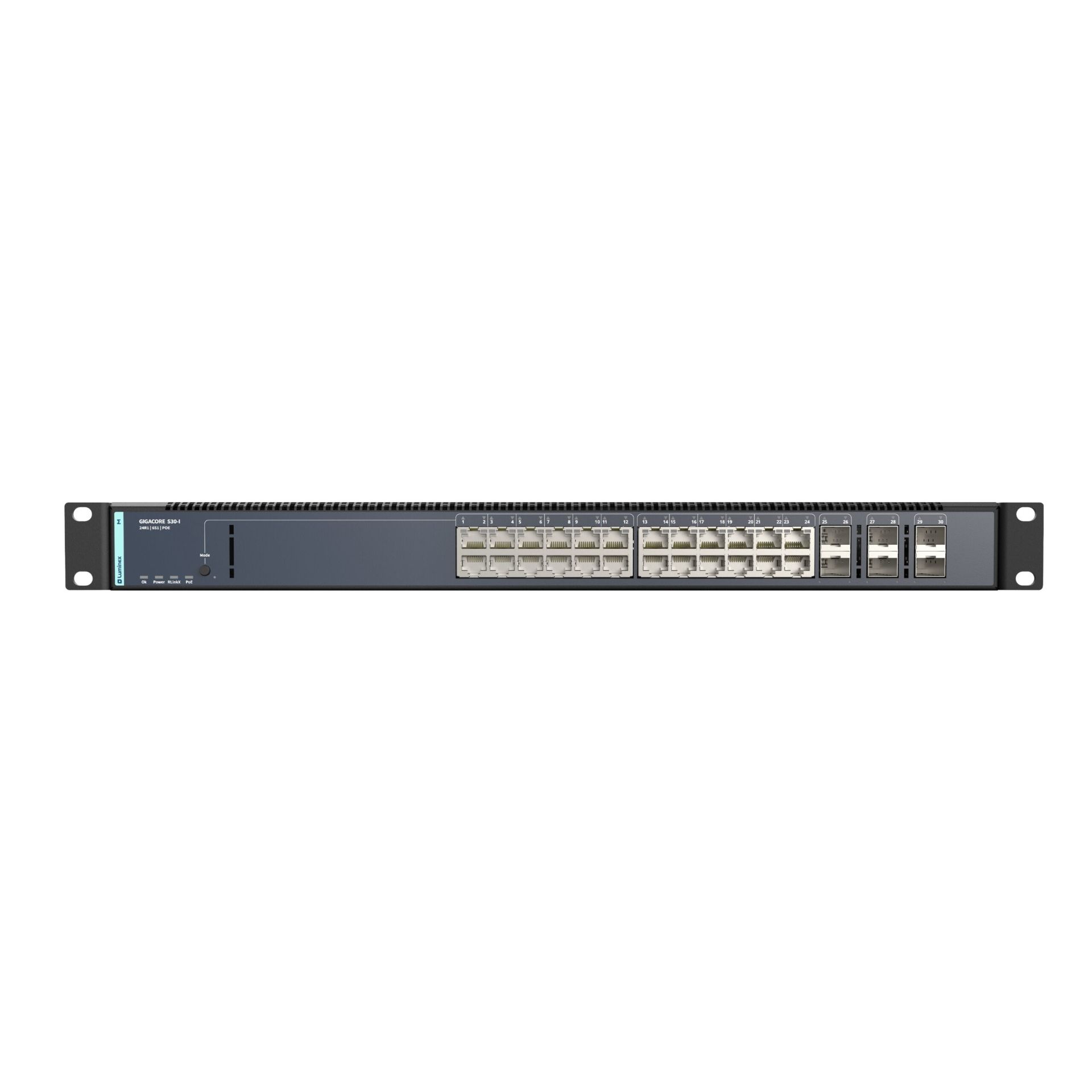

• Ethernet connectivity: 24x Gigabit (10/100/1000 BASE-T) copper RJ45 (front panel)
• Fiber connectivity: 6x 1 Gbps SFP cages (front panel), independent from other ports
• Ethernet port speed: N/A
• Serial: No

Power

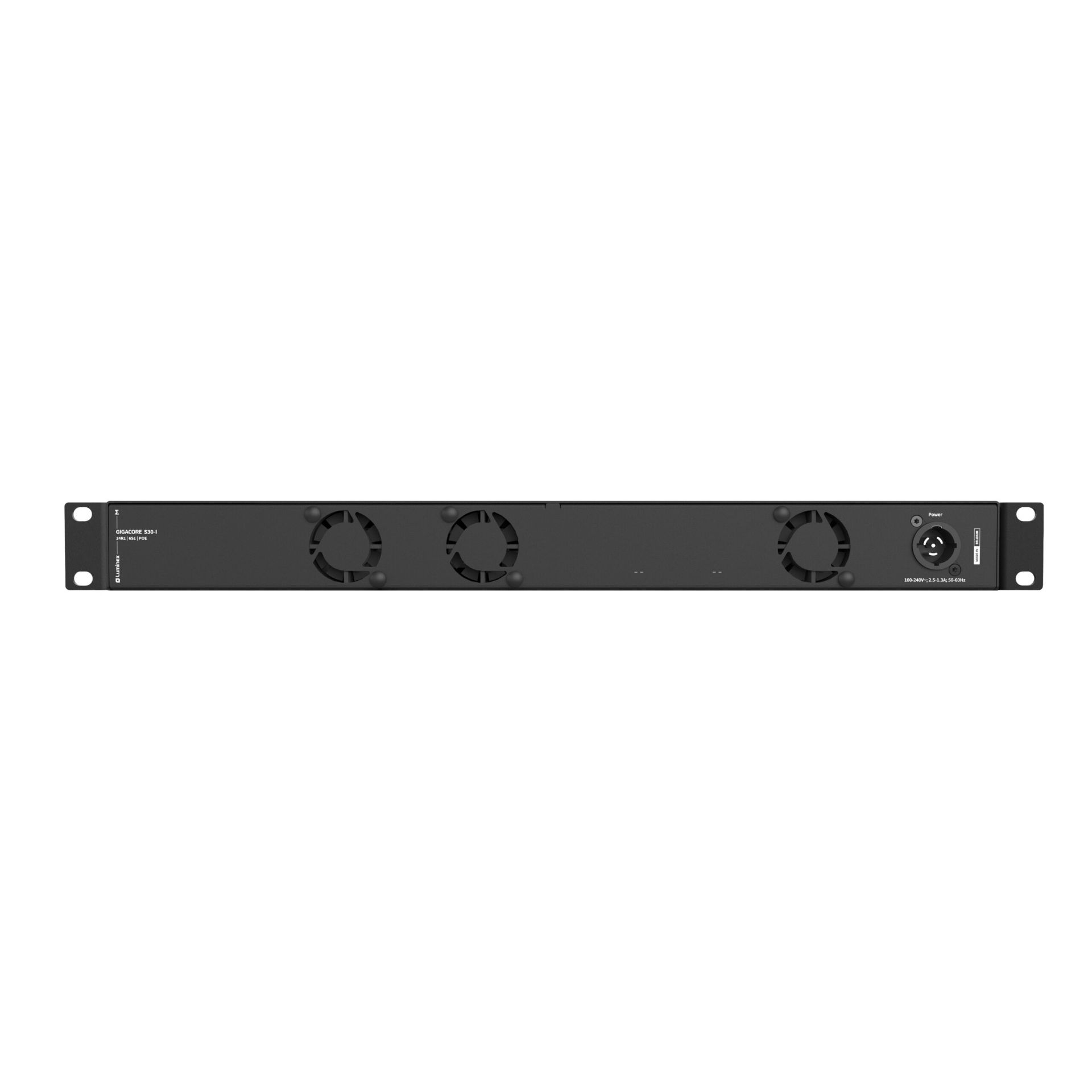

• Power connectivity: 1x PowerCON TRUE1 in
• Power input: 100–240 VAC, 50–60 Hz
• Power consumption: TBC
• Fuse: N/A
• Backup power input: N/A
• Backup PoE power input: N/A
• PoE: PoE+ optional (up to 300 W)

Protocols

• Supported protocols: Dante©, RAVENNA/AES67©, Ethersound©, Q-SYS/Q-LAN, sACN, ArtNet, MANet, HogNet, RTTrPL (BlackTraX), IPMX, NDI, IEEE 802.1p CoS, DiffServ (DSCP), IEEE 1588 PTP v2, MILAN AVB, IEEE 802.1as (gPTP) and more
• Sound protocol compliance: Yes (low jitter)
• Ethernet compliance: IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.3ab Gigabit Ethernet, IEEE 802.3af PoE (optional), IEEE 802.3at PoE+ (optional), IEEE 802.1ax, IEEE 802.1p CoS, IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree, IEEE 802.1s Multiple Spanning Tree, IEEE 802.1Q VLAN, IEEE 802.1Qav MVRP, IEEE 802.1 BA-2011 AVB, IEEE 802.1ab LLDP, IEEE 1588-2008 PTPv2, IETF RFC2710, IETF RFC3810

Configuration

• Display and jog: N/A
• NFC: No
• Configuration: Network-wide configuration via Araneo software and/or built-in web server
• Global status LEDs: Device, power and mode
• Port status LEDs: Groups, link/activity and port speed
• Dark mode: Available
• Milan mode: Supported
• Colored RGB LEDs: Yes

Physical

• Mounting: Rack-mounted
• Enclosure: Robust metal housing
• Dimensions (W x D x H): 482 x 249.6 x 44 mm (19" x 9.82" x 1.73")
• Weight (non-PoE): 3.30 kg (device only), 3.65 kg packaged
• Weight (PoE): 3.80 kg (device only), 4.05 kg packaged
• Packaging dimensions: 550 x 335 x 68 mm

Environmental

• Operating temperature: 0 to +50 °C
• Storage temperature: -40 to +70 °C
• Humidity: 5–95% RH (non-condensing)
• Ingress protection: N/A
• Noise level @ 1 m: TBC
• BTU: TBC

Certificates & Standards

• Certificates/Approvals: cSGSus Mark (UL), CE Mark, UKCA Mark, CB Certificate, RoHS
• Standards: IEC 62368-1, UL 62368-1, CAN/CSA C22.2 No. 62368-1, EN 62368-1, FCC Part 15 CFR 47, CAN/ICES-003, EN 55032, EN 55024
