LumenRadio - Super Low Loss cable 5 meter

LumenRadio - Super Low Loss cable 5 meter

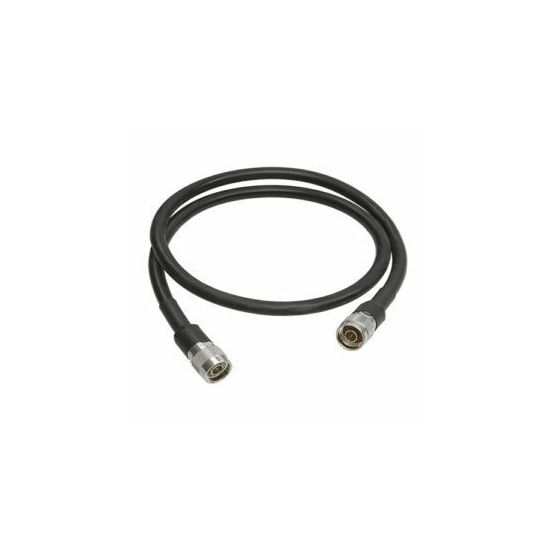

Our Super Low Loss cables are primarily designed for outdoor use. They provide low loss and robust cable with its CLF400 cable. With its N male connectors it mounts directly to LumenRadio’s products with N female connector without any adapters. It also fits directly to most of our outdoor antennas.

Electrical specifications

• Cutoff frequency: 16.2 GHz
• Attenuation @ 900 MHz :0.13 dB/m (0.04 dB/ft.)
• Attenuation @ 2.45 GHz: 0.22 dB/m (0.07 dB/ft.)
• Attenuation @ 5.8 GHz: 0.36 dB/m (0.011 dB/ft.)
• Impedance: 50 Ohms
• Capacitance: 78.4 pF/m (23.9 pF/ft.)
• Inductance :0.2 uH/m (61 pH/ft.)
• Shielding effectiveness: >90 dB
• Voltage withstand: 2500 V DC
• Jacket spark: 8000 V RMS

Physical Characteristics

• Connectors: N male
• Cable type: CLF400
• Inner conductor: 2.77 mm, copper covered aluminum wire
• Dielectric: 7.24 mm, gas injected foamed polyethylene
• Outer conductor: 8.13 mm, double side aluminum foil, tinned copper wire 24x7 / 0.16mm
• Standard jacket: 10.3 mm, Black PVC
• Weight: 115 g/m (1.24 oz/ft.)
