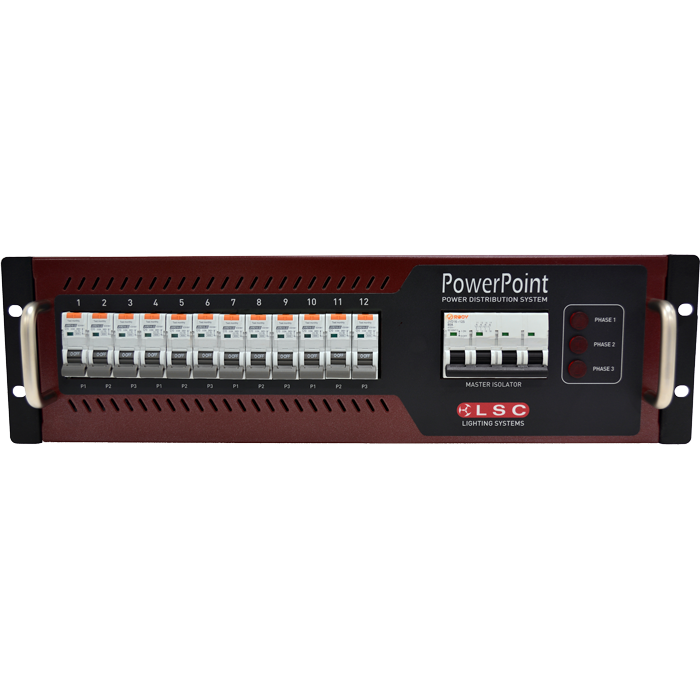

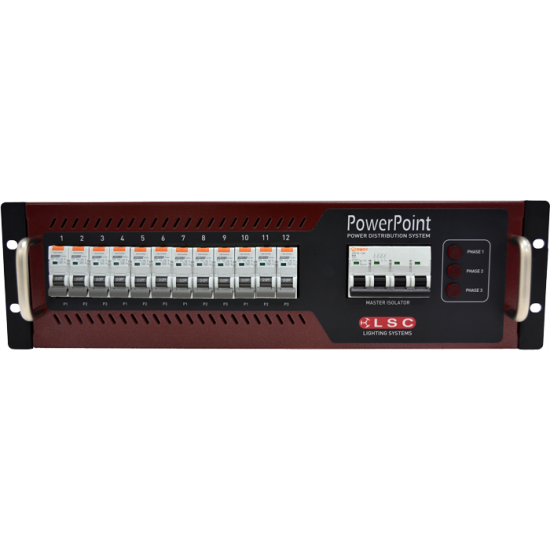

LSC - Powerpoint 12/16S - Schuko

LSC - Powerpoint 12/16S - Schuko

Rackmount Power Distribution 12Ch x 16A - RCBO, 19" 3RU, EU Schuko outputs, 3-phase tail, no plug

There are occasions where simple and reliable power distribution is required. The LSC PowerPoint is a simple-to-use and affordable power distribution unit.

Designed for applications where fixed or mobile power distribution is required, the PowerPoint distribution rack offers a 4-pole mains input isolator switch with Neutral Disconnect as standard and individual RCBO (over-current + RCD) per output channel. There are also three neon phase indicators to show power input to the rack.

• Individual RCD (30mA) protection for each output circuit – protection for users
• Individual circuit breaker for each output circuit
• Master isolator switch that disconnects Neutral from output circuits as well
• Three neon indicators show state of phase power
• Three-phase operation
• Single-phase operation possible

• Channels: 12
• Max Load per Channel: 16 Amps
• RCD/GFI Protection: Yes
• RCD/GFI Current Trip: 30mA/Channel
• Master Isolator: Yes
• Isolator Disconnect Neutral: Yes
• Three-Phase or Single-Phase Operation: Yes
• Power Indicator for each Phase: Yes

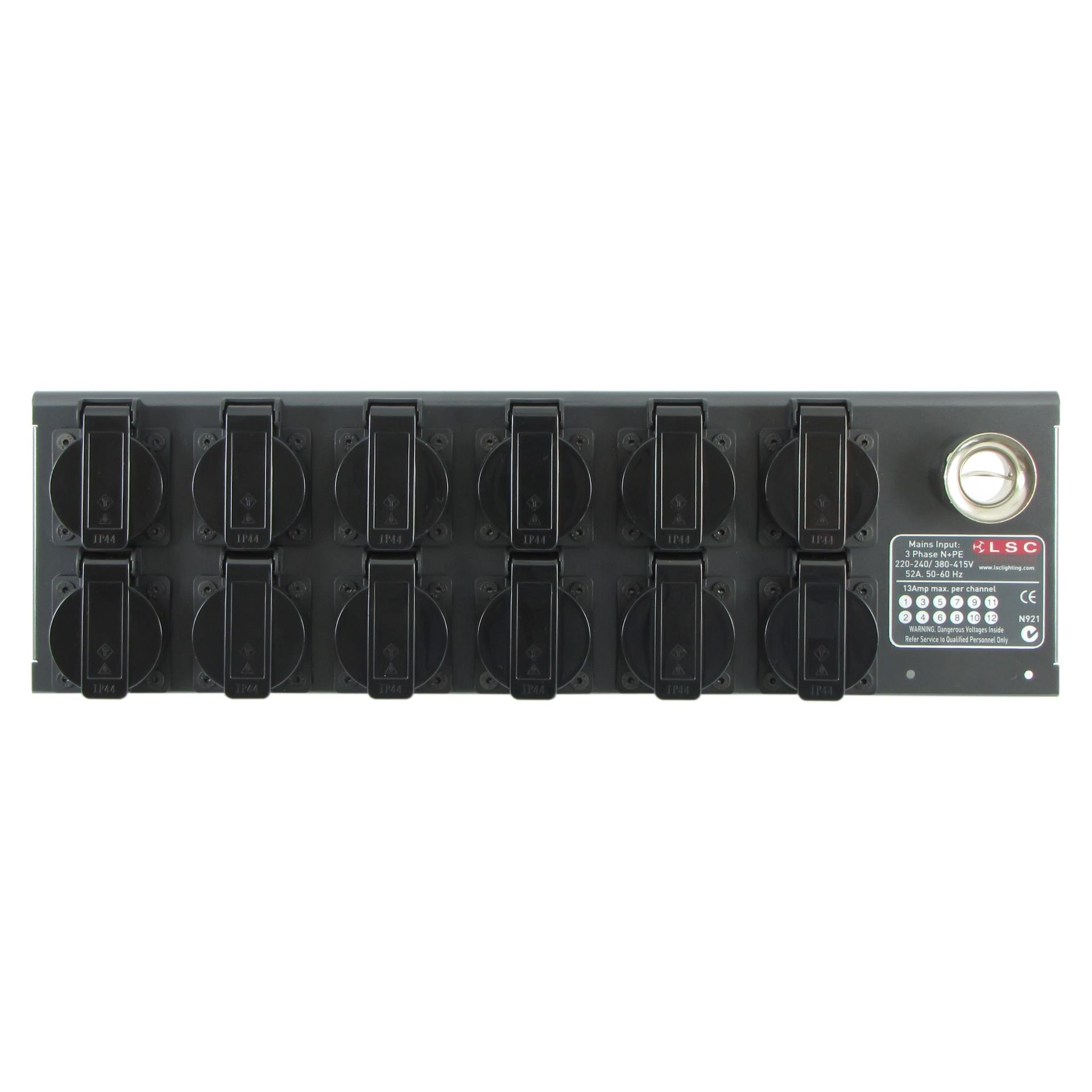

• Output Connector Options: 12x Schuko
• Power Supply: Nominal 110-240V, 3-phase star, 50-60Hz (single-phase operation possible - 63A max)
• Power Input Connection: Supplied with a 3-phase 1.2m H07 rubber 5 core x 10mmsq cable with bare ends
• Case: 19'' 3HE Rackmount
• Dimensions: 483 x 300 x 132mm
