JBL - VTX A8 Extension Bar

JBL - VTX A8 Extension Bar

Ex demo

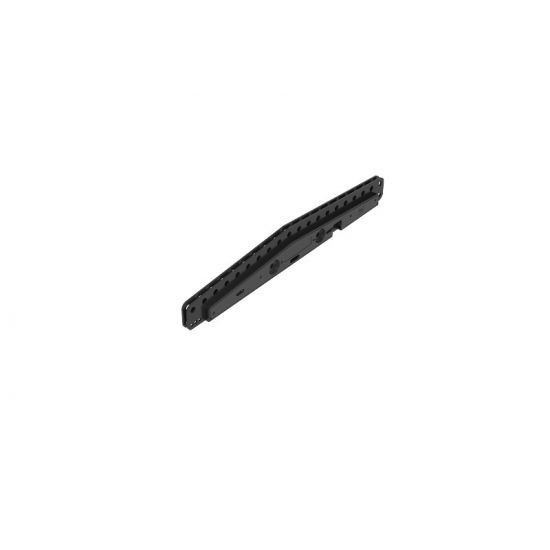

The VTX A8 AF EB extension bar was designed to operate in conjunction with the VTX A8 AF array frame to facilitate either single-point, two-point front-to-back or side-by-side suspension methods. The extension bar is compatible with 5/8” shackles and can be stored above the array frame during transportation. The extension bar can extend to the front or the rear of the frame to accommodate both up-tilt and down-tilt aiming options. Three connection points are available for attaching the extension bar to the array frame, allowing for precise control of shackle positioning for single-point applications. One VTX A8 AF EB extension bar is included with the purchase of an array frame and additional extension bars can be purchased to facilitate side-by-side suspension. Configurations and load conditions for using the VTX A8 AF EB can be obtained using JBL’s LAC-III software application. For more information about the extension bar and use cases, refer to the VTX A8 Rigging Manual.

• Extension bar for use with VTX A8 AF

• 0.5° pick-point resolution

• Includes 3 x shackles and mounting brackets

• Lightweight design

• Compatible shackle size: 5/8”

• Construction: High-grade steel with anti-corrosion coating
• Finish: Black Powder Coat
• Compatible Shackle Size: 5/8"
• Mechanical Limits: Maximum: 24x VTX A8 | 13x VTX B18, Safe Limit: 22x VTX A8 | 10x VTX B18
• Dimensions (H x W x D): 137.74 mm x 734.31 mm x 25.97 mm (5.42 in x 28.91 in x 1.02 in)
• Net Weight: 7.5 Kg (16.5 lbs)
