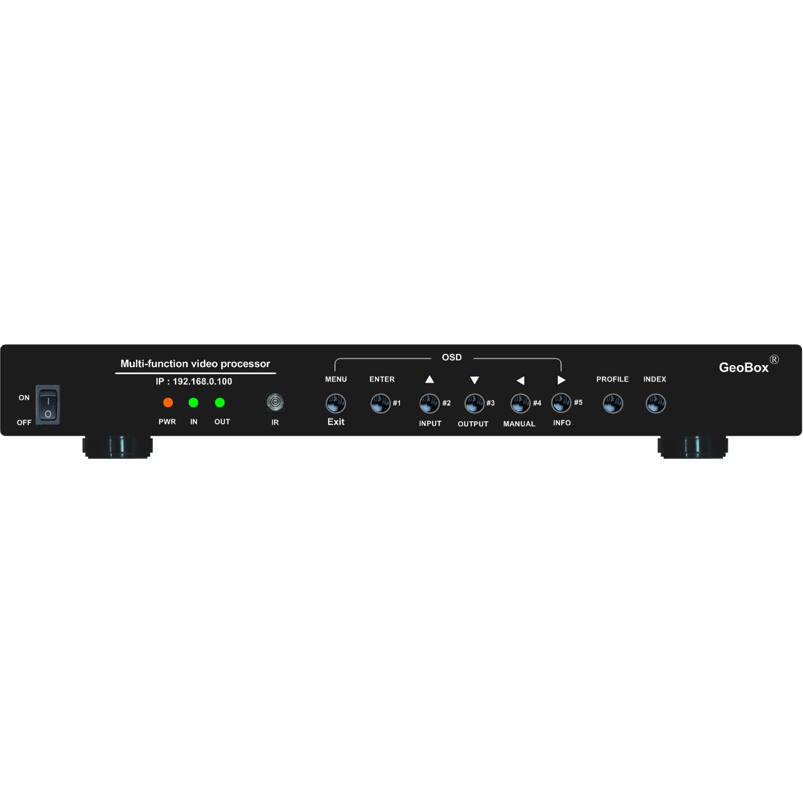

GeoBox - G901 - Multi function processor

GeoBox - G901 - Multi function processor

G901 is new generation 4k in/out video processor for video source switching, format conversion, scaling up and down, image flip/rotation, video wall and PIP/POP functions. It supports various input sources and all kind of input timings, including non-VESA standard input timings. It is an ideal front end processor for big display system required 4k/60 input and output.

5 input ports (3x HDMI, 1x DP) and 1x HDMI outputs are designed in G901. Input supports up to 4096*2160 @60Hz with 4:4:4 full color sampling. Output supports up to 3840*2400 @60Hz. It is integrated with 10-bit high end processor, motion adaptive de-interlace, low angle smooth algorithm, 3:2/2:2 pull-down cadence and supports non-VESA standard input timing. Programmable EDID can optimize input timing to get the best video result.

It can execute video adjustment in Brightness, Contrast, Hue, Saturation, Sharpness, color temperature and discrete RGB gain adjustment. User can select deep color mode with true 10-bit color across entire processing process to get smooth gradient color.

Video wall function in G901 can crop specific location & resolution in source image for each display devices. Overlap function allows user to change image position, aspect ratio and cropping area up to +_1800 pixels in each edge. User can also adjust image position freely without changing image size. Multiple units of G901 can build creative video wall with any LCD array at landscape and portrait directions. PIP (picture in picture) and POP (side by side or top/bottom) are standard functions in G901. PIP image size can be from 320*180 up to 1920x1200. It can be located at any location across entire screen. Main and PIP images are swappable. Both PIP and POP can be implemented while image is 90/180/270 degrees flip and rotation. Sub-image can be rotated and flipped independently. The cropping range and position in both main and sub-image are adjustable.Maximum signal source can be displayed in one G901 is two.

User can use IR controller, USB, Web Gui and Ethernet for system operation and setup. It is designed to work in 7/24 working environment and provides easy configuration, low entry barrier, cost effective, reliable and flexible solution.

• Input: 3x HDMI 2.0b, 2x DP1.4, Max. input: 4096x2160 60fps, 4080*3840 30Hz, supports interleaved and progressive input signals with 4:4:4 10-bit color
• Support non-VESA standard input timings
• Programmable Output: 1x HDMI up to 4096*2400/60, Progressive output up to 10-bit RGB 4:4:4 color
• Preset 17 output timing modes including 3200*1800 and 2560*1440 with selectable 8- bit/10-bit deep color and 30/50/60Hz refresh rate
• HDCP: HDMI V2.2/V1.4, DP: HDCP: V2.2/V1.4
• Embedded video wall function for image split, cropping, location assignment and position shift.
• Flexible aspect ratio adjustment in each edge up to +_ 1800 pixels.
• 30Hz/50Hz/60Hz in/out & frame rate conversion.
• PIP/POP function with PIP image size from 320*180 up to 1920*1200 resolution with flexible position and selectable aspect ratio.
• PIP/POP signal sources can be from two HDMI or two DP or HDMI+DP to get the most flexibility.
• Frame lock for multiple unit synchronization.
• 10-bit processor, 3:2/2:2 cadence, low angle smooth algorithm
• High quality scaling engine for image scaling up and down among XGA to UHD
• 4:4:4 Chroma sampling, 30 Color bits
• Support xvYCC color processing & 8/10/12-bit deep color input signal.
• 3D motion adaptive de-interlace for interleaved input
• High Dynamic Range (HDR) support: SMPTE ST-2084, SMPTE ST-2086 and HDR 10
• Individual 90/180/270 rotation, flip, cropping, scaling & color adjustment up to 4k/60 input.
• Embedded HDMI audio output
• Selectable and programmable EDID
• ESD Protection: ±8kV (Air-gap discharge), ±4kV (Contact discharge)
• DC power supply: DC adapter: 12V 2A (100V240V)
• Max. Power consumption: 10w
• Working environment: 45〫C, 10-90% RH
• Control: IR, RS232, USB, Ethernet
• System settings can be stored and backup.
• Dimensions: 220mm*160mm*40mm
• Weight: 0.75kg
• CE/FCC/RoHS/Green Certified
• 2 Year Warranty, paid extension available up to 5 years
