Fiber Field Cable, 2-core, SM, Q-ODC2 - 100m

Fiber Field Cable, 2-core, SM, Q-ODC2 - 100m

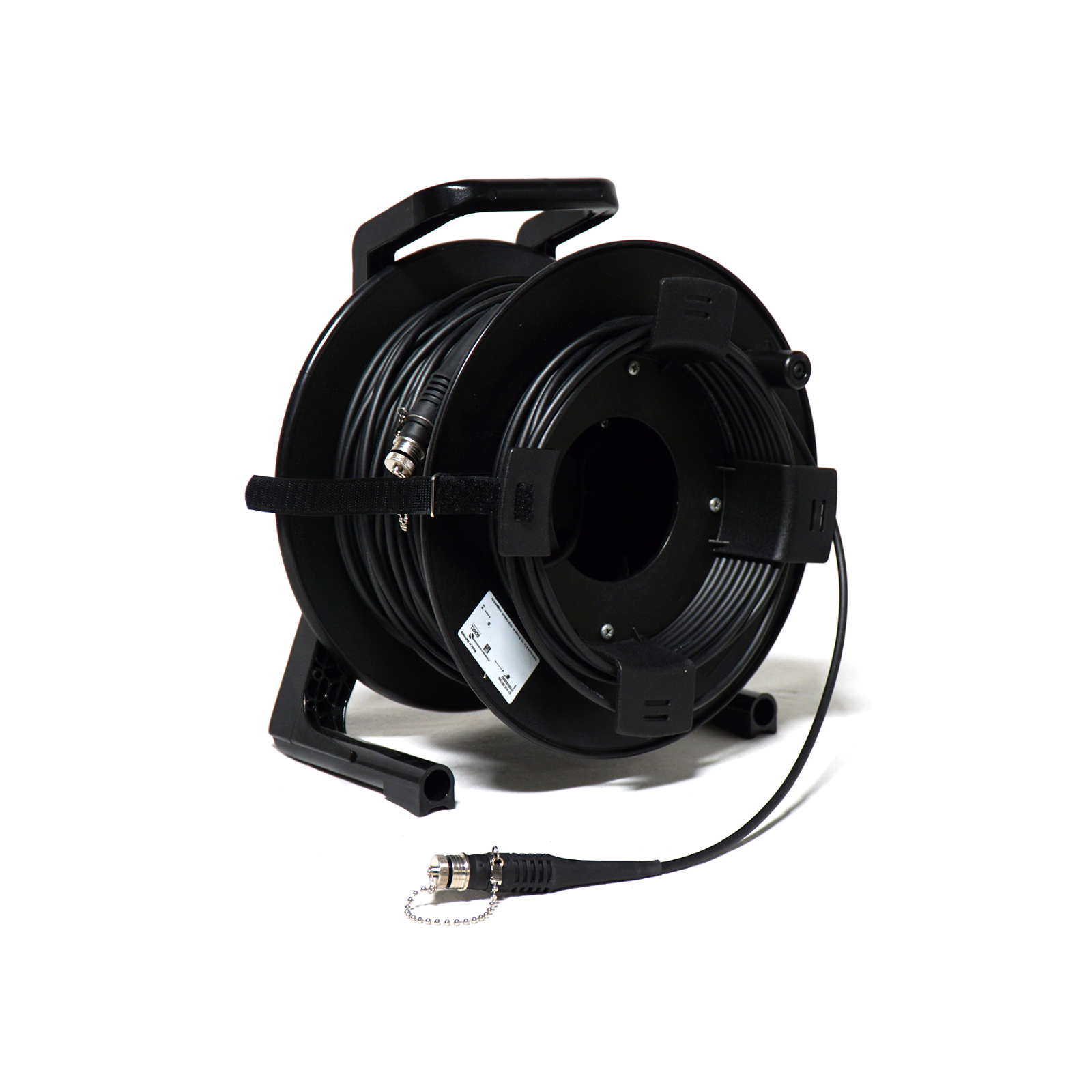

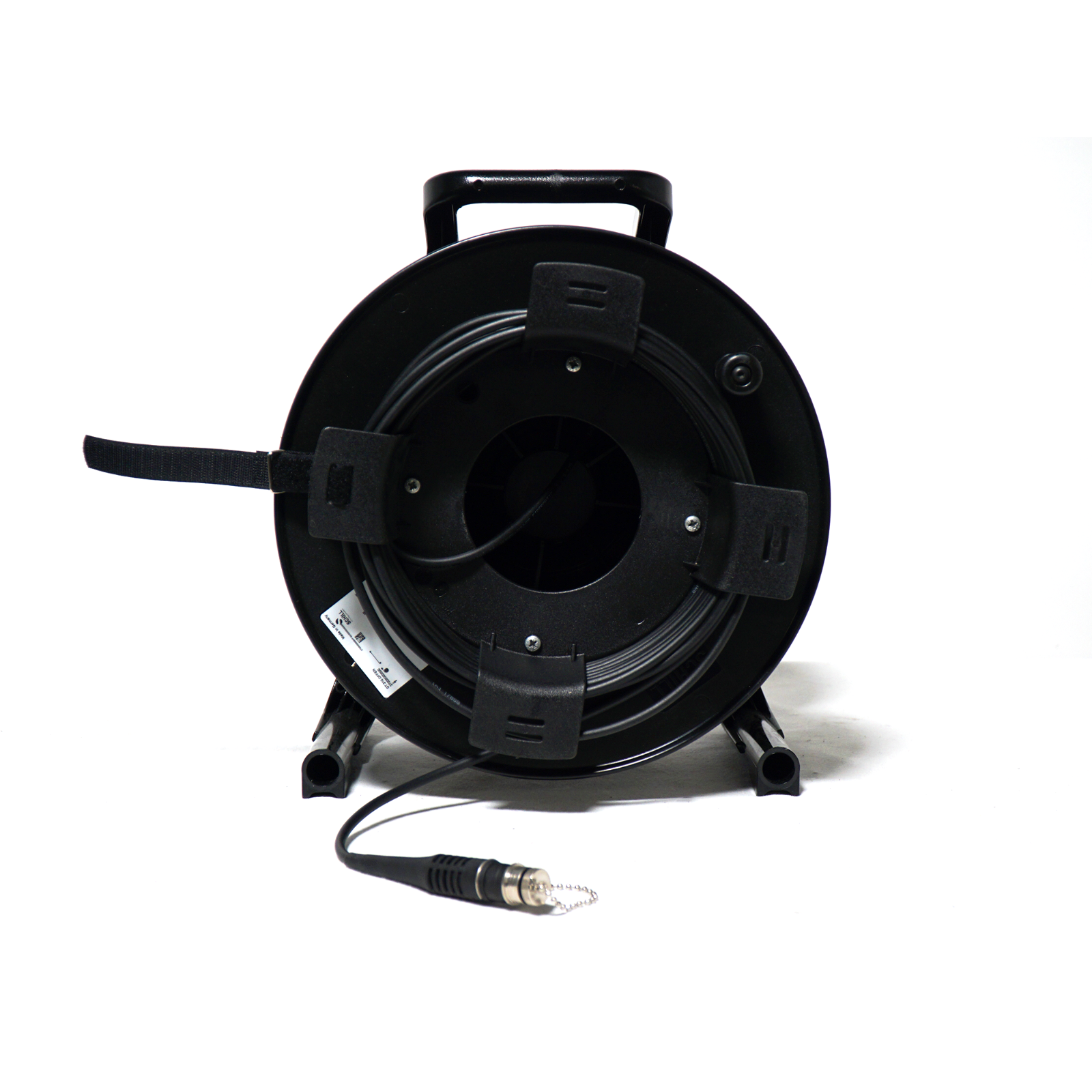

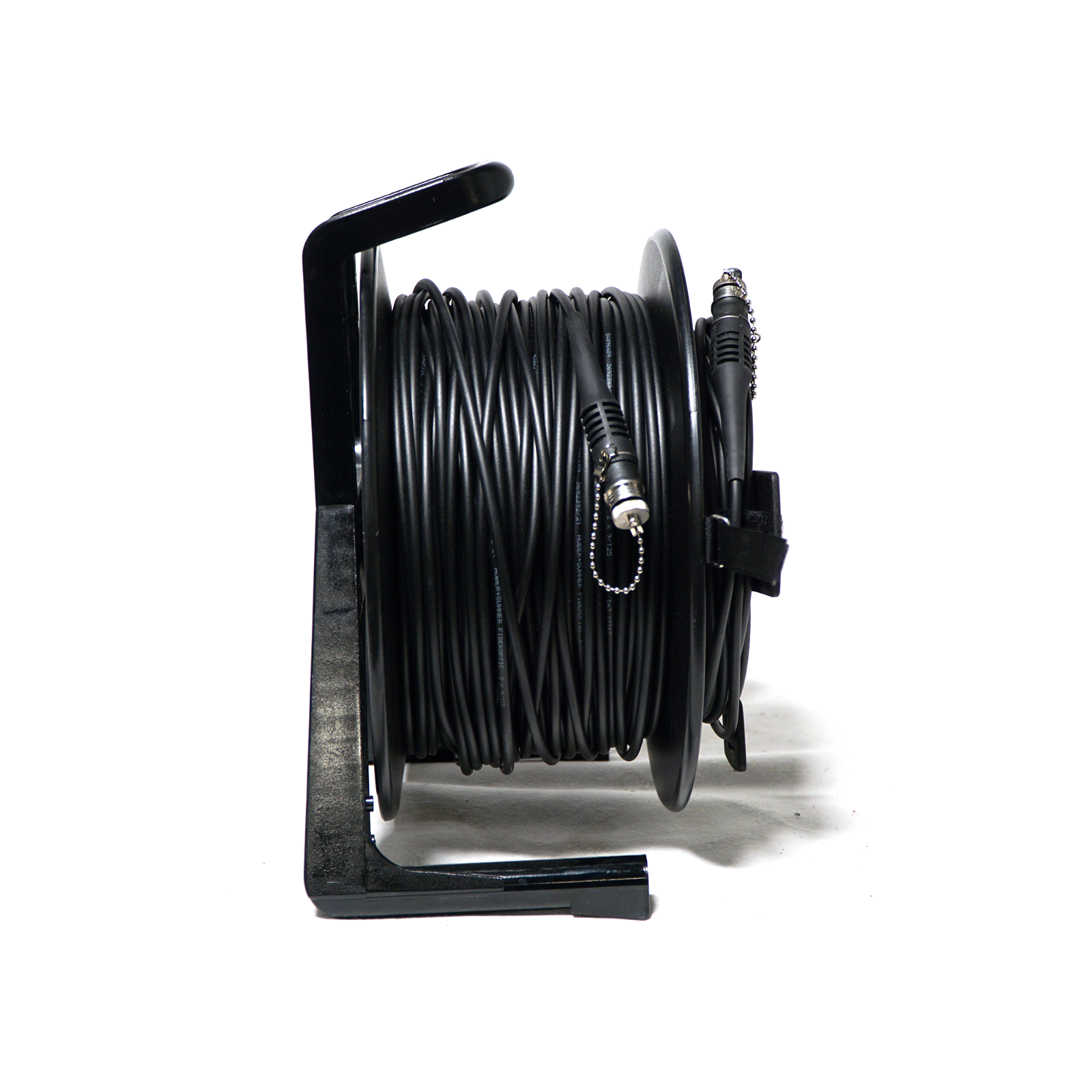

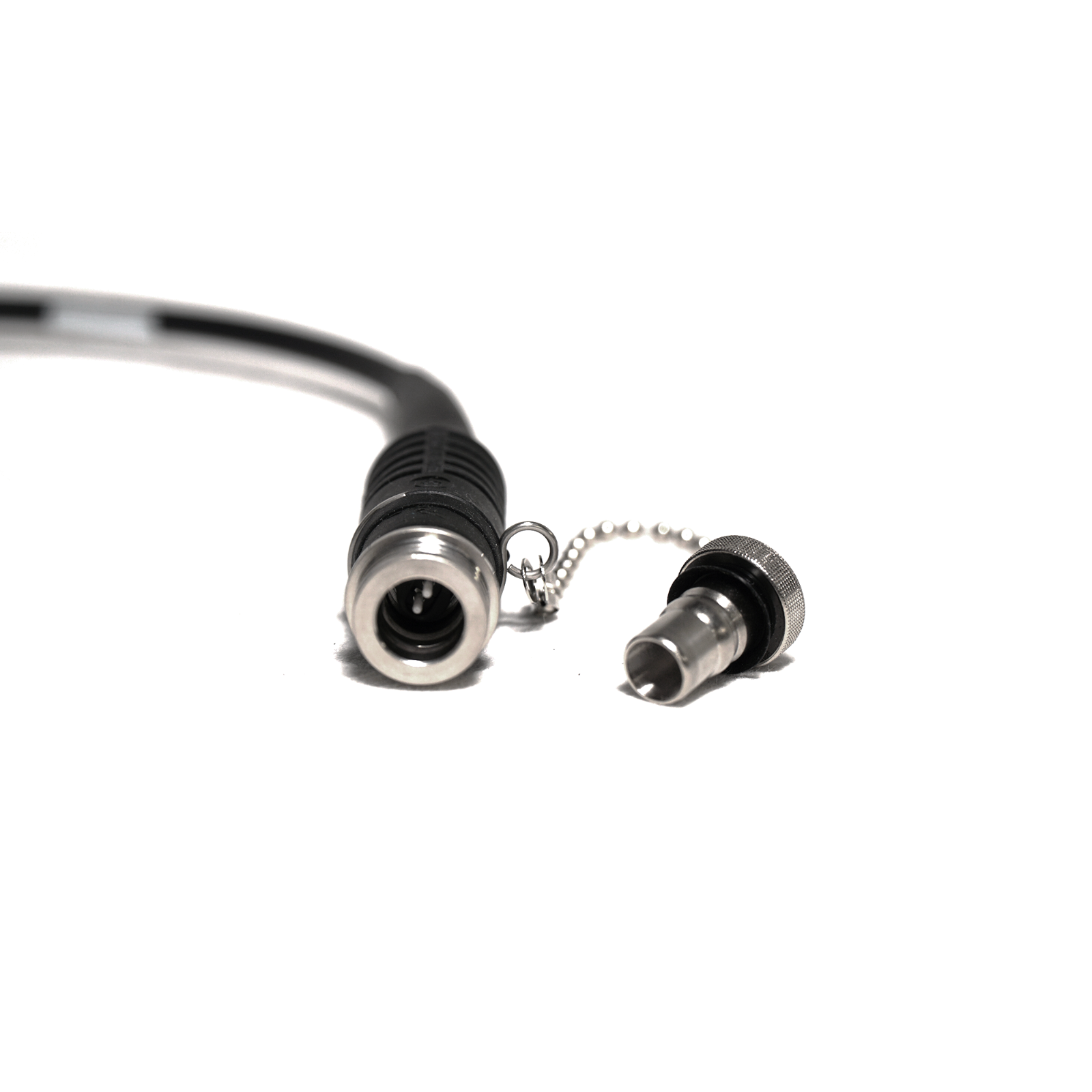

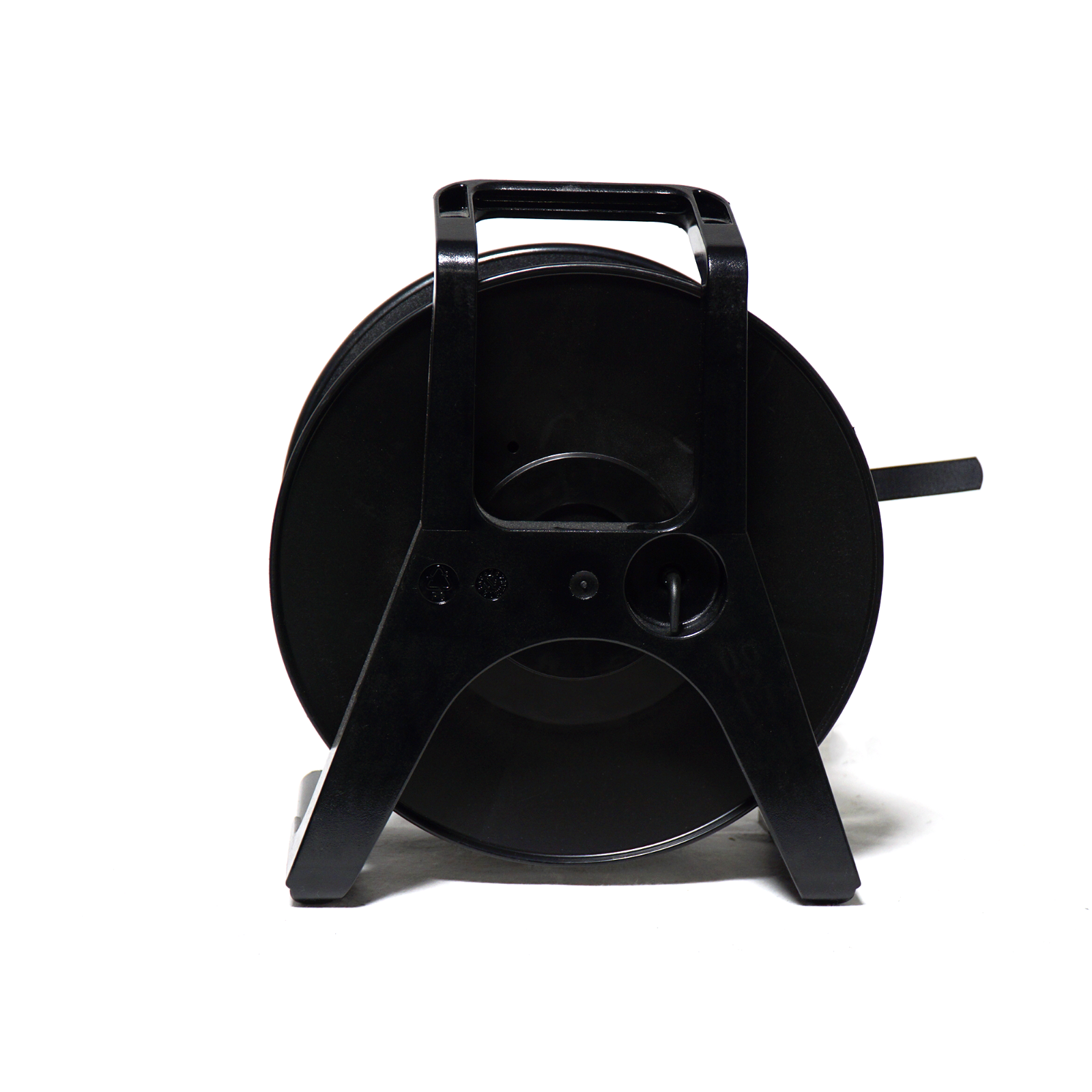

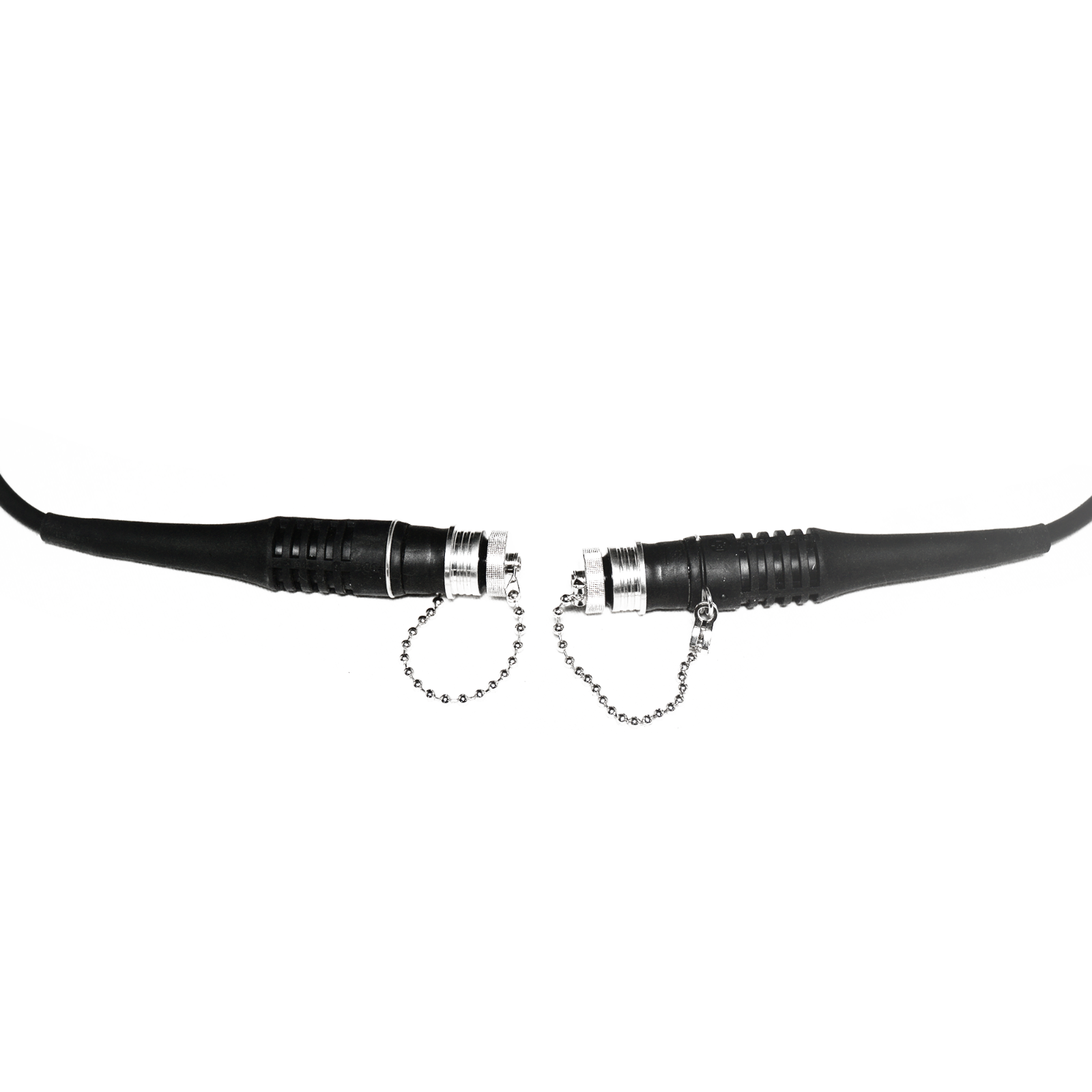

Fiber Field Cable, 2-core, SM, Q-ODC2 plug (Side A) - Q-ODC2 plug (Side B), snap-on with chain (metal), 100m, 4.8mm diameter TAC-4 cable on GT310RM drum

Features

• Robust push-pull coupling mechanism
• Compact design with 2 x 1.25mm ferrules
• Highest outdoor installation safety

General

• Connector family: Q-ODC®
• Connector type: Q-ODC2
• Gender: Socket D-size  (XLR), Plug, Extension
• Housing: colour Metal
• Housing material: Brass, nickle plated
• Fiber quantity: 2
• Only valid as assembly: Yes
• Calble type: 4,8mm diameter, TAC-4

Optical data

• Insertion loss: 97% ≤ 0.45 dB
• Insertion loss typical: ≤ 0.2 dB
• Return loss: ≥ 65 dB

Mechanical data

• Mating cycles: 5000
• Tensile strength: 450 N
• Side load: 30 N
• Ferrule inner diameter: 0.1255 mm
• Ferrule outer diameter: 1.249 mm
• Ferrule concentricity: 0.001 mm
• Ferrule material: Ceramic (special ferrule to meet the 5000 mating cycles)

Environmental data

• Operation temperature: -40 °C ... 85 °C
• Ingress Protection (IP Rating): IP68
• UV resistance: Yes
• Chemical resistance: good
• Salt mist test: 720 h
