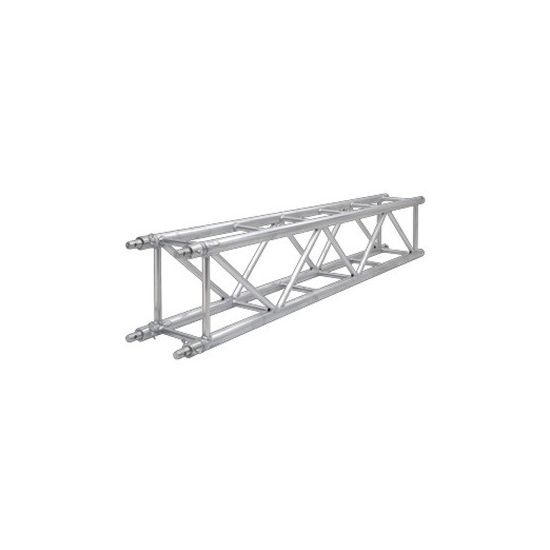

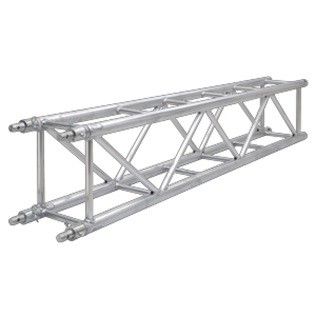

Eurotruss | XD-050 - Rectangle Truss Length 50cm Horizontal

Eurotruss - XD-50/H

Horizontal pin position

XD straight elements lend themselves to use as span exposed to bending stress resistant spans for vertical loads at a free span of up to 20m (66 feet) at high load.

Predestined for indoor use, the XD Truss is characterized in particular by its slender shape and low packing volume.

Made with the fast connection system and approved according the DIN EN 1999-1-1 & 1999-1-1/A2.

Facts

• Tolerance free connection with conical connector
• High stability aluminium alloy
• Excellent load-bearing capacity combined with low dead weight
• 3 mm wall thickness of 50 mm main tube
• High load capacity at free spans up to 20 m.
• TüV approved
• High wear resistance

• Height: 400 mm / 15.75 in
• Width: 290 mm / 11.42 in
• Main Tube: 50 x 3 mm / 1.97 x 0.12 in
• Braces25 x 3 mm / 0.98 x 0.12 in
• Weight~9 kg/m / ~6 lbs/ft
• Pin Position: Horizontal or Diagonal
• Material: EN AW-6082 T6
• Connection: CS2-CON
