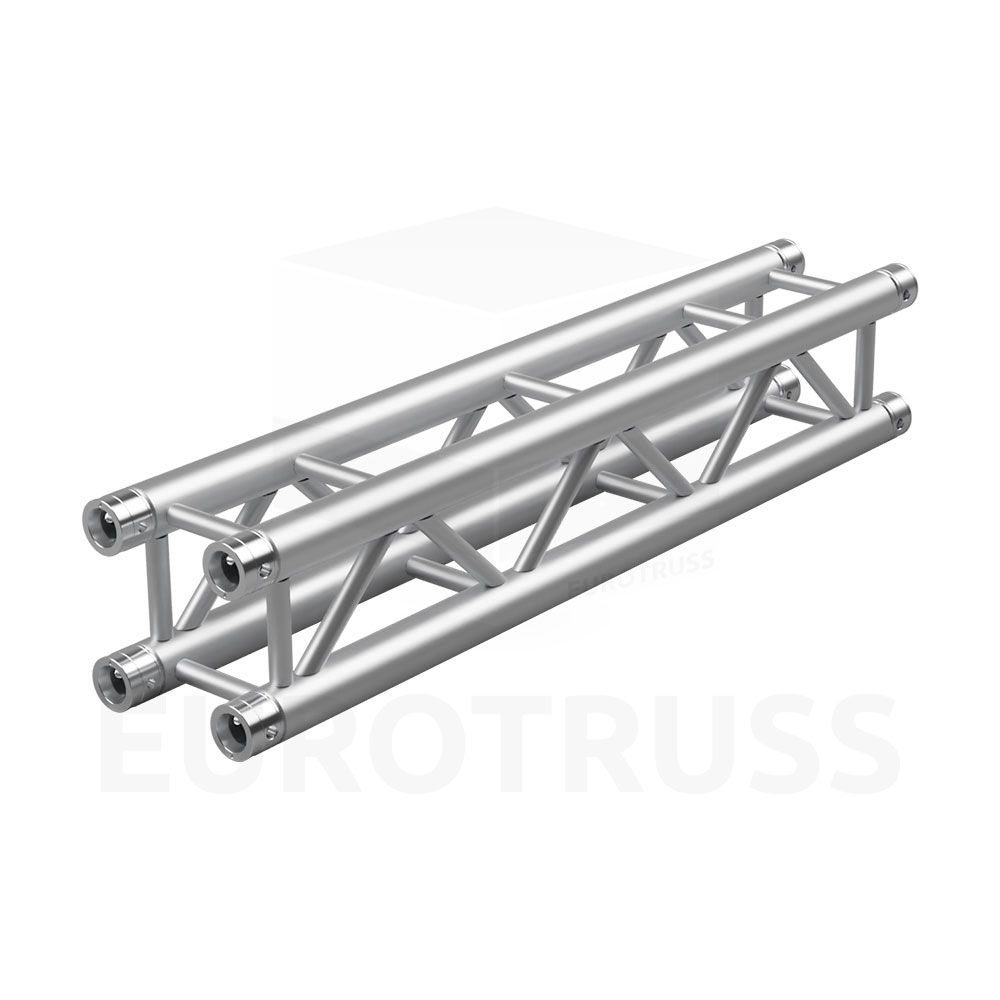

The HD24 box truss is the little brother of the HD34 measuring only 195×195 mm. Its size combined with its loading capacity make it the perfect fit for use in situations with limited available height where medium to heavy loads are required, up to free spans of 14m.

The truss is made of 50×3 mm main tube, build with the standard conical connector and with its small size, it is also the perfect truss for minimum storage and trucking space.

The horizontal pin position assures a fast and easy setup. Corner Blocks are available.

Made with the fast CS1 connection system.

Features

• Special bracing pattern
• Strong main tube & standard CS1-CON
• Horizontal pin position which ease and fasten installation
  Universal Corner Block system allowing you to make all directions
• Low headroom
• TüV approved

• Height: 195 mm (7.7 in)
• Width: 195 mm (7.7 in)
• Main Tube: 50 x 3 mm (1.91 x 0.12 in)
• Braces: 20 x 2 mm (0.78 x 0.12 in)
• Weight: ~5 kg/m (3.35 lbs/ft)
• Pin Position: Horizontal
• Material: EN AW-6082 T6
• Connection: CS1-CON
