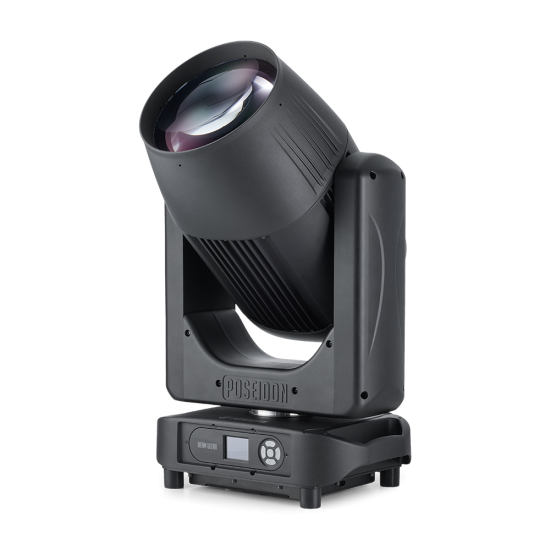

CLF - Poseidon Beam Ultra

CLF - Poseidon Beam Ultra

The CLF Poseidon Beam Ultra is a cutting-edge member of the Poseidon IP65 rated family of lighting fixtures designed for outdoor use. Based on the known Aorun, the Poseidon Beam Ultra has an exceptional performance and durability what stands out as the fastest and most powerful outdoor beam in its class. With its IP65 rating, it’s well-protected against both moisture and dirt, making it an ideal choice for a wide range of outdoor applications that demand superior beam effects.

Its feature set is both fast and precise, offering a range of capabilities that enhance its versatility. Some key features are CMY mixing, double prism wheel with a unique PRISM shake function, 190 mm wide 1.9°lens optics.

One of the standout features of the Poseidon Beam Ultra is its elegantly designed, lightweight housing, which is not only visually appealing but also highly functional. Special motors embedded within the housing facilitate exceptionally fast and precise pan and tilt movements, allowing for intricate and engaging lighting displays.

To facilitate user interaction, the Poseidon Beam Ultra is equipped with a bright LCD display that provides convenient access to on-board settings and is offline programable.

Keyfeatures:

• IP65 dust and water protection
• 200mm lens for 1.6° beam
• CMY and color wheel
• Gobo wheel, frost and 2 prisms
• Light weight slim housing

Specifications

Power

• Input voltage: 100 – 240VAC, 50 / 60 Hz
• Standby power: 70 W
• Total power consumption: 530W
• Typical current: 5.3A
• COS φ
• Power plug type: Seetronic Powercon TRUE1

Source

• Lamp: Ushio NSL301 (CLF Poseidon Lamp Kit)
• Lamp life expectancy: 2000 hours / normal
• Color temperature: 7360 K

Optical

• Beam angle: 1.6°

Photometric

• Output @10M: 910000 lux
• Output @50M: 36000 lux

Effects

• Color: CMY
• 14 + open color wheel
• Gobo: 17 + open fixed gobo wheel
• Prism: 8-facet round, 24-facet round
• Frost: 6° linear
• Dimmer: 16-bit 0-100%
• Shutter: 12 Hz/second, random
• Pan: 540°
• Tilt: 270°
• Focus: 16-bit motorized

Heat management

• Cooling type: Regulated Fans
• Max. ambient temp.: Ta max=40°C
• Min. ambient temp.: Ta min=-20°C

Control

• Control protocol: USITT DMX512/1990
• DMX channels: 21
• RDM: Yes
• WDMX: Yes
• DMX Input: 5-pin (3 Pin optional)
• sACN: No

Hardware

• Interface: LCD Display with battery for offline programming
• Software upload: DMX, via upload tool

Installation

• Mounting orientation: Any
• IP rating: IP65

Housing

• Safety attachment point: Yes
• Position lock: Tilt

Physical

• Net product weight: 25,8 kg
• Length: 244 mm
• Width: 372 mm
