BenQ - LU960UST - Installation Projector
Ca. 3 weken*
BenQ - LU960UST - Installation Projector
- Flexible Installation: Support wide corner fit adjustment with 0.25 T/R ultra short throw
- Amazing Colour Accuracy: sRGB Mode for 92% Rec 709 colour accuracy
- Fast Mode: Latency<17ms (@WUXGA/60Hz) response enables realistic simulation and gaming
- White Balance Adjustment in Factory: White balance calibration for seamless blending
- Maintenance-Free Laser: Dustproof sealed laser engine with 30,000 hours of life at full power
Revolutionary BlueCore Laser Technology
Extending its full line of revolutionary BlueCore laser projectors, the world’s No.1 DLP brand BenQ presents LU960UST, especially designed for ultra short throw fixed lens installation and reserves installation flexibility to merge into limited space.
Ultra Short Throw Design for Unobstructed Viewing Without Space Constraints
Producing larger-than-life images in tight spaces with a 0.25 ultra short throw ratio, LU960UST eliminates distracting shadows and glare for viewers to move freely in front of the screen while enjoying immersive viewing experiences in places with space limitation or retail application with a lot traffic.
Lag-Busting Response with Fast Mode
Based on expertise gained from experience with near-zero latency displays used in gaming, LU960UST employs Fast mode functions to provide latency as low as 16.67ms. LU960UST can serve the fast-moving dynamic or interactive scenes such as in immersive cycling simulation and amusement park theaters very well.
24/7 Operation
BenQ laser light source supports continuous 24/7 operation and is suitable for public display applications in museums and exhibitions. Users can choose from three different light source modes to optimize energy consumption and delivers up to 70,000 hours under Dimming Mode.
Display
- Brightness (ANSI lumens): 5200
- Native Resolution: WUXGA (1920x1200)
- Native Aspect Ratio: 16:10
- Contrast Ratio (FOFO): 3,000,000:1
- Display Color: 30-bit (1.07 billion colors)
- Light Source: Laser
- Light Source Life: a. Normal 20000 hrs, b. ECO 38000 hrs, d. Dimming 75000 hrs
Optical
- Throw Ratio: 0.25
- Zoom Ratio: Fixed
- Lens: F/# = 2.0,f = 2.44 mm
- Projection Offset (Full-Height): 122%
- Keystone Adjustment: 2D, Vertical ± 30 degrees; Horizontal ± 30 degrees,
- Rec. 709 Coverage: 92%
- Picture Modes: 3D, Bright, DICOM SIM, HDR10, HLG, Presentation, sRGB, User 1, User 2, Video
Compatibility
- Resolution Support: VGA (640 x 480) to 4K UHD (3840 x 2160)
- Horizontal Frequency: 15K~135KHz
- Vertical Scan Rate: 23~120Hz

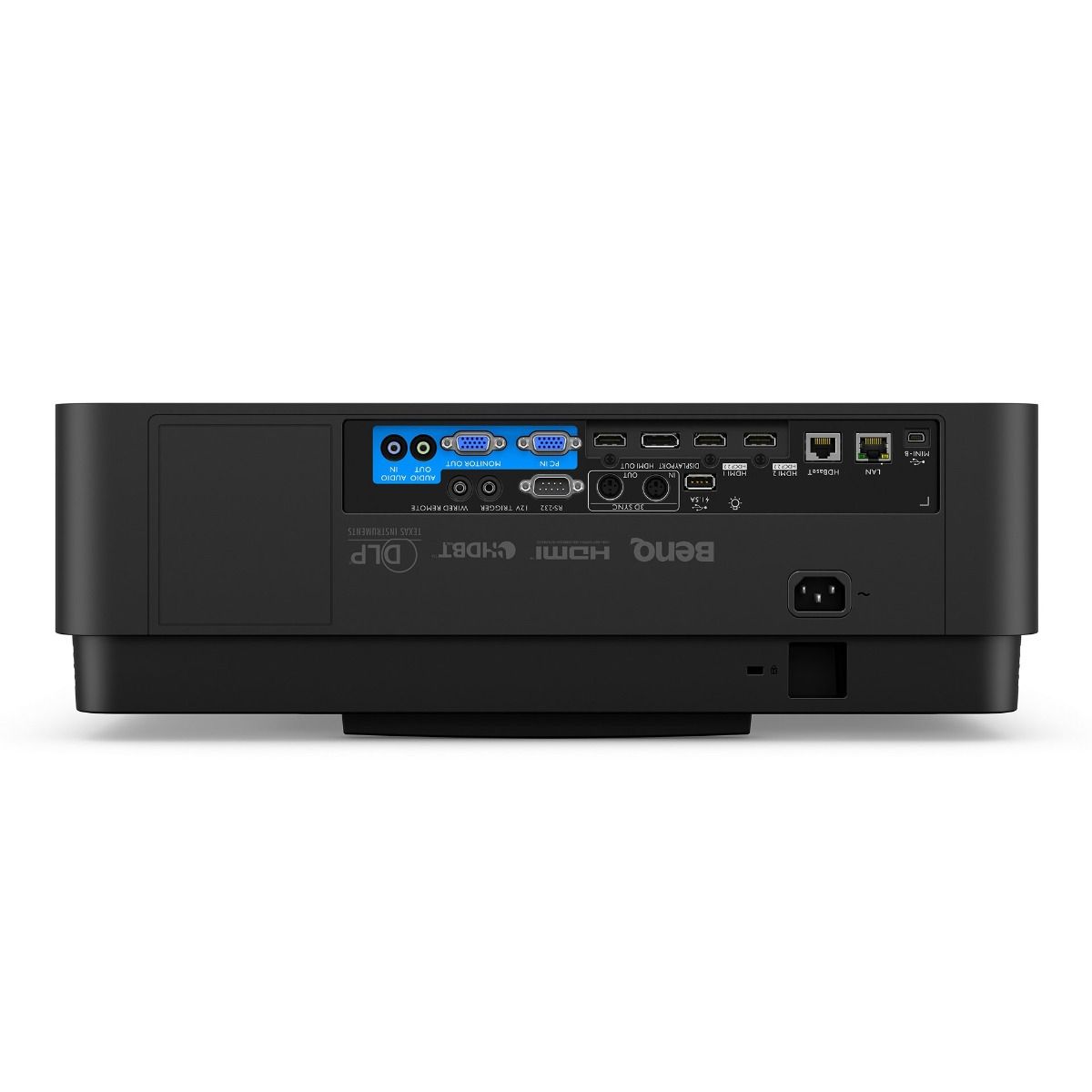

I/O Interface
- PC in (D-sub 15pin): (x1), PC in-1
- Monitor out (D-sub 15pin): (x1)
- HDMI in: (x2), HDMI-1 (2.0a/HDCP2.2), HDMI-2 (2.0a/HDCP2.2)
- Monitor out (HDMI): (x1)
- Display Port: (x1)
- HDBaseT (RJ45): (x1), Control/Video/Audio
- 3D Sync in: (x1)
- 3D Sync out: (x1)
- USB Type A: (x1), USB Type A-1 (2.0/Power Supply1.5A)
- USB Type Mini B: (x1), USB Type Mini B-1(service)
- RS232 in (DB-9pin): (x1)
- Wired Remote in (3.5mm Mini Jack): (x1)
- DC 12V Trigger (3.5mm Jack): (x1)
Audio
- Speaker: (x1), 10W
- Audio in (3.5mm Mini Jack): (x1), 1
- Audio out (3.5mm Mini Jack): (x1), 1
Environment
- Operating Temperature: 0~40℃
- Power Supply: AC 100 to 240 V, 50/60 Hz
- Typical Power Consumption (110V): 450W
- Stand-by Power Consumption: <0.5W
- Network Stand-by Power Consumption: <2W
Accessories
- Remote Control w/ Battery: RCA024
- Power Cord (by region): x1 (1.8M)
- 3D Glasses: (Optional), DGD5
- Installation Guide: 1 (8L)
- Warranty Card (by region): Yes
- Anti-dust Filter: Yes, C SKU only
- Universal Ceiling Mount: (Optional), Yes, CMG3
Projection System
- Projection System: DLP
| Merk | BenQ |
|---|
