Aurora - DXW-2-RX1-B-K

Aurora - DXW-2-RX1-B-K - HDBaseT™ receiver wall plate

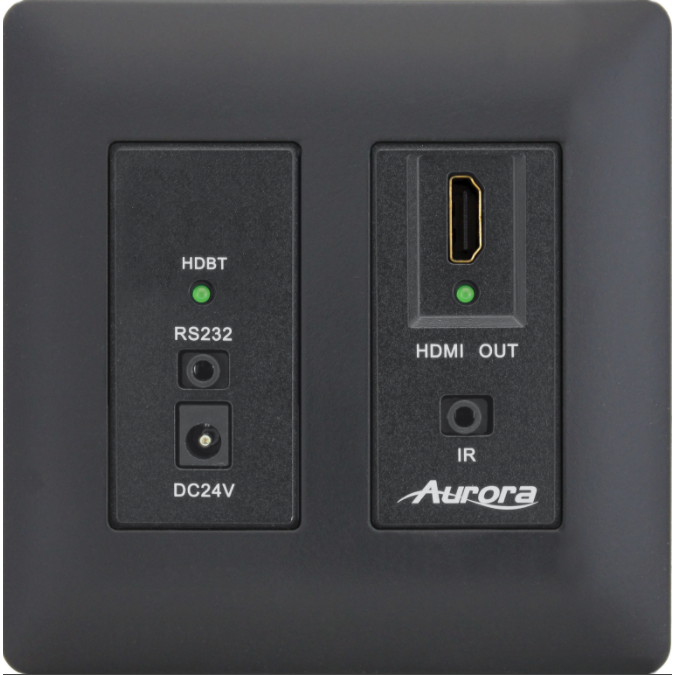

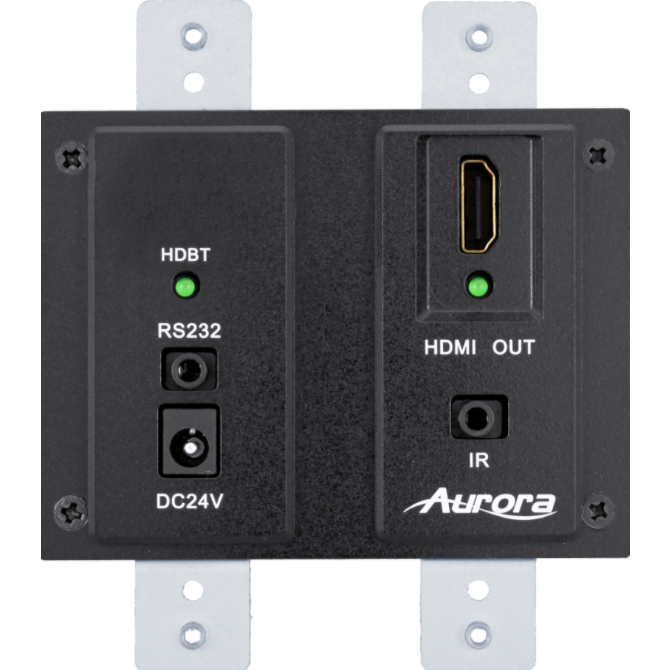

The DXW-2-RX1 is a 2 gang Decora™ style HDBaseT receiver wall plate with HDMI Output, RS-232, and IR. Using a single CAT 5e/6/6A cable the signals can be extended up to 230′.  Power can be received remotely or generated locally and sent to transmitter unit. To simplify even further the unit can be powered from the front or rear and is compatible with PoH standards. The DXW-2-RX1 is perfect for mounting behind displays or in any area that requires a neat mounted solution.

Available in White or Black.

• 1 HDMI Output
• HDCP Compliant
• RS-232 up to 115k baud
• IR bi-directional
• HDBaseT 230ft Extension

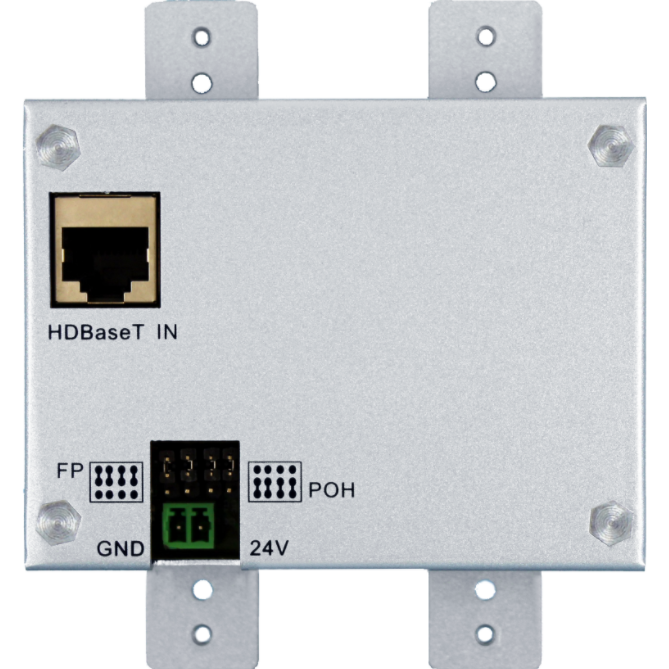

• Remotely or Locally Powered
• Fits in Standard 2 Gang Outlet Box with Decora® style wall plate
• Low depth for floor and table boxes

Video

• HDMI Compliance: HDMI 3D
• HDCP Compliant: Yes
• Distance: 230ft over one CAT 5e/6/7 cable (1080p 60Hz 48bit)
• Max Resolution: 4K x 2K
• Color Depth: 48bit

Connectors

• Digital Video: (1) HDMI output

Control

• IR: IR pass through for controlling remote devices
• Serial: Capable of being controlled remotely through compatible transmitter

Physical & Power

• Dimensions: 2 Gang 3.728” x 4.331” x 1.33” Note: Wall box portion depth 1.02”
• Weight: 1lbs
• Power: 24VDC & PoH
