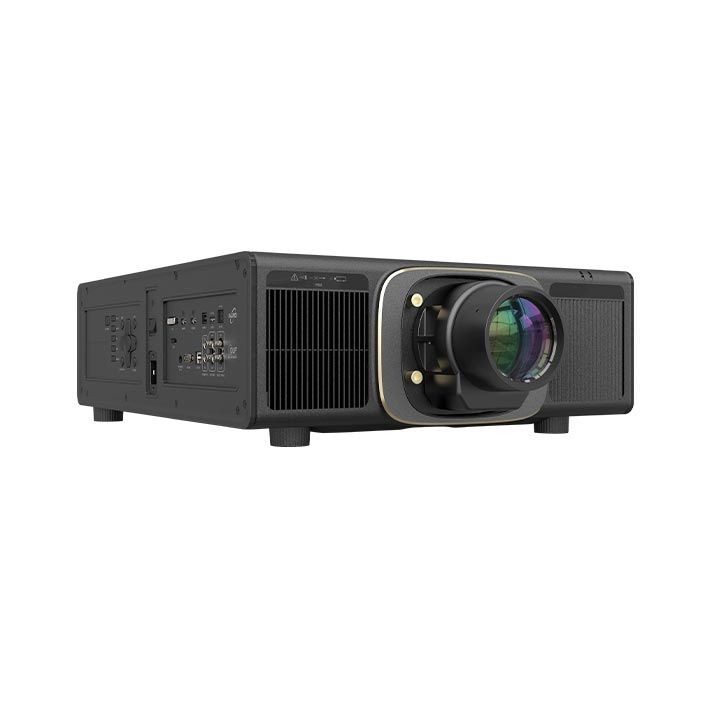

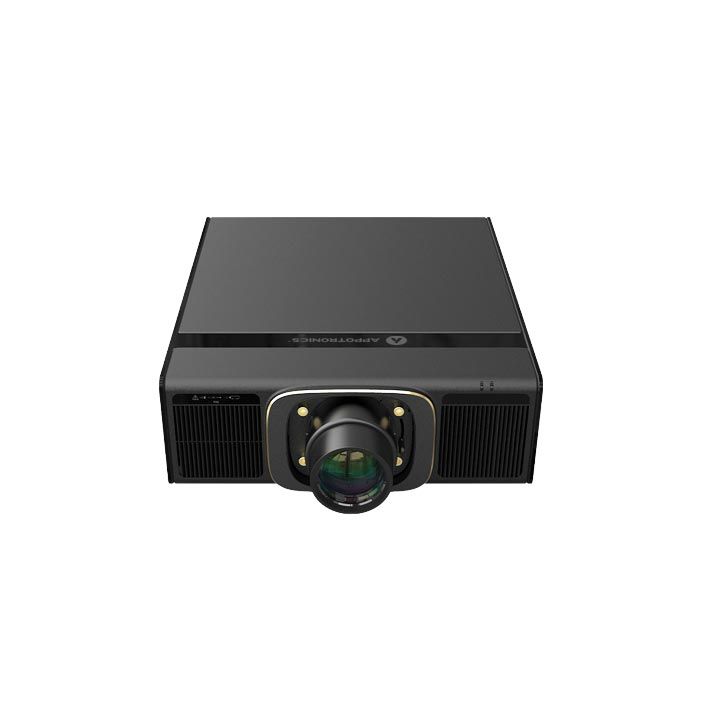

Appotronics | AL-SU25KAP - Projector

Appotronics | AL-SU25KAP

The AL-SU25KAP delivers 25,000 lumens of laser brightness at WUXGA resolution, powered by ALPD® 5.0 technology. Part of the S Pro series, it is designed for large-scale professional installations where maximum brightness, accurate color reproduction, and operational reliability are essential.

Color Performance

Powered by ALPD® 5.0 and a full RGBX® laser light source, the AL-SU25KAP delivers exceptional color accuracy and saturation across demanding visual applications. The projector covers 120% REC.709, 100% DCI-P3, and up to 90% BT.2020 color gamuts, ensuring vivid and lifelike images that remain consistent even at very high brightness levels.

A red ratio of ≥22% provides significantly richer reds than conventional laser projectors, which typically achieve around 7%. Combined with a contrast ratio of ≥100,000:1 and Adaptive HDR with HDR10 support, the AL-SU25KAP produces deep blacks, bright highlights, and impressive image depth, making it suitable for premium live events, immersive experiences, and large venue presentations.

Installation

Despite its 25,000-lumen output, the AL-SU25KAP remains compact and practical for rental, staging, and fixed-installation environments. A wide range of optional lenses, from ultra-short throw to long throw, allows the projector to adapt to virtually any venue configuration.

Built-in geometric correction supports keystone, corner, curved surface, and multi-point adjustments up to 33×33 points, simplifying installation on unconventional projection surfaces. Motorized lens shift with up to ±50% vertical and ±20% horizontal adjustment provides additional positioning flexibility. Horizontal and vertical edge blending enable seamless multi-projector setups for large-scale displays and projection mapping projects.

DLP-Link 3D support, infrared 3D output, 3D synchronization, and delay adjustment make the projector suitable for simulation systems, theme parks, museums, and immersive entertainment applications.

Reliability

The optical engine is fully sealed and IP5X-rated, protecting critical components from dust ingress and eliminating the need for filter maintenance. This significantly reduces service requirements while maintaining long-term image quality.

The ALPD® 5.0 laser light source is rated for more than 20,000 hours of operation with minimal degradation in brightness or color performance. A redundant multi-module laser architecture helps maintain image output even in the unlikely event of a laser module failure, while dual-channel signal backup automatically switches to a secondary input source if the primary signal is interrupted, ensuring uninterrupted operation in mission-critical environments.

The result is a high-brightness WUXGA projector that combines cinema-grade color performance, extensive installation flexibility, and dependable 24/7 operation for demanding professional applications.

• Display Technology: DLP™ chip×1, DLP™ projection system
• Panel Size: 0.8" DMD
• Resolution: 1,920×1,200 (WUXGA)
• Brightness: 25,000 lm / 26,000 lm (Center)
• Light Source: ALPD® 5.0 RGBX® Full-Color Laser
• Light Source Lifetime: 20,000 h
• Native Contrast: ≥1,600:1
• Full On/Off Contrast: ≥100,000:1
• Uniformity: ≥95%
• Color Gamut: 120% Rec.709 (Default), 100% DCI-P3, 90% BT.2020
• Optional Lenses: 0.36:1; 0.53–0.63:1; 0.7–0.85:1; 0.85–1.1:1; 1.14–1.51:1; 1.5–2.4:1; 1.69–2.42:1; 2.4–3.8:1; 3.8–6.8:1
• Blending: Horizontal and vertical edge blending
• Screen Size: 100"–800"
• Geometric Correction: Corner, keystone, curve, multi-point (up to 33×33 points)
• Lens Shift: Vertical ±50%, Horizontal ±20%, Motorized
• Signal Interfaces: HDMI×2 (4K/60P); DVI (1,920×1,200/60P); HDBaseT (1,920×1,200/60P)
• 3D Sync: 3D SYNC in; 3D SYNC out; IR 3D out
• Dynamic Contrast Sync: MULTI SYNC in; MULTI SYNC out

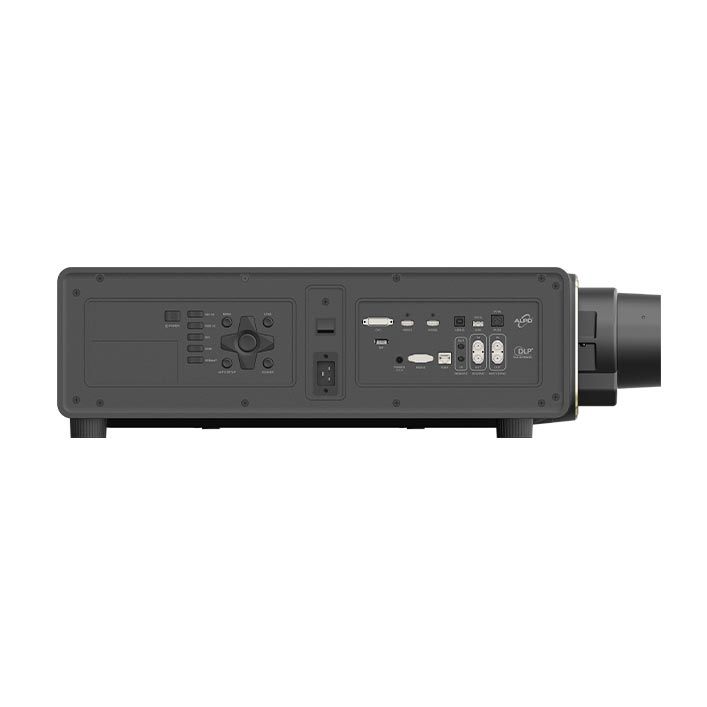

• Control Interfaces: Ethernet RJ45; Serial RS232; Infrared Extension Cable Port; Remote IR in/out; Debug USB-B
• Other Interfaces: USB Expansion Port; USB-A; 12V External Power Supply Port (12V⎓1A)
• Power Supply: 100–240V AC 50/60Hz
• Typical Power Consumption: AC 100–120V: 2,000W; AC 200–240V: 2,200W
• Standby Power: 0.5W
• Installation: 360°
• Operation Noise: 47 dB (Standard)
• Dimensions (L×W×H): 625×533×178 mm (24.6"×21"×7")
• Weight: 35 kg (77.2 lbs)
• Operating Temperature: 0–40°C (32–104°F)
• Storage Temperature: -10–60°C (14–140°F)
• Humidity: 10%–80% RH (No Condensation)
