VMB - TE-074 Black

VMB - TE-074 Black

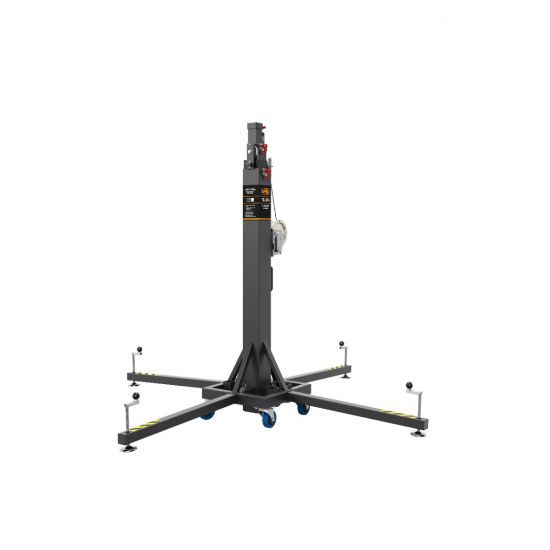

The telescopic lift TE-074 offers high performance in accordance with the high standards of VMB. It consists of four large steel profiles, with high resistant, anti-torsion steel cable and guided through reinforced pulleys. It is finished with e-poxy powder paint. It is capable of lifting 250kg to a maximum height of 5.35m. Can be used both indoors and outdoors, such as in shows, concerts, orchestras, discos, etc.

It has 4 stabilizers, perfect for difficult terrains with a certain slope. An RH-1 transport kit can be installed , to be able to transport the lifter in vans, trucks, etc. with the lifting tower lying horizontal. Safety is the strong point of VMB, thanks to our patented ALS locks, with high strength steels, makes it impossible for the lifter to collapse in the unlikely event of cable breaking. A wide range of accessories are available.

• Max. height: 5.35m (17.5′)
• Max. Load: 250Kg (551 lb)
• Safety: ALS (Automatic Lock System)
• Work surface: 1.53 x 1.53m (5.02 x 5.02′)
• Folded height: 1.74m (5.7′)
• Winch: 900Kg
• Adaptor: 55mm (PSU-074 / PSA-02)
• Weight: 91Kg (200lb)
