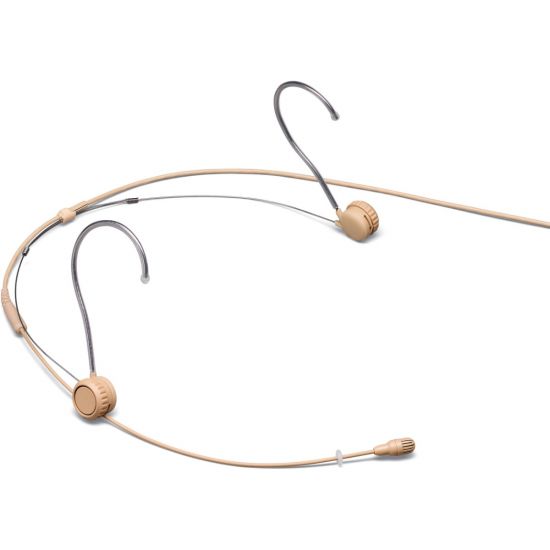

Shure | TH53B/O-MTQG - TH53 Headset, omnidirectional

Shure - TH53 Headset, Omnidirectional, 1.6mm Cable and MTQG

The TwinPlex™ TH53 offers the natural sound quality of the new TwinPlex element combined with the ease of a light and fully adjustable headset frame. With an innovative clutch system, the TH53 headset allows for quick adjustment in boom arm length and pitch—all with a simple turn of a knob. Plus, switchable sides and a durable 1.6 mm cable with redundant ground round out this professional headset that outperforms the competition in reliability, audio quality, and comfort.

In dialogue or monologue. Song or speech. A single word can affect the whole story. Shure TwinPlex stands up to the toughest conditions to make every word a clear statement of quality. Natural audio at high or low frequency, the innovative dual-diaphragm captures the complete weight of your voice. And the capsule design maximizes effective surface area in an easy-to-conceal package. So sound suits performer, not the other way around.

No more “sweat-outs.” The superhydrophobic coating keeps perspiration from upstaging the sound. And the medical-grade cable technology flexes to fit the costume design and the demanding schedule. So your headset rises to the challenge, night after night.

Features

• Comfortable, lightweight, and fully adjustable headset for use in theater, broadcast, and speech applications
• Innovative clutch system allows for fast boom arm length and pitch adjustment
• Twice the surface area of other subminiature microphones for pristine, natural response and robust low-frequency response due to the patent pending dual-diaphragm design
• Improved off-axis consistency yields accurate reproduction regardless of vocal source position or movement
  Best-in-class low self-noise and dynamic range for cleaner audio production
• Interchangeable sweat- and moisture-resistant frequency caps prevents sweat-outs due to an invisible syperhydrophobic nanoscopic coating
• Paintable 1.6 mm cable that is immune to memory effect and kinks
• Dual redundant ground in cable serves as secondary shield for longevity
• Sound signature: Natural
• Sensitivity: Low
• Colors: Tan, Cocoa, Black
• Connectors: LEMO, MTQG/TA4F, MicroDot, NC (bare wire)
• Accessories: Ships with accessories and storage case

• Microphone Capsule: Dual-Diaphragm, Prepolarized Condenser
• Polar Pattern: Omnidirectional
• Frequency Response: 20 Hz to 20 kHz
• Sensitivity at 1 kHz: -45.0 dBV (5.62 mV)
• Self-Noise, A-Weighted, Equivalent Acoustical: 24.5 dB SPL-A
• Signal-To-Noise Ratio: 69.5 dB
• Output Clipping Level: 3.0 dBV,1 kHz, at 1% THD, typical
• Maximum SPL: 142.0 dB SPL, 1 kHz at 1% THD, typical
• Dynamic Range: 117.5 dB, typical
• Microphone Current Draw: 120 to 240 µA, typical
• Bias Voltage Recommended Operating Voltage: 5 VDC
• Housing: Molded ABS
• Polarity: Positive pressure at diaphragm leads to negative voltage with respect to ground
• Cable Diameter: 1.1 mm
• Cable Length: 66 in. (1.67 m)
• Microphone Length: 13.5 mm
• Microphone Diameter: 5.6 mm
• Net Weight with Cable: 12.0 g (0.42 oz.)
