Shure | SM35-TQG - Condenser Headset Microphone, cardioid

Shure - SM35-TQG

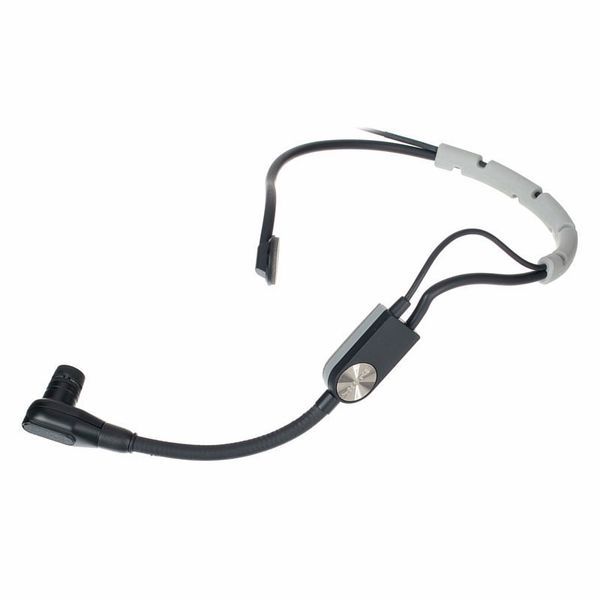

The SM35 Performance Headset Condenser Microphone gives multi-instrumentalists the freedom to express themselves without sacrificing sound quality. A tight, unidirectional cardioid polar pattern provides excellent rejection of off-axis sound sources to prevent feedback and signal bleed onstage, whether in use in small clubs, large installations, or arena tours.

Features

• Wireframe headset fits securely and comfortably for active performers and multi-instrumentalists

• Tight, unidirectional cardioid polar pattern rejects signal bleed and feedback for use on loud stages and behind floor monitors

• Flexible gooseneck design allows for optimized placement that further improves source isolation

• Lightweight and low-profile form enables comfortable, long-wearing use

• TA4F (TQG) connector is compatible with any Shure wireless bodypack

• Locking snap-fit windscreens tame plosives, breath, and wind noise for clean and intelligible sound

• Tailored frequency response refined for clear, crisp vocal reproduction

• Included in BLX and GLX-D® wireless systems, renowned for their ease of use and reliable performance

• Legendary Shure precision engineering for durability and performance

• Type: Electret Condenser
• Frequency Response: 40 Hz to 20,000 Hz
• Polar Pattern: Unidirectional (Cardioid)
• Output Impedance: 100 Ω, @ 1 kHz
• Sensitivity: -57.8 dBV/Pa, @ 1 kHz, 1000 Ω load
• Signal-To-Noise Ratio [1]: 59.2 dB, @ 1 kHz, 1000 Ω load
• Maximum SPL [1]: 151.3 dB, 1000 Ω load, @ 1 kHz, 1% THD
• Dynamic Range [1]: 116.5 dB, @ 1 kHz, 1000 Ω load
• Self Noise [1]: 34.8 dB SPL-A, 1000 Ω load
• Power Requirements:
• TA4F: +5 V DC (nominal) , 10 V maximum (DC bias)
• XLR connector: 12 to 52 V DC, phantom power
• Polarity:
• TA4F: Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1
• XLR: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
• Cable: 1.1m (45in.)
• Connector: TA4F or XLR
• Weight: 72 g (2.53 oz.)
