The SLXD5+ single channel portable wireless receiver is at home on top of your camera or in an audio bag providing efficient long-range UHF transmission and easy-to-use setup features to deliver wireless excellence, wherever required. Wide-tuning SLXD+ transmitters and receivers stay in sync courtesy of a dedicated ShowLink® Ease control link. Manage interference, scan for new channels and update for clear transmission automatically. Also monitor and configure via a paired mobile device.

TRUSTED BY PROFESSIONALS, ENGINEERED FOR EVERYONE.

• Powerful, portable digital wireless receiver for on-camera cold shoe mounting and audio bag use
• Transparent 24-bit digital audio quality with >118 dB dynamic range
• Rock solid RF with 138 MHz wide-tuning range for greater geographical coverage:
• Up to 11 simultaneous systems in 6 MHz TV bands
• Up to 14 simultaneous systems in 8 MHz TV bands

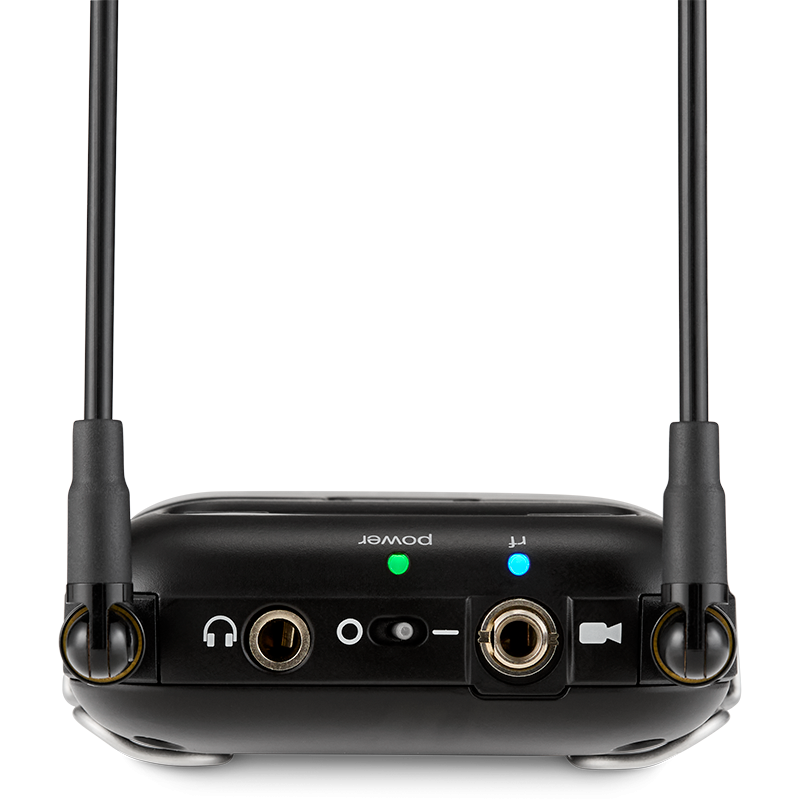

• Dual 1/8” outputs including a headphone monitor out and switchable line/mic output
• Automatic Setup – once linked, SLX-D+ receivers and transmitters stay connected, despite any RF interference
• With ShowLink® Ease, transmitter parameters can be adjusted remotely over the air from the linked receiver, including:
  • Changing the transmitter frequency once open frequency is identified
  • Adjust power output level
  • Lock and unlock transmitter controls
  • Transmitter firmware updates
• Use Multi-Mic Mode to scan and sync over IR multiple clean frequencies, and monitor multiple sources from a single receiver with user-configurable front-panel controls
• Monitor RF status and control receiver and transmitter parameters with Wireless Workbench desktop software, or remotely with the WWB Mobile app over Wi-Fi or Bluetooth
• Patented Shure Digital Feedback Reducer software is embedded in every SLX-D+ receiver, to automatically reduce unwanted audio feedback, should it ever occurEach SLX-D+ component and system ships with AES-256 Encryption
• installed, for complete and secure peace of mind

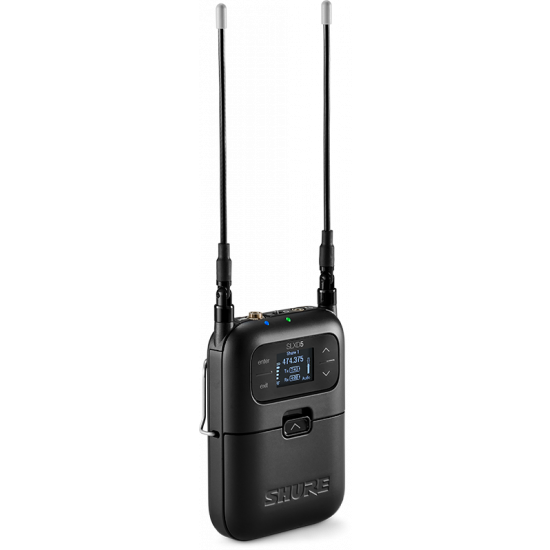

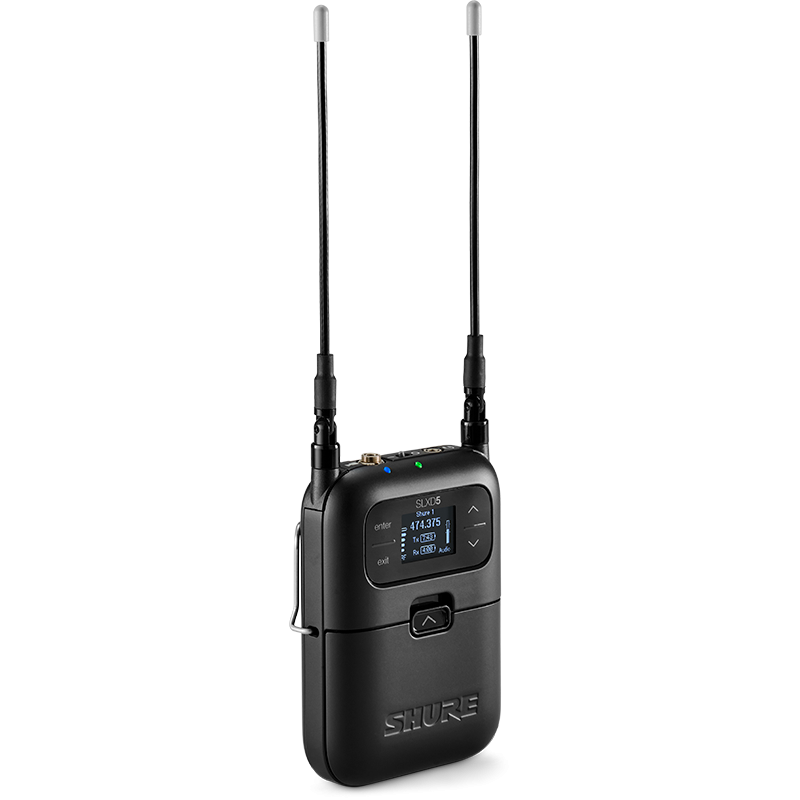

• Up to 5.5 hours of use from either 2 AA batteries (included) or optional Shure SB903 Li-ion rechargeable batteries and charging accessories
• Single-channel portable ergonomic design with rugged metal construction

• Product series: SLX-D+
• Optional Accessories: PA805
• Bias Via BNC: n/a
• Dante Audio Network Interface: n/a
• Network Ability: n/a
• Antenna Cascade: n/a
• Logic: n/a
• Line Mic Switch: n/a
• Phantom Power Protection: n/a
• Impedance: 50 Ω
• Operating Range: n/a
• Media Control System Connection: n/a
• Weight: 182 g
• Width: 68 mm
• Height: 107 mm
• Depth: 25.30 mm
• Component: wireless_receiver
• Logic output: false
• Frequency band: G65 (470–606 MHz) or K55 (606-694 MHz)
• On/Off switch: false
• Mute switch: false
