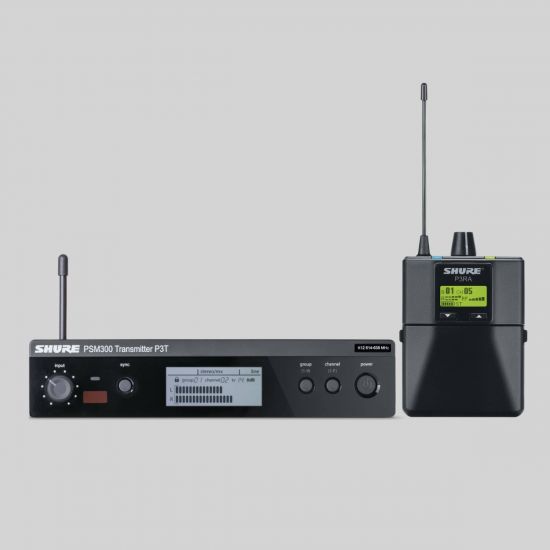

Shure | P3TERA215TWP - H20 (518-542 MHz) - PSM 300 Twinpack

Shure - PSM300 -  P3TERA215TWP H20

The PSM 300 Twin Pack Pro is the ideal monitoring solution for up to two performers that provides a convenient, durable metal construction multi-bodypack system-in-a-box (optional use with SB900B rechargeable battery) with SE215 Sound IsolatingTM earphones designed for clear, precise stereo mixes on stage.

Features

• Send two channels of audio wirelessly to performers onstage
• 24-bit digital audio provides clear, detailed sound
• Patented Audio Reference Companding sounds more like wired
• Up to 90 dB signal-to-noise ratio
• Exceptionally wide stereo separation
• Solid analog RF connection over a 300 ft (90 m) range
• Create a personal mix from the bodypack with MixMode® technology or stereo mode
• Frequency scan and IR sync quickly finds and assigns a clean channel
• Half-rack, single channel transmitter with included rack mount kit
• P3R bodypack systems available with SE112 Sound Isolating™ Earphones
• P3RA professional bodypack systems available with SE215 Sound Isolating™ Earhones

Includes

• 1x P3T

• 2x P3RA

• 2x SE215-CL

• RF Carrier Range: 488–937.5 MHz (Varies by region, see frequency range and output power table)
• Compatible Frequencies Per band: up to 15
• Tuning Bandwidth: 24 MHz maximum (Note: varies by region)
• Operating Range Environment dependent: 90 m (300 ft)
• Audio Frequency Response: 38 Hz–15 kHz
• Signal-to-Noise Ratio A-weighted: 90 dB (typical)
• Total Harmonic Distortion ref. ±34 kHz deviation @1 kHz: <0.5% (typical)
• Companding:  Patented Shure Audio Reference Companding
• Spurious Rejection ref. 12 dB SINAD: >80 dB (typical)
• Frequency Stability:  ±2.5 ppm
• MPX Pilot Tone: 19 kHz (±1 Hz)
• Modulation: FM*, MPX Stereo (ref. ±34 kHz deviation @ 1 kHz)
• Operating Temperature: -18 °C (0 °F) to +63 °C (145 °F)
