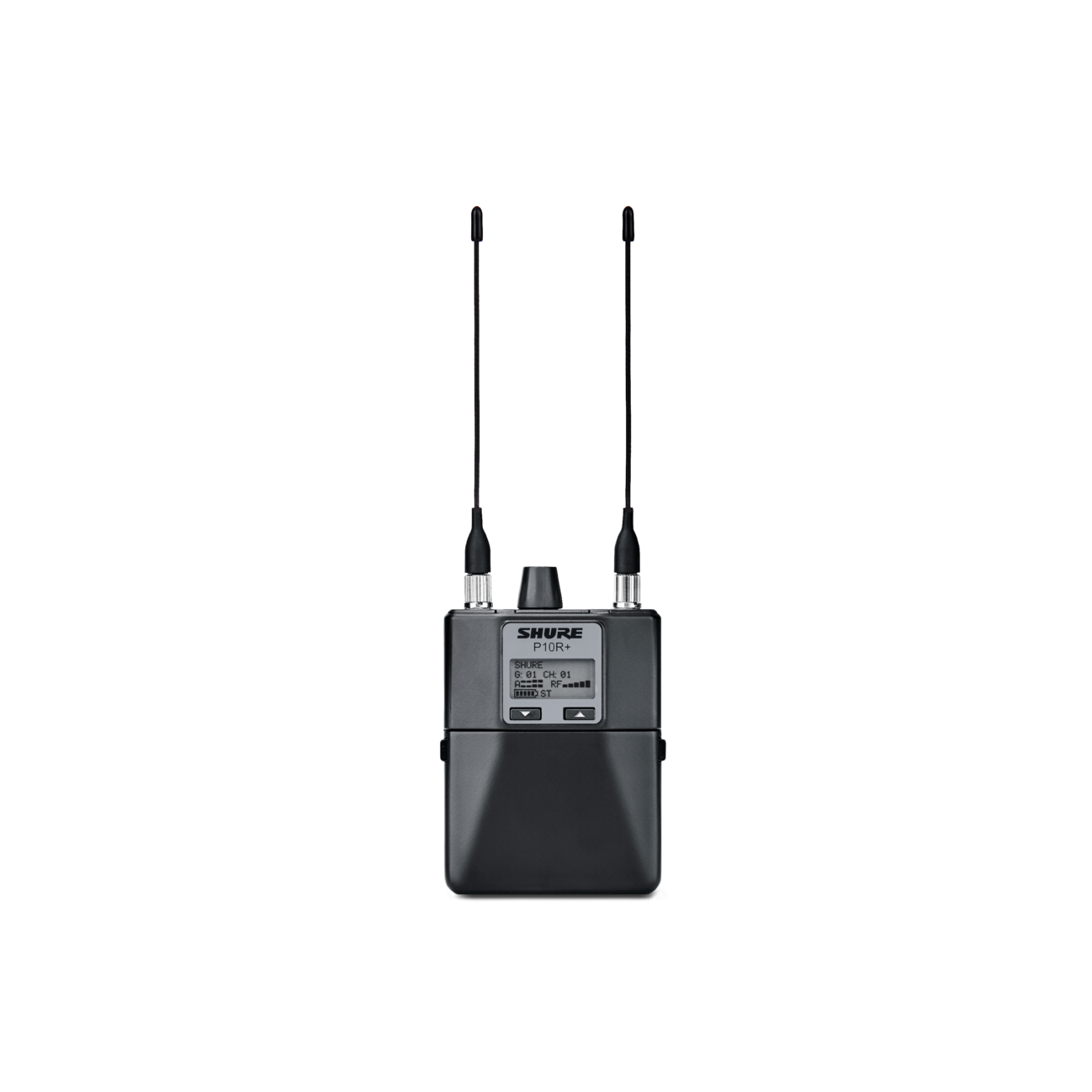

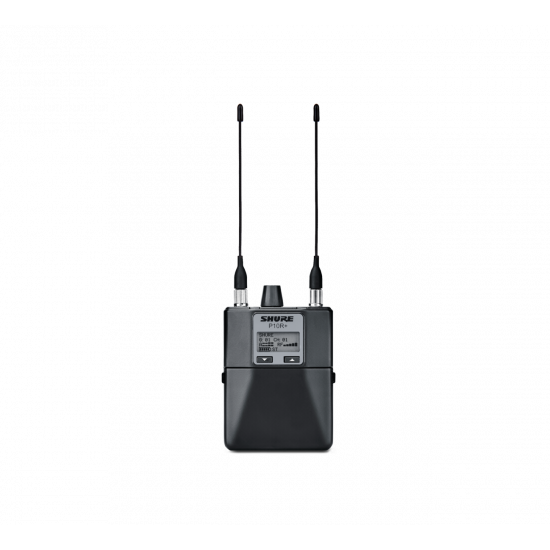

Shure | P10R+ - J8E (554-626 MHz) - PSM 1000 Bodypack

Shure - P10R+ - J8E (554-626 MHz)

The P10R+ is a low profile, diversity bodypack receiver for use with the PSM® 1000 Wireless Personal Monitor System. It offers premium features like full bandwidth RF scan and Automatic RF Gain Control for unparalleled signal stability and channel availability, all packed in the slimmest form factor available. CueMode allows monitoring of different stage mixes and storing of up to 20 separate channels from one bodypack for quick and easy mix reference.

Optional advanced rechargeability eliminates the need for disposable batteries and provides extended usage times with reliable battery life, cycle count, and health metering.

Touring-Grade Design and Performance

• Twin-antenna diversity bodypack receivers with advanced digital signal processing technology dramatically improve signal reception and increase range
• Networked control via Ethernet connection vastly simplifies setup for high channel counts and enables remote control via Wireless Workbench software
• CueMode allows monitoring of different stage mixes and storing of up to 20 separate channels on one bodypack for quick and easy reference
• MixMode^® technology combines two separate audio channels for simultaneous listening in both ears, or transmit two independent IFB program feeds
• Compatibility with PSM® 900 receivers (in the same frequency range) facilitates streamlined inventory management for rental and touring needs

Robust RF Performance and Networked Control

• Precision front-end RF filtering significantly reduces RF interference for a cleaner, stronger RF signal, fewer dropouts, and fewer audible artifacts
• Automatic RF gain control prevents signal distortion due to RF overload before it can affect performance
• Networked frequency coordination simplifies setup for high channel counts.
  • Full bandwidth scan from the P10R+ bodypack receivers finds clean, compatible frequencies and provides a graphic spectrum plot viewable from the bodypack menu screen
  • IR sync enables you to send the identified frequencies and spectrum plot to the P10T transmitter directly

Exceptional Audio Quality

• Advanced digital signal processing technology in the P10R+ receivers deliver more headroom, improved stereo separation, and higher audio fidelity
• Patented Audio Reference Companding offers natural and transparent sound

Advanced Rechargeability Options

• The SB900 lithium-ion rechargeable battery provides extended usage times and precise tracking of remaining life and charge cycle details
• The SCB800-US eight-bay charger brings up to eight SB900 batteries to full charge within two hours and has charge status LEDs for each battery
• The SBC200 dual-docking charger works with SB900A, PSM 900 (P9RA and P9RA+ only), PSM 1000 (P10R and P10R+ only), QLX-D^® Digital Wireless Systems, ULX-D^®Digital Wireless Systems, and Axient^® Digital (AD1 and AD2 only), available with and without power supply
• The SBC220 networked dual-docking charger works with SB900A, PSM 900 (P9RA+ only), PSM 1000 (P10R+ only), QLX-D Digital Wireless Systems, ULX-D Digital Wireless Systems, and Axient Digital (AD1 and AD2 only), available with and without power supply. When the SBC220 is connected to a network, the battery information for each transmitter can be viewed remotely.

• Tri-band RF Filtering: –3 dB at 30.5 MHz from the center frequency of each band
• Active RF Gain Control: 31 dB (adjusts RF sensitivity to provide more RF dynamic range)
• RF Sensitivity (20 dB SINAD): 2.2 μV
• Squelch Threshold: 22 dB SINAD (±3 dB), default setting
• Adjacent Channel Rejection: >70 dB
• Intermodulation Attenuation: >70 dB
• Blocking: >80 dB
• Image Rejection: >90 dB
• Audio Output Power (1kHz @ <1% distortion, peak power, @16Ω): 100 mW per output
• Minimum Load Impedance: 4 Ω
• Output Impedance: <1 Ω
• 4-Band Parametric EQ: Low Shelf Selectable Gain: ±2 dB, ±4  dB, ±6 dB @100 Hz
  Low Mid Selectable Gain: ±2 dB, ±4  dB, ±6 dB @160 Hz, 250 Hz, 400 Hz, 500 Hz, 630 Hz
  Selectable Q: 0.7, 1.4, 2.9, 5.0, 11.5
  High Mid Selectable Gain: ±2 dB, ±4 dB, ±6 dB @1 kHz, 1.6 kHz, 2.5 kHz, 4 kHz, 6.3 kHz
  Selectable Q: 0.7, 1.4, 2.9, 5.0, 11.5
  High Shelf Selectable Gain: ±2 dB, ±4  dB, ±6 dB @10 kHz
• Volume Limiter Selectable: 0 dB to -48 dB in 3 dB steps
  Volume Lock: Selectable: 0 dB to -70  dB
  Limits volume adjustment knob.
  Selected value analogous to volume knob increment.
• Battery Life: 4–6 hours (continuous use) with AA batteries
• Net Weight: 158 g, without batteries
• Dimensions: 99 mm x 66 mm x 23 mm (3.9 in. x 2.6 in. x 0.9 in.) H x W x D
