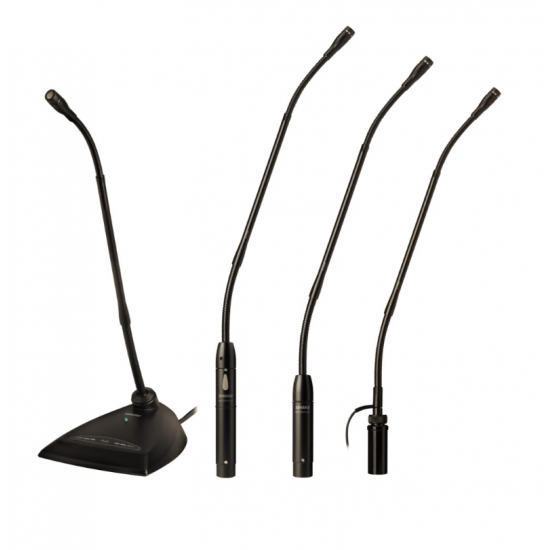

Shure | MX412/S - Gooseneck Microphone 305 mm, supercardioid

Shure - MX412/S - Super Cardiod Condenser Microphone

Gooseneck microphone offers interchangeable cartridges and enhanced length and flexibility for reliably clear sound reproduction. It features high sensitivity and maximum resistance to electromagnetic hum and RF interference, even over long cables.

Designed for easy replacement and available in cardioid, supercardioid and omnidirectional polar patterns, the interchangeable cartridges offer wide frequency response and accurate sound reproduction for a broad variety of applications, such as houses of worship, courtrooms and conference centres. Plus, the condenser cartridges fit every model in the Microflex product line for enhanced convenience and consistent sound.

Features

• Gooseneck length: 12 inch (30.5 cm)

• Interchangeable cartridges provide the right polar pattern for every application

• Locking flange mount for permanently securing microphone to surfaces

• Snap-fit foam windscreen

• Shock mount provides over 20 dB isolation from surface vibration noise

• Wide dynamic range and frequency response for accurate sound reproduction across the audio spectrum

• Balanced, transformerless output for increased immunity to noise over long cable runs

• New RF filtering

• Type: Electret Condenser
• Frequency Response: 50–17000 Hz
• Polar Pattern: MX412/S,  Supercardioid
• Output Impedance: 180 Ω
• Output Configuration: Active Balanced
• Sensitivity @ 1 kHz, open circuit voltage:
• Cardioid: –35 dBV/Pa(18 mV)
• Supercardioid: –34 dBV/Pa(21 mV)
• Maximum SPL: 1 kHz at 1% THD, 1 kΩ load:
• Cardioid: 124 dB
• Supercardioid: 123 dB
• Self Noise: A-weighted
• Cardioid: 28 dB SPL
• Supercardioid: 27 dB SPL
• Signal-to-Noise Ratio: Ref. 94 dB SPL at 1 kHz
• Cardioid: 66 dB
• Supercardioid: 68 dB
• Dynamic Range:1 kΩ load, @ 1 kHz, 96 dB
• Common Mode Rejection: 10 Hz to 100 kHz, 45 dB, minimum
• Clipping Level: at 1% THD, –6 dBV (0.5 V)
• Polarity: Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
• Mute Switch: MX412S, –50 dB minimum
• Environmental Conditions:
• Operating Temperature: –18–57°C (0–135°F)
• Storage Temperature: –29–74°C (–20–165°F)
• Relative Humidity: 0–95%
• Power Requirements: 11–52 V DC, 2.0 mA
