Shure | AD2/K9HSB - G56 (470-636 MHz) - Handheld

Shure - AD2/K9HSB - G56 (470-636 MHz)

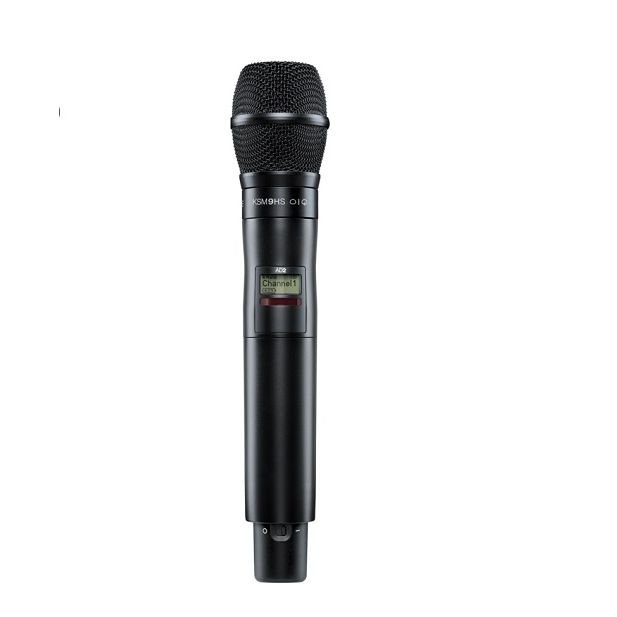

The AD2/KSM9HS is a handheld wireless microphone transmitter compatible with Axient Digital Wireless Systems.

With breakthrough RF performance and wide tuning up to 184 MHz, the AD2/KSM9HS puts professional-quality wireless digital audio within reach.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

Features

• Durable, moisture-resistant, lightweight metal case in black and nickel finish
• Up to 9 hours of runtime with SB920A rechargeable battery
• External contacts for docked charging with optional fully covered radome
• Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
• Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
• Encryption-enabled, secure transmission

• Mic Offset Range –12 to 21 dB (in 3 dB steps)
• Battery Type Shure SB900A Rechargeable Li-Ion or LR6 AA batteries 1.5 V
• Battery Runtime
  @ 10 mW : Shure SB900A: up to 9 hours
  Alkaline: 8 hours: See Battery Runtime Chart
• Dimensions: 256 mm × 51 mm (10.1 in. × 2.0 in.) L × D
• Weight: 340 g (12.0 oz.), without batteries
• Housing Cast: aluminum

Audio Input

• Configuration: Unbalanced
• Maximum Input Level
• 1 kHz at 1% THD   145 dB SPL, typical (SM58)
  Note: dependent on microphone type

RF Input

• Antenna Type: Integrated Single-Band Helical
• Occupied Bandwidth: <200 kHz
• Modulation Type: Shure Axient Digital Proprietary
• Power 2 mW, 10 mW, 35 mW
• See Frequency Range and Ouput Power table, varies by region
