Sennheiser - SK-XSW-E - Bodypack transmitter with mic/line

Sennheiser - SK-XSW-E - Bodypack transmitter with mic/line

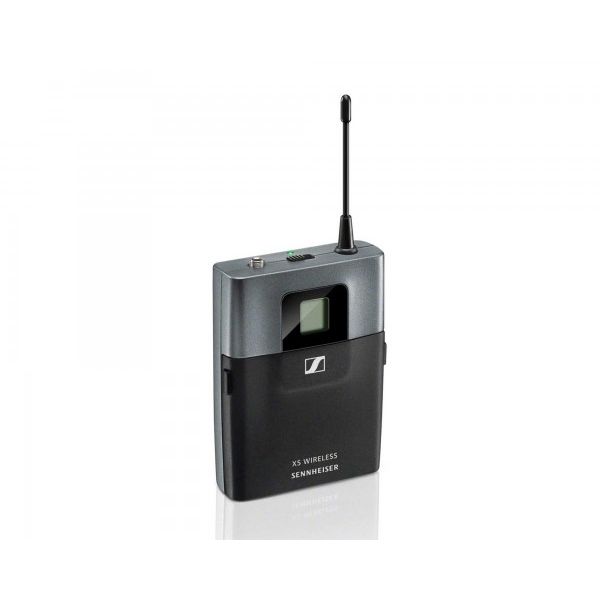

The Sennheiser SK-XSW Wireless Bodypack Transmitter is designed for use with Sennheiser's XSW wireless series. Perfect for adding a spare bodypack to your setup, or for replacing a broken unit, this compact transmitter is easy to use with versatile operability. The SK-XSW is equipped with both Mic and Line inputs, and features a handy switch for quick and simple muting. The rugged ABS housing boasts a sweat-resistant design, capable of enduring even the most demanding of stages and performance environments. The SK-XSW combines outstanding sound quality with an intelligent and intuitive design.

• 863MHz - 865MHz Wireless Operating Frequency
• Compact bodypack tramsitter for Sennheiser XSW wireless systems
• Intuitive operation with automatic frequency management
• Built to withstand even the most demanding stages and performances
• Designed to be paired with an EM-XSW1-E receiver

Specifications

• Operating Frequency Band: 863MHz - 865MHz (Sennheiser E Band)
• RF Output Power: 10mW
• AF Frequency Response:
  Line: 50Hz - 16kHz
  Mic: 80Hz - 16kHz
• Audio Input: 3.5mm jack socket
• Maximum Input Voltage: at 3 percent THD, at -30dB gain
  Line: Typ. 2.6V RMS
  Mic: Typ. 1.5V RMS
• Power Supply: 2 x AA size batteries, 1.5V
• Operating Time: Approx. 10 hours
• Adjustment Range of Transmitter Sensitivity: 0 to -30dB, adjustable in 10dB steps
• Housing Material: Rugged ABS
• Dimensions: Approx. 71mm x 96mm x 28mm (W x H x D)
• Weight: Approx. 95g
