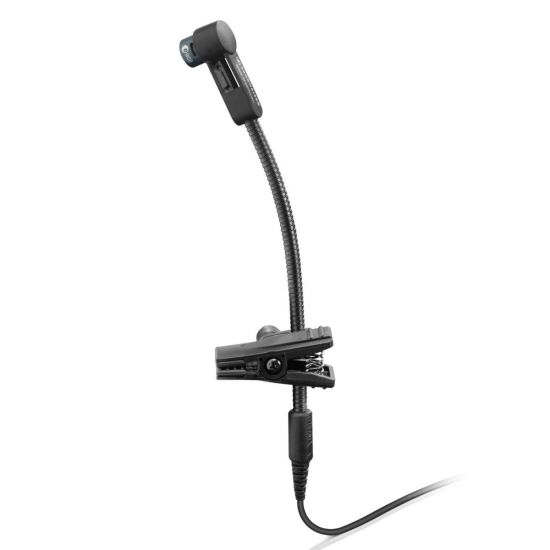

Sennheiser - E 908 B-ew

Sennheiser - E 908 B-ew

The evolution e 908 instrument microphone is available in four variants:

as e 908 D for drums and percussion

as e 908 B for wind instruments, congas, and drums with free-floating suspension system

as e 908 B ew for the wireless miking of saxophones using an evolution wireless instrument transmitter

as e 908 T ew for the wireless miking of trumpets using an evolution wireless instrument transmitter

For further information about these models please refer to "Variants".

• Exceptionally lively, clear sound
• Quick and flexible setup
• Optimal positioning with long-necked, flexible boom
• Integrated shock absorber eliminates handling noise
• Reduced sensitivity for high SPL brass instruments

Specifications

• Equivalent noise level
• • 35 dB(A)
  • 30 dB(A)
  • 39 dB (A)
• Dimensions: Ø 47 x 193 mm
• Connector: e 908 B & D = XLR-3; e908 B ew & T ew = 3,5mm mini jack
• Frequency response: 40 - 20000 Hz
• Weight: ca. 140 g
• Sensitivity in free field, no load (1kHz): 4 mV/Pa, 0,56mV/Pa (e 908T-ew)
• Nominal impedance: 100 Ohm (e908B & e908D)
• Min. terminating impedance: 2000 Ohm (e908B & e908D)
• Phantom powering: 12 - 48 V / 3 mA (e908B & e908D)
• Max. Sound pressure level (active): e908B-ew = 30 dB(A); e908B & e908D = 35 dB(A), e908T-ew = 39 dB (A) (equi) / 147 dB (max)
