BenQ - WDC30 - Instashow Wireless WiFi

BenQ - WDC30 - Instashow Wireless WiFi

Compliant with Financial Industry Procurement Standards and Regulations

• ROBUST SECURITY PROTECTION: WPA3 authentication, Wi-Fi 6 router technology, higher than industry-standard CC EAL6+ to keep your presentations secure
• INSTANT COLLABORATION: Plug-in & present with a single tap of a button or mobile device with 4-way split screen
• SMOOTH VIDEO PLAYBACK: Show high-quality videos up to 60 frames per second with a single tap
• GERM-RESISTANT PROTECTION: The InstaShow® WDC30 button is covered with nano-ionic silver coating for safe use to protect the users’ health

Intuitive to use, the WDC30 is the only wireless presentation system on the market which complies with finance industry procurement standards and regulations. With InstaShow® WDC30, you will have elevated level of information security and the most protected, intuitive and smooth collaboration experience.

Plug & Play
Just plug & play with no drivers needed. Click the button to project an image directly.

Stringent Network Security
Built-in Wi-Fi 6 router with a router-level chipset, which allows guest users to utilise InstaShow® without connecting to the local area network, for an elevated level of security.

Smooth & Speedy Mirroring
InstaShow® delivers reliable and stable presentations and video streaming, playing high resolution slides and videos smoothly.

Universal Platform Compatibility
Whether you use a laptop, MacBook*, mobile or tablet, it’s convenient to mirror without compatibility issues.

Clear Signal Only
WDC30 employs CCA (Clear Channel Assessment) mechanism to detect and select the best channel for smooth Wi-Fi performance.

Stable Transmission
WDC30 supports stable wireless transmission up to 30m. Attendees can participate in a smooth meeting, be it in a small meeting space or bigger conference room.

All Specifications

• LAN (RJ45): (x1)

Accessories

• HDMI cable: (x1)

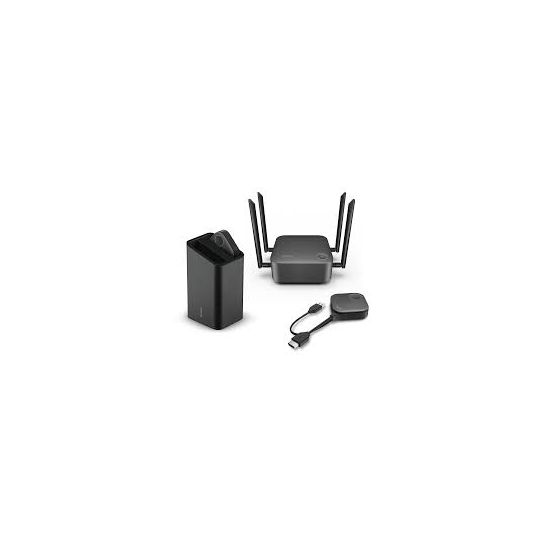

InstaShow Package

• Host (Receiver): (x1)
• Button (Transmitter): (x2)
• Cradle: (x1)
• Power Adapter: (x1)
• Antenna: (x4), 5dbi, MIMO
• HDMI cable|: (x1)
• Safety Statement: (x1) 16L

InstaShow Button

• Button Connector Type: (x1) HDMI, (x1) USB Type A
• Button Function Key: Split Screen Key

InstaShow Host

• Host Power Supply: DC 12V±5%, 3.33A
• Host Normal Power Consumption: 12W
• LAN (RJ45): (x1)
• HDMI out: (x2)
• Host Dimensions without antenna: 156x156x70 mm
• Host Weight: 821.5 g

InstaShow Cradle

• Cradle Dimensions: 85x97.5x170.4 mm mm
• Cradle Weight: 630 g

InstaShow Features

• Video Outputs: HDMI 2.0 (with HDCP), HDMI 1.4 (with HDCP)
• Maximum Output Resolution (Receiver): Up to 4K 60Hz
• WiFi Standard: 6
• Wireless Frequency: 2.4G + 5G
• Wireless Data Rate (Maximum): AX1800 (2.4G 574 Mbps + 5G 1201 Mbps)
• Split Screens (Maximum): 8 (w/ dual HDMI output)
• Simultaneous connections: 64
• WiFi Protected Access: WPA3
• Advanced Encryption Standard: AES128

Dongle Accessories

• Power Adapter: (x1)
