Avolites - AI Q3 Core server

Avolites - AI Q3 Core server

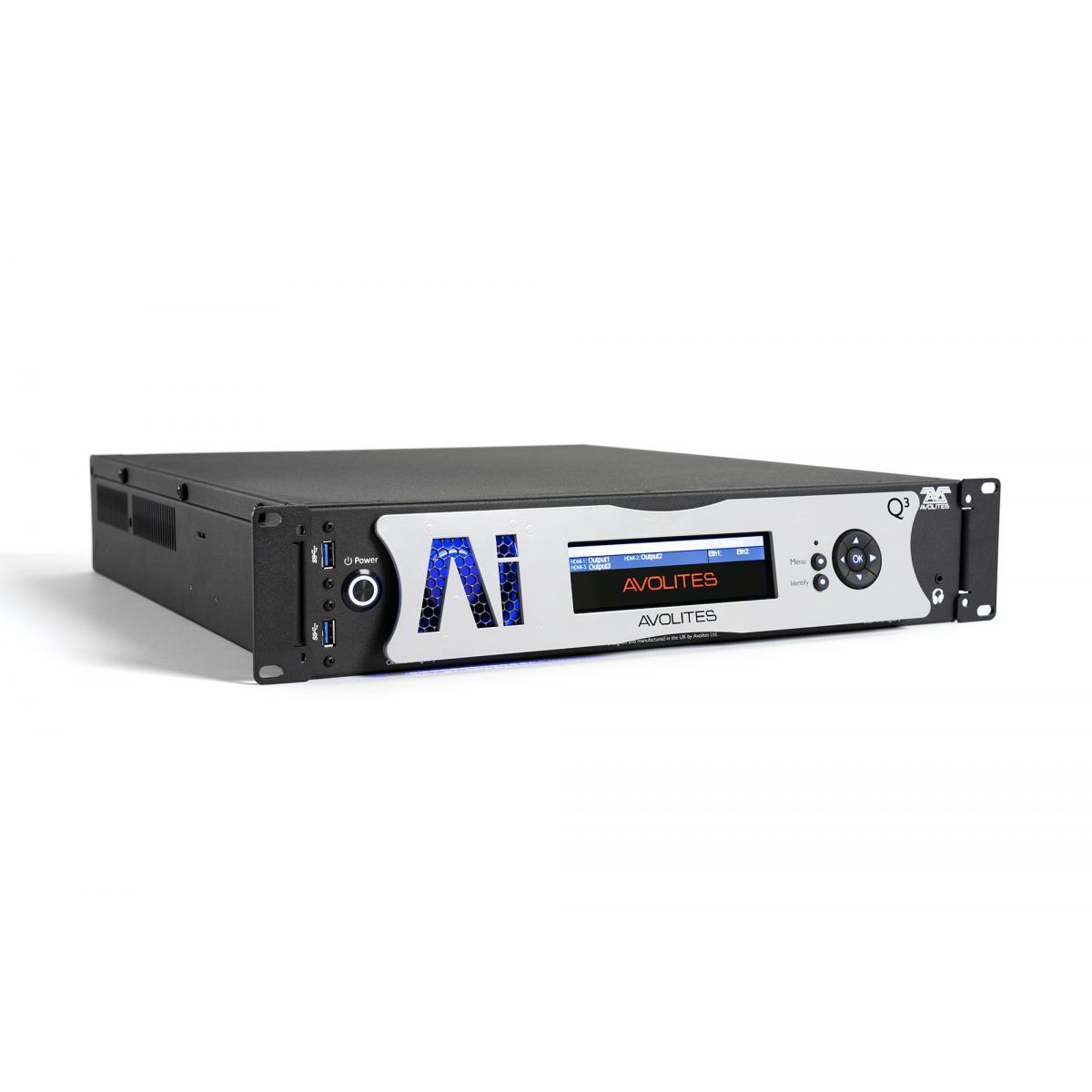

The Avolites Ai Q3 is a small server with big features, including hardware EDID, 1TB of NVMe media storage and 1 x 4K and 2 x HD outputs. The Q3 is the perfect solution to power live events, installs and anywhere else that live video manipulation is required.

Features

• 1 x 4k and 2 x HD outputs, plus a dedicated GUI output
• Hardware EDID on all outputs

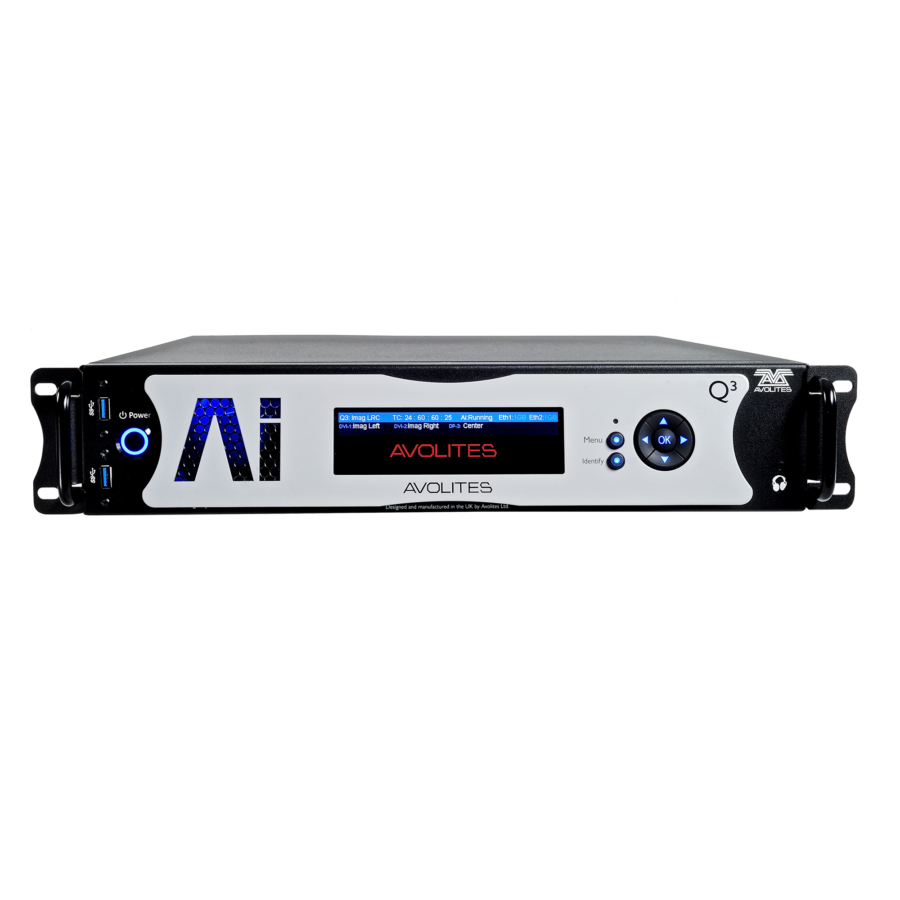

• Front panel screen for configuring outputs
• Node-based programming for flexibility with Salvation
• Send or recieve video over IP with NDI® by NewTek
• 3D projection mapping
• Supports Notch (licence required)
• Easily set-up projector blending with AutoBlend
• AiM media transcoder
• Synergy with Avolites Titan

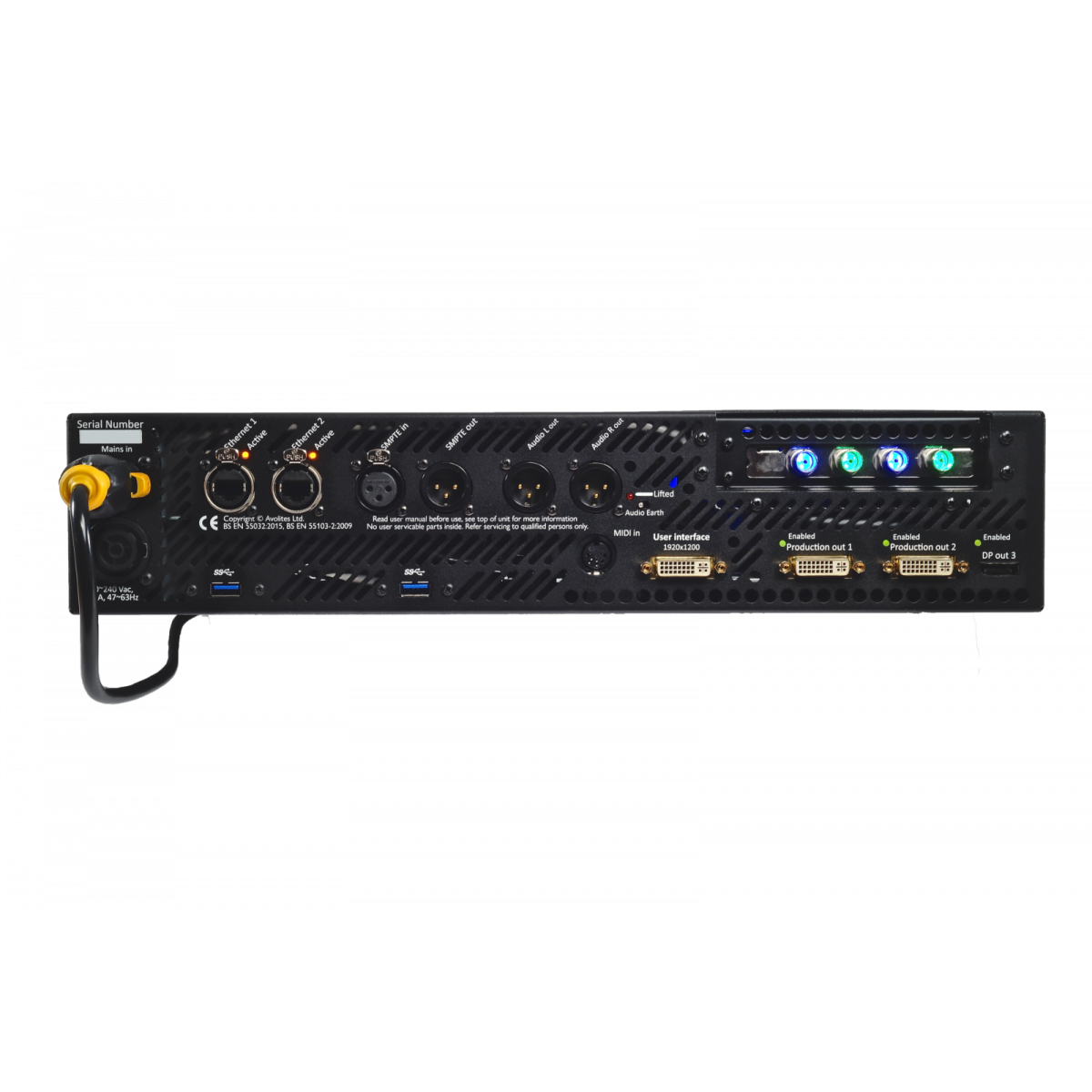

Connectivity

• Production Outputs: 1 x 4k & 2 x HD HDMI 2.0 outputs at 60 fps
• SMPTE Timecode XLR: In/Thru
• MIDI: 1 x DIN 5 MIDI Input
• GUI Outputs: HDMI 1920 x 1200
• Supported Protocols: 1 x 1 Gigabit LAN

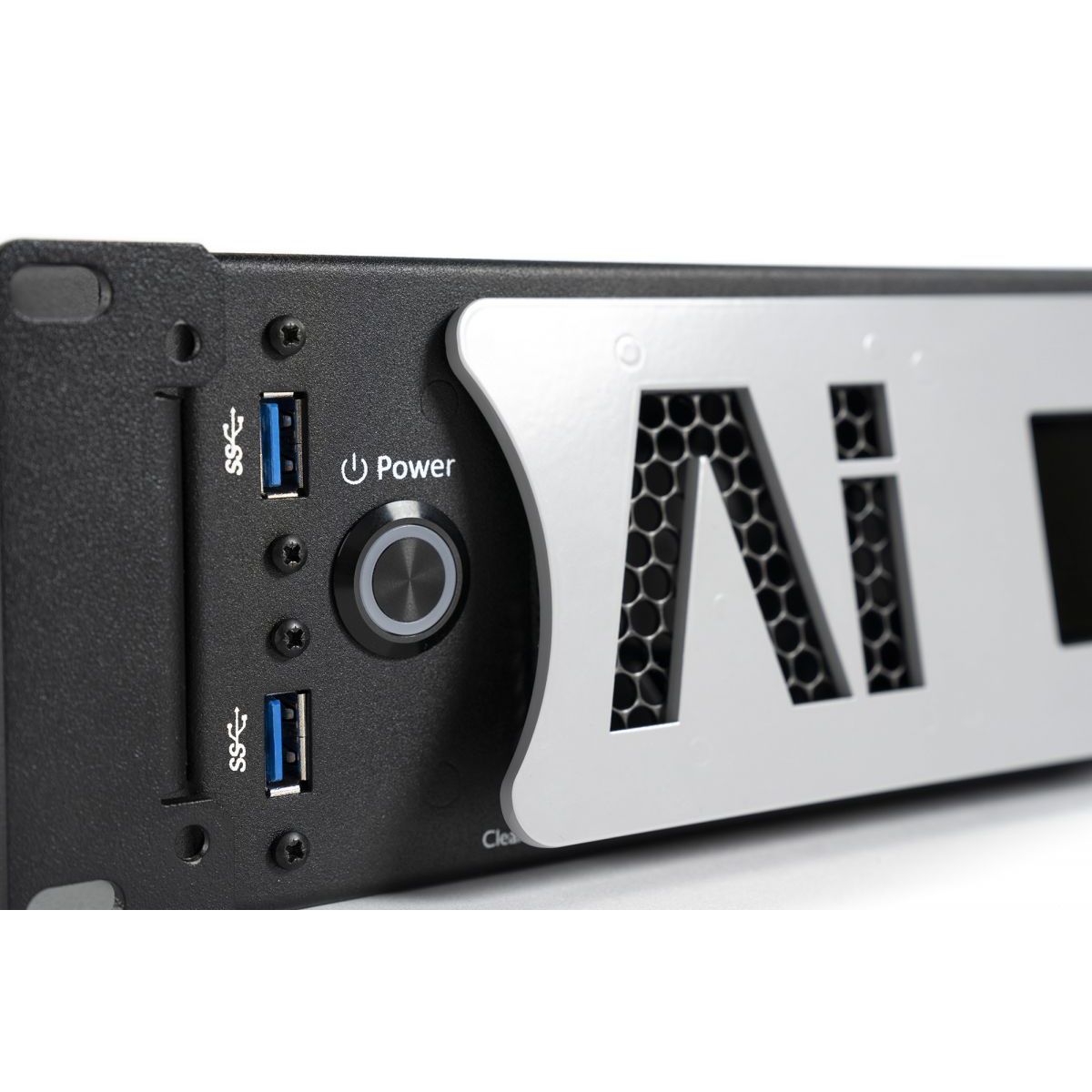

• Data / Perphierals: 4 x USB 3.0 Type-A
• Audio: Audio out L&R Balanced XLR
• Network Capacity: 2 x 1GbE
• Genlock: Optional
• Capture Cards: Up to 4 x 3G-SDI OR 2 x HDMI

Hardware specification

• CPU: Intel Core i5
• EDID Management: Hardware EDID managed, HDMI 2.0 outputs
• Power Consumption: 275W, 4~2.8A (110~240V AC) (max), Thermal Data: 933 BTU/h
• Tolerances: Operating temperature range: 0-40 °C or 32-104°F, Max humidity: 95% relative humidity, non-condensing
• GPU: AMD Radeon ProWX 7100
• Operating System: Windows 10 IoT Enterprise
• Mount System: 19” 2U x 486mm depth
• Storage: 1TB NVMe

Physical specification

• Unit Dimensions: 490 x 520 x 88mm (19.29” x 20.47” x 3.46”) (Including rack ears)

• Unit Weight: 11 Kg / 24.3 lbs

• Packed Dimensions: 655mm x 600mm x 290mm (25.8” x 23.7” x 10.7”)

• Packed Unit Weight: 12.5 Kg / 27.6 lbs

• Rack Units: 2
