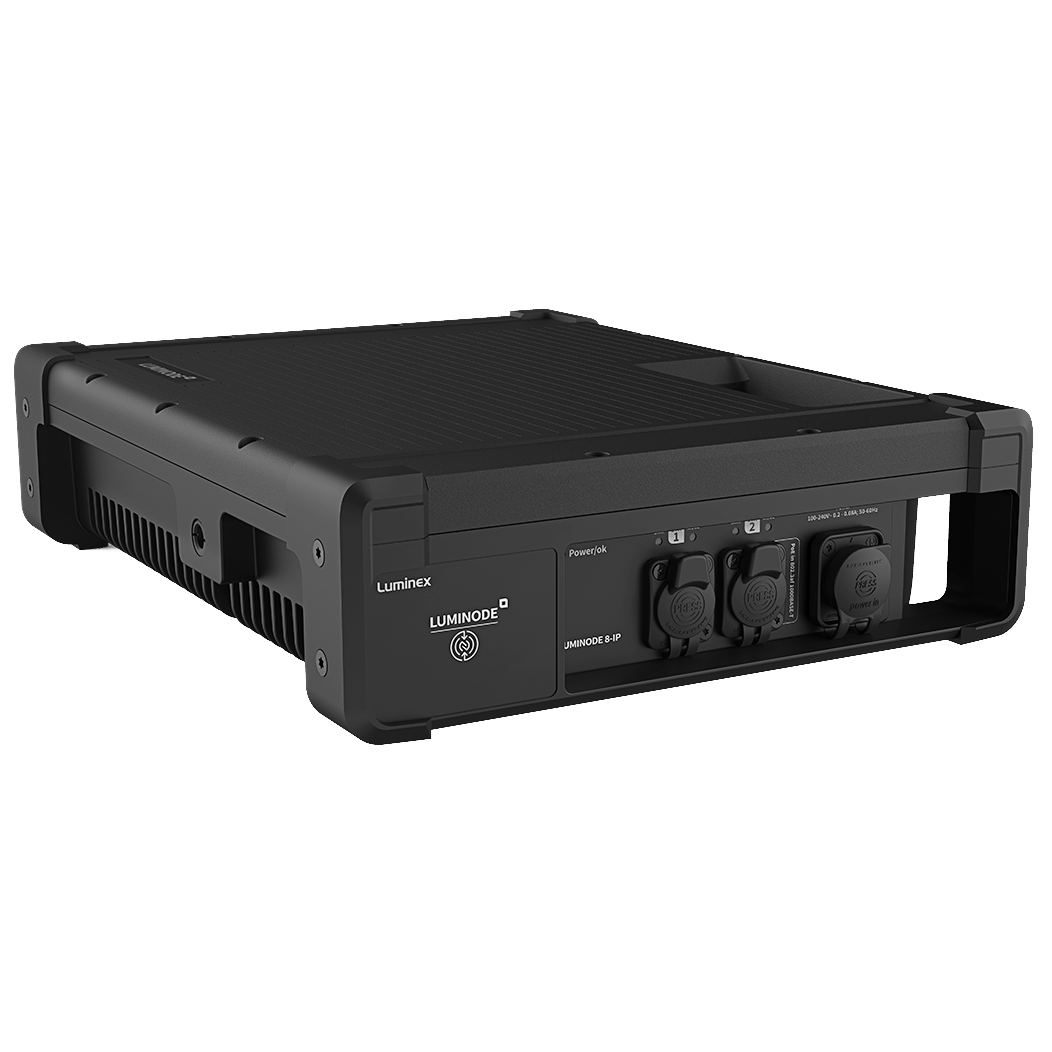

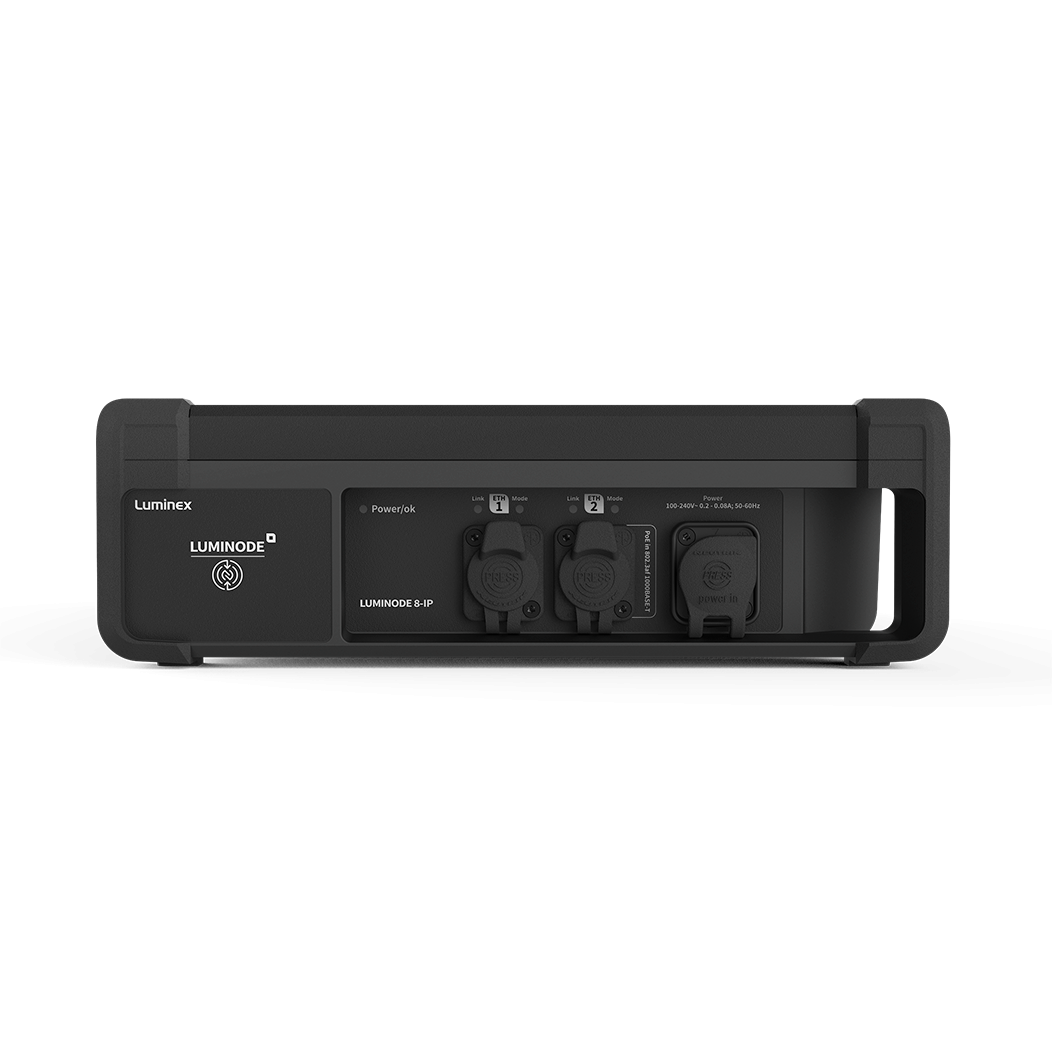

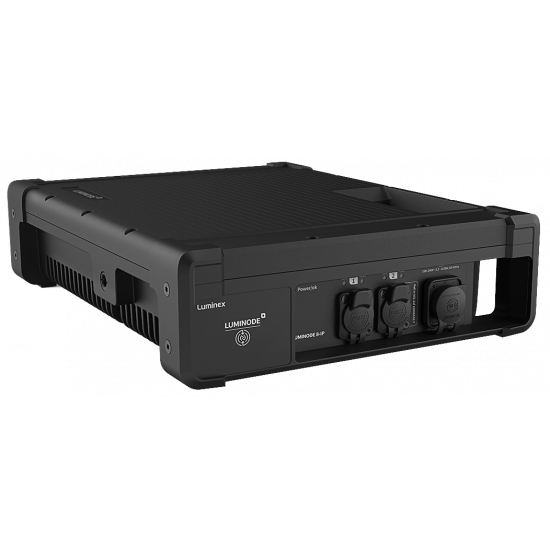

LumiNode 8-IP is designed with an IP65 rated, all metal, robust enclosure,withstanding extreme temperature conditions, making it an ideal solution for outdoor AV installs and live performances. Equipped with 2x 1Gb IP65 ethercon ports and 8 DMX/RDM ports with IP65 5-pin connectors, LumiNode 8-IP offers flexibility in a weather proof package. Each port is fully optically and galvanically isolated and can be configured as an in- or output.

All relevant industry standard protocols such as Art-Net, sACN, KiNET, RTTrPL (Blacktrax) are supported and can be processed and converted in no less than 12 onboard process engines supporting HTP, LTP, Crossfade, Backup, Switch and Custom merging modes with soft patch functionality.

• DMX/RDM: 8x Neutrik 5-pin XLR (female) NC5FDXX-TOP connectors
• Network: 2x shielded IP rated Neutrik etherCON TOP connector
• Power: 1x Neutrik powerCON TRUE1 TOP
• Ethernet: PoE 802.3af class 0
• Supported DMX protocols: DMX512 (1986 & 1990), DMX512-A, RDM ANSI E1.20-2010
• DMX port direction: Input or output (configurable)
• DMX port isolation: Optical and galvanic isolation per port
• DMX timing: Frame rate 10–40 fps, Break 176–352 µs
• Supported Ethernet protocols: Art-Net™ (1–4), sACN ANSI E1.31-2018, RTTrPL (BlackTraX), KiNET v1, v2
• Port speed: 10/100/1000 Mbps
• Port sensing: Auto-negotiation, MDI/MDIX
• Split management interface: Yes
• Groups (VLAN) support: Yes
• Processing engine: 12
• Merging: Yes (HTP, LTP, X-Fade, Backup, Switch, Custom)
• Softpatch: Yes
• Master/Limit: Yes
• Trigger system: Yes
• Reroute function: Yes
• Profile manager: Yes
• Snapshot: Yes
• Monitoring software: LumiNet Monitor, Araneo
• DMX redundancy: Yes
• Status reporting: Ethernet port connection link/activity LED, Group RGB LED, DMX port DMX/RDM RGB LED
• Power input: 100–240 VAC, 50–60 Hz, PoE-802.3af (Class 0)
• Power consumption: Max 13 W
• Power redundancy: Yes
• Configuration: Built-in web server, Documented web API, App with NFC compatible smartphone
• Operating temperature: -20 to +60 °C
• Storage temperature: -40 to +70 °C
• Humidity: 5 to 95% RH (non-condensing)
• Enclosure: Robust all-aluminium housing - IP65 rated
• Dimensions (W x D x H): 281 x 358 x 90 mm (11.06 in x 14.09 in x 3.54 in)
• Weight: 7.2 kg
• Mounting type: Truss mount M10 inserts (3x), 10x10 VESA mount inserts, Multiple devices stackable
• Electromagnetic emissions and immunity: EN55032 class A, EN55035, EN61000-3-2, EN61000-3-3, EN61000-4-2, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61000-4-11, FCC Part 15 CFR 47 class A, ICES-003 Issue 6
• Safety approvals: IEC 62368-1, EN 62368-1, UL 62368-1, CAN/CSA-C22.2 No. 62368-1
• Certificates: cSGSus Mark, CE, CB Certificate
• IP rating: 65
• Environmental compliance: RoHS, REACH
