Pixelhue | S16

Pixelhue | S16 Presentation Controller

Introducing the S series, state-of-the-art live production switchers, integrated into a sleek contorl panel, perfect for professsional taks with unrivaled portability. Featuring up to 16 SDI and 4 HDMI inputs, UVC (USB Video Class)/RTMP, AUX outputs, 4 upstream keyers, 2 downstream keyers, SuperSource, BKGD, media players, and various transitions like MIX, DIP, and WIPE. The live production switchers include built-in streaming, recording, audio mixer, and Multiviewer. The Flagship Edition boasts up to 16 12G-SDI inputs, offering unmatched editing flexibility as a market-leading feature. Built on Pixelhue's years of expertise, both our editions cater to your live event needs, enseruing flawless execution for small venues, corporate events, entertainment and cultural occassions, sport events, houses of worships, education and training, esports and gaming, personal studios, freelancers, or broadcast vans.

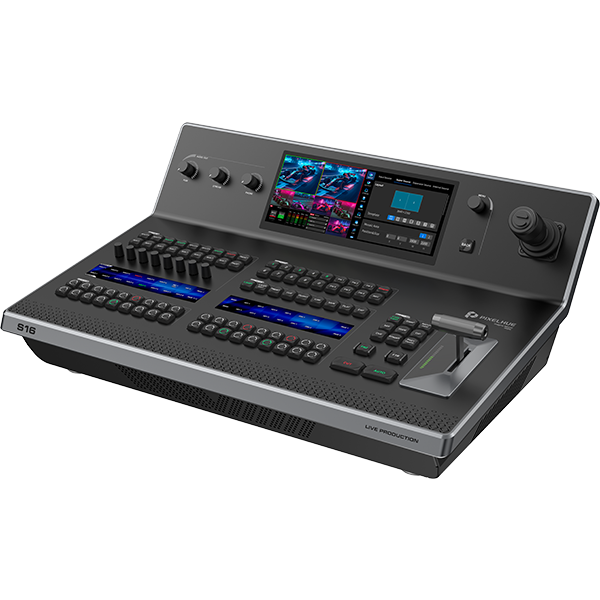

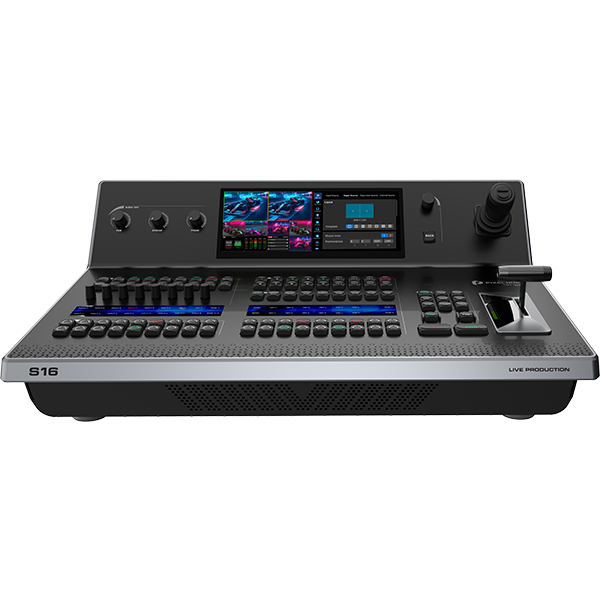

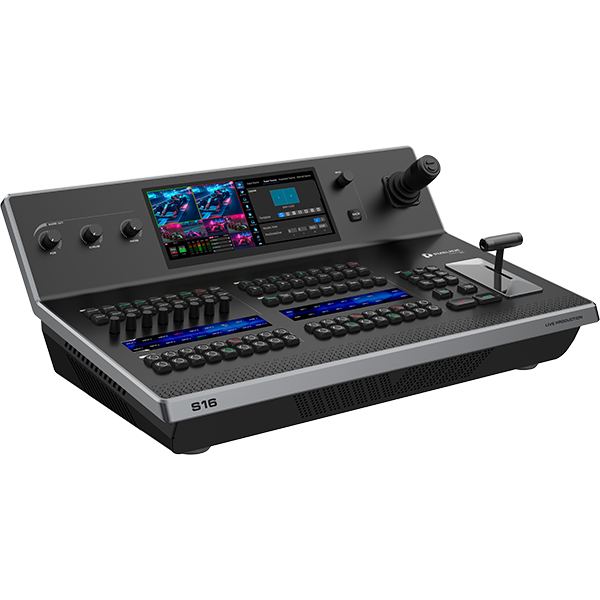

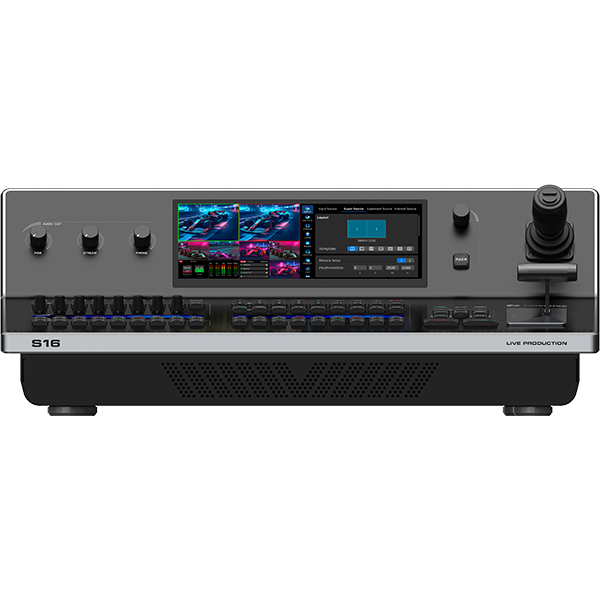

• Product: Pixelhue S16 4K Live Production Switcher
• Video Inputs: 16× 12G-SDI + 4× HDMI 2.0 (selectable from 20 connectors)
• Video Program Outputs: 2× HDMI 2.0 / 12G-SDI (copy of PGM)
• Multiviewer Outputs: 1× HDMI 2.0, 1× 12G-SDI
• AUX Outputs: 8× 12G-SDI, 4× HDMI 2.0
• Streaming: USB 3.0 Type-C (up to 1080p@60Hz), 4× simultaneous RTMP streams
• Audio I/O: Input: 2× XLR/TRS (6.35 mm), Output: 2× XLR + 1× 6.35 mm TRS analog monitoring + optional 2× Dante digital audio
• Layer Resources: 1× BKGD, 4× Upstream Keyers, 2× Downstream Keyers, 1× SuperSource
• Transitions: MIX, DIP, WIPE
• Net Weight: 13 kg
• Gross Weight: 17.5 kg
• Product Dimensions: 600 mm × 390.7 mm × 232.3 mm
• Packaging Dimensions (Standard): 720 mm × 515 mm × 340 mm
• Packaging Dimensions (Flight Case, Optional): 880 mm × 510 mm × 335 mm
• Operating Environment: Temperature 0 °C–40 °C; Humidity 5 %–85 % (non-condensing)
• Storage Environment: Temperature −20 °C–70 °C; Humidity 5 %–95 % (non-condensing)
• Power Input: 100–240 V~, 10 A, 50/60 Hz
• Max Power Consumption: 175 W
• Noise (typical): 40 dB (A) at 25 °C
• Included in Box: Power cable, HDMI cable, Cat5e cable, Gooseneck light, Quick Start Guide, Safety Manual, Certificate of Approval, Customer Letter
