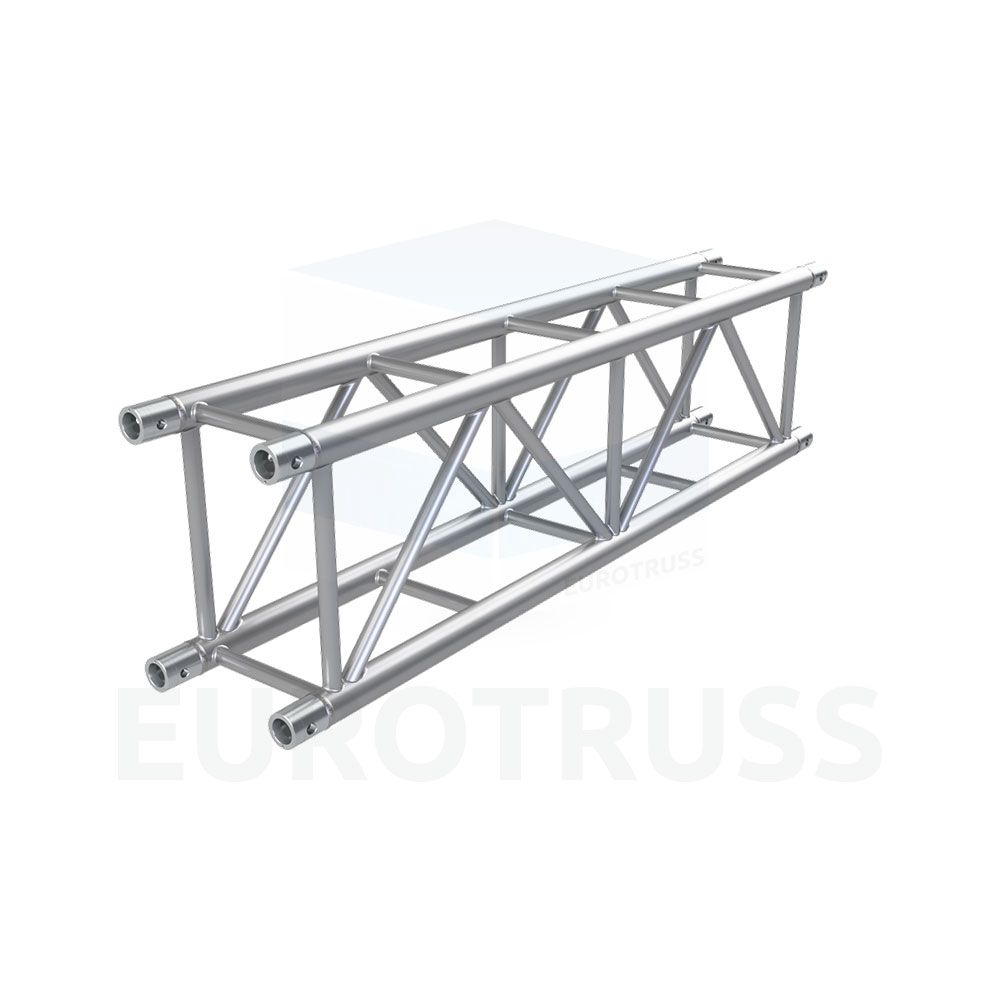

XD straight elements lend themselves to use as longer spans exposed to bending stress resistant spans for vertical loads at a free span of up to 20m at high load.

Predestined for indoor use, the XD Truss is characterized in particular by its slender shape and low packing volume.

Made with the fast CS3 connection system .

Note: The XD Truss System is standard equipped with horizontal pin positions but is also available with diagonal pin positions.

Features

• Tolerance free connection with conical connector
• High stability aluminium alloy
• Excellent load-bearing capacity combined with low dead weight
• 3 mm wall thickness of 50 mm main tube
• High load capacity at free spans up to 20 meter
• TüV approved
• High wear resistance

• Product: Eurotruss
• Connection Type: CS2-CON
• Height: 400 mm (15.75 in)
• Width: 290 mm (11.42 in)
• Main Tube: 50 x 3 mm (1.97 x 0.12 in)
• Braces: 25 x 3 mm (0.98 x 0.12 in)
• Weight: ~9 kg/m (~6 lbs/ft)
• Pin Position: Horizontal or Diagonal
• Material: EN AW-6082 T6
