VMB - TL-063 Black

The VMB TL-063 meets new requirments DIN 56950-3 and DGUV17 (former BGV-C1), this lifter includes the new systems, Cable Guide and Load Limit System (optional), it also includes a larger protective cover on the front.

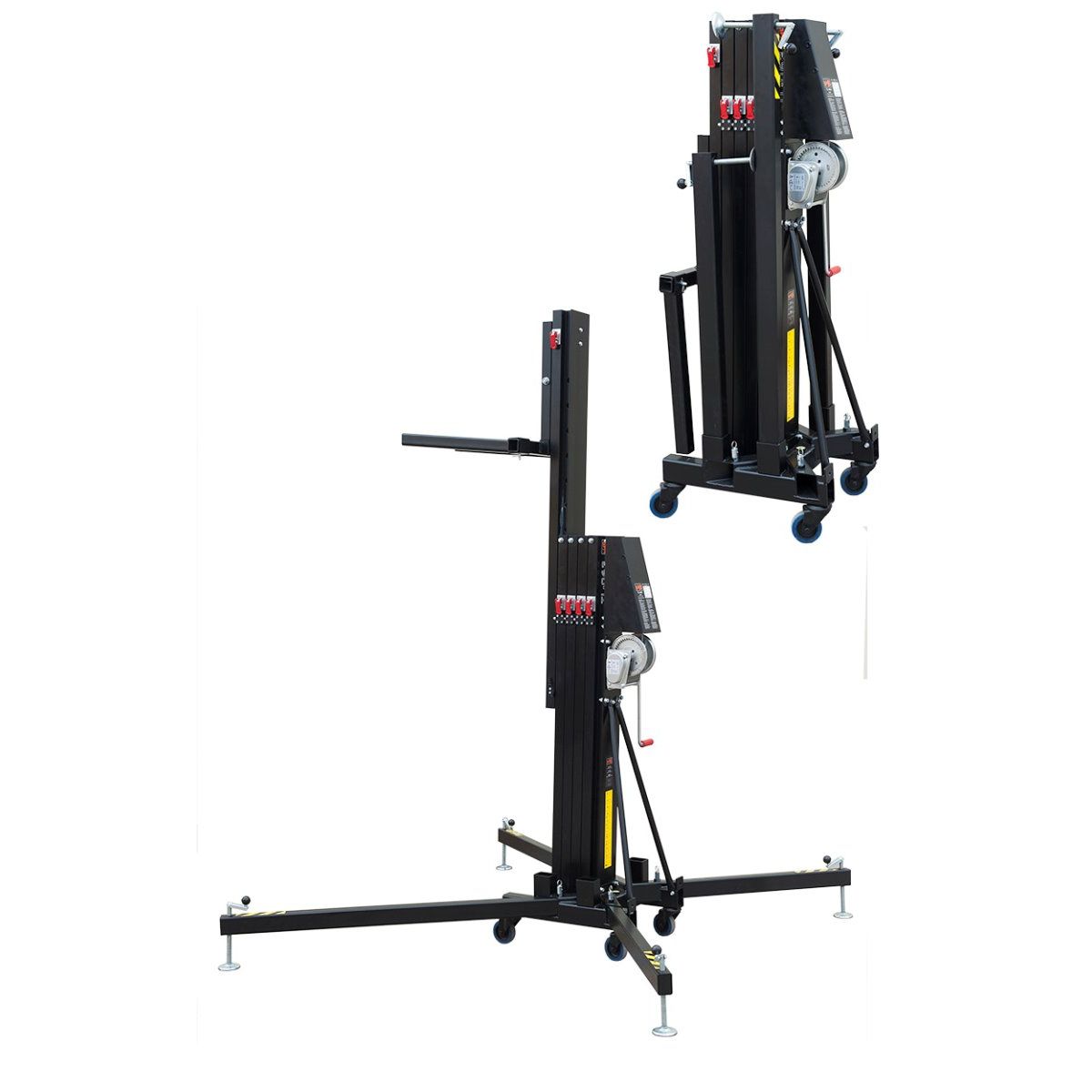

The TL-063 is made with structural steel for the base and 5 sections of 6082-T6 aluminum alloy, and 1 more section for the lifting carriage. Designed to lift heavy loads from the ground, and keep them at high altitudes.This lifting tower is very easy to handle, it has 4 swivel castors at the base and fits through a door. It has powerful stabilizers in the legs, to level the lifter in difficult terrains, with slight slope.Black finish, with epoxy powder paint offering great resistance. It has two adjustable steel load forks that support the load, either supported on top of it, or hung underneath.

VMB offers you a wide range of accessories, which combined with this lifter allows you to increase the number of applications. One of the most used accessories, for example, is the RH-7 transport kit, which serves to tilt the lifter, horizontally and make the transportation in vans, trucks, etc. easier. The TL-063 features the ALS Red locks of VMB, which automatically block each section while lifting. And the inertial pendulum ILS safety system for the aluminum lifting carriage. It also has the special SRS Retaining system, patented by VMB, which guarantees that the towerlift’s aluminum sections will rise in order, and most importantly: automatically.

Specifications:

  • Max. height 6.3m (20.66′)
  • Max. Load 270kg (595.3 lb)
  • Safety ALS auto-lock
  • Work surface 1.92 x 2.05m (6.3 x 6.7′)
  • Folded height 1.65m (5.4′)
  • Winch 900kg
  • Adaptor Forks 54.5 cm included
  • Weight 140Kg (308.7 lb)
More Information
Condition New
Brand VMB
