VMB - LWS-4 - 4m LED Wall Support

VMB - LWS-4 - 4m LED Wall Support

Included components:

• LW-T2: 4
• LW-B1: 1
• LW-B2: 1
• LW-AR1: 4
• LW-U1: 1

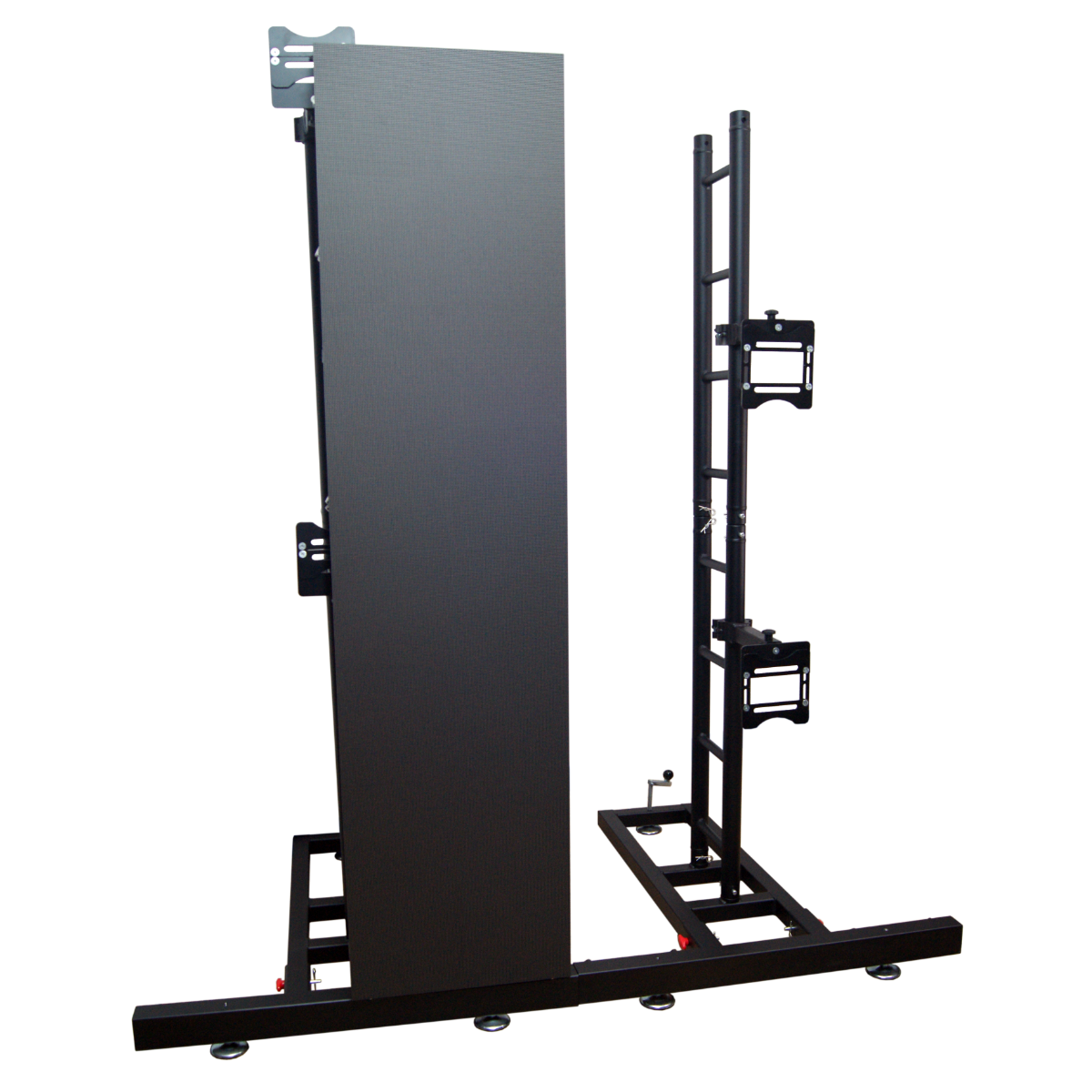

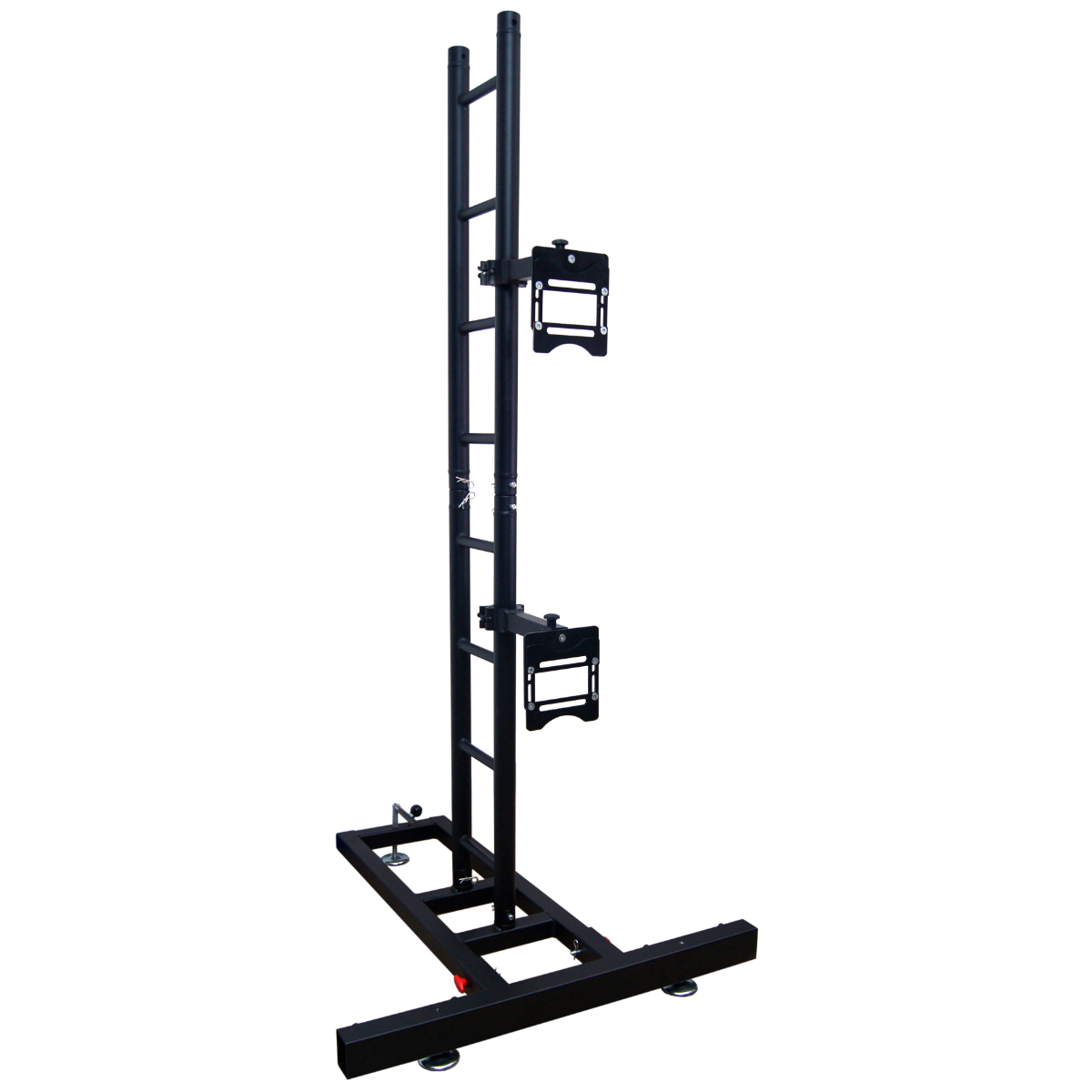

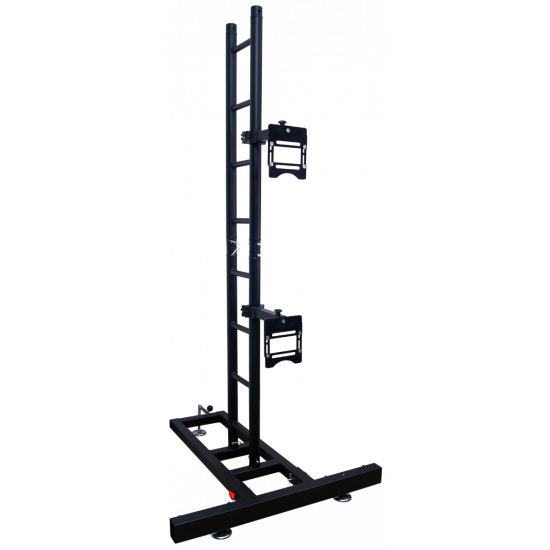

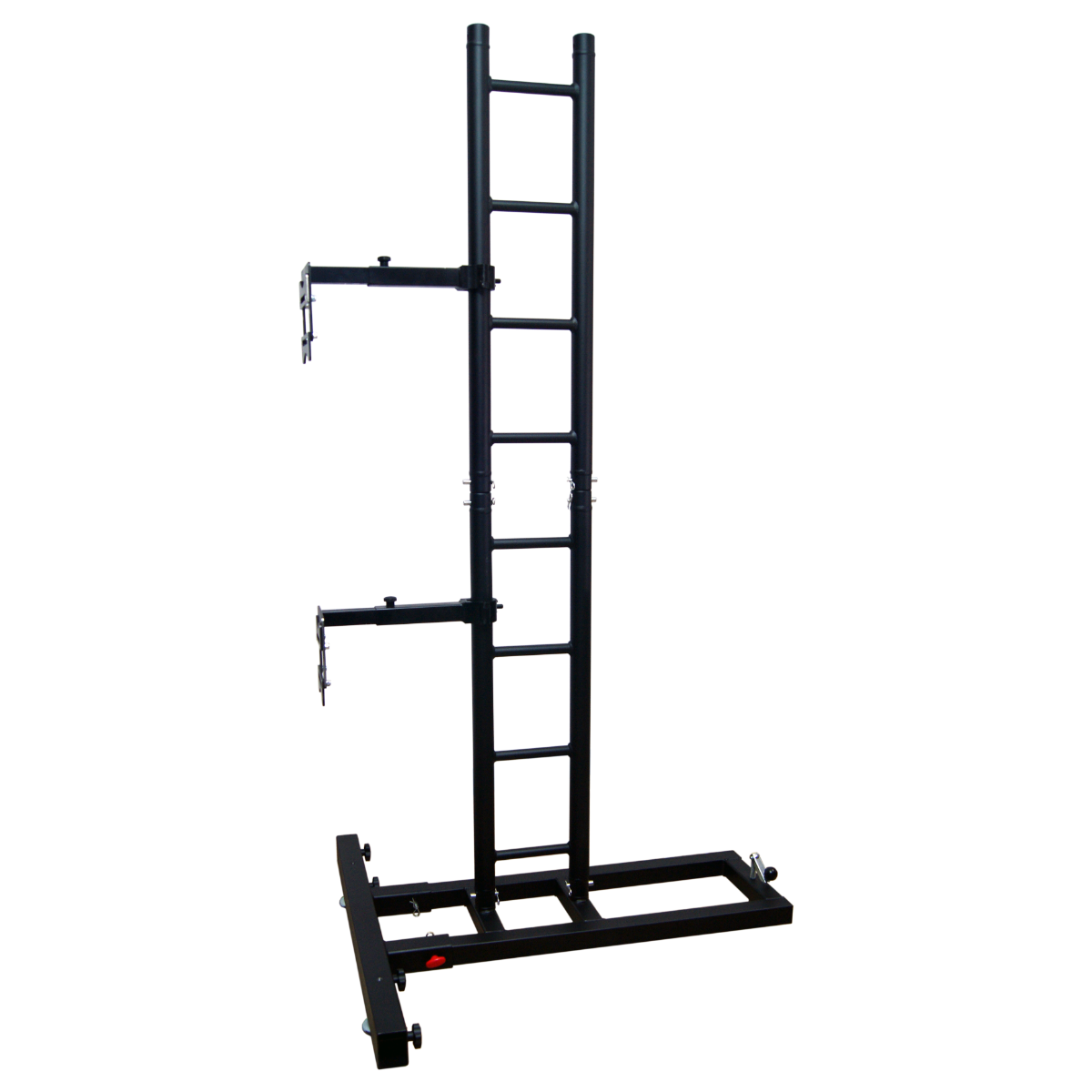

Modular structure to support led screens. Composed of a stackable aluminium truss on a steel base. Both the width and the height of the assembly can be varied depending on the size of the screen to be supported.

The system includes front and rear adjustable stabilizers to adapt to the possible unevenness of the location.

Available range of accessories such as support for counterweights, safety bars, etc.

Height: 4,11m*
Work surface: 100x106/110/114 cm
Weight: 52 kg
Material: Aluminium 6082 T6 + Steel
Finish: Black
Distributed load: 169 kg/ml
Counterweight: 160 kg/ml

*Height accordings to sections. Check available sizes and accessories.
