Eurotruss | ED-T-750-8x4 - Pro Deck 8x4 ft Black Hexa

Eurotruss | ED-T-750-8x4 - Pro Deck 8x4 ft Black Hexa anti slip Plywood

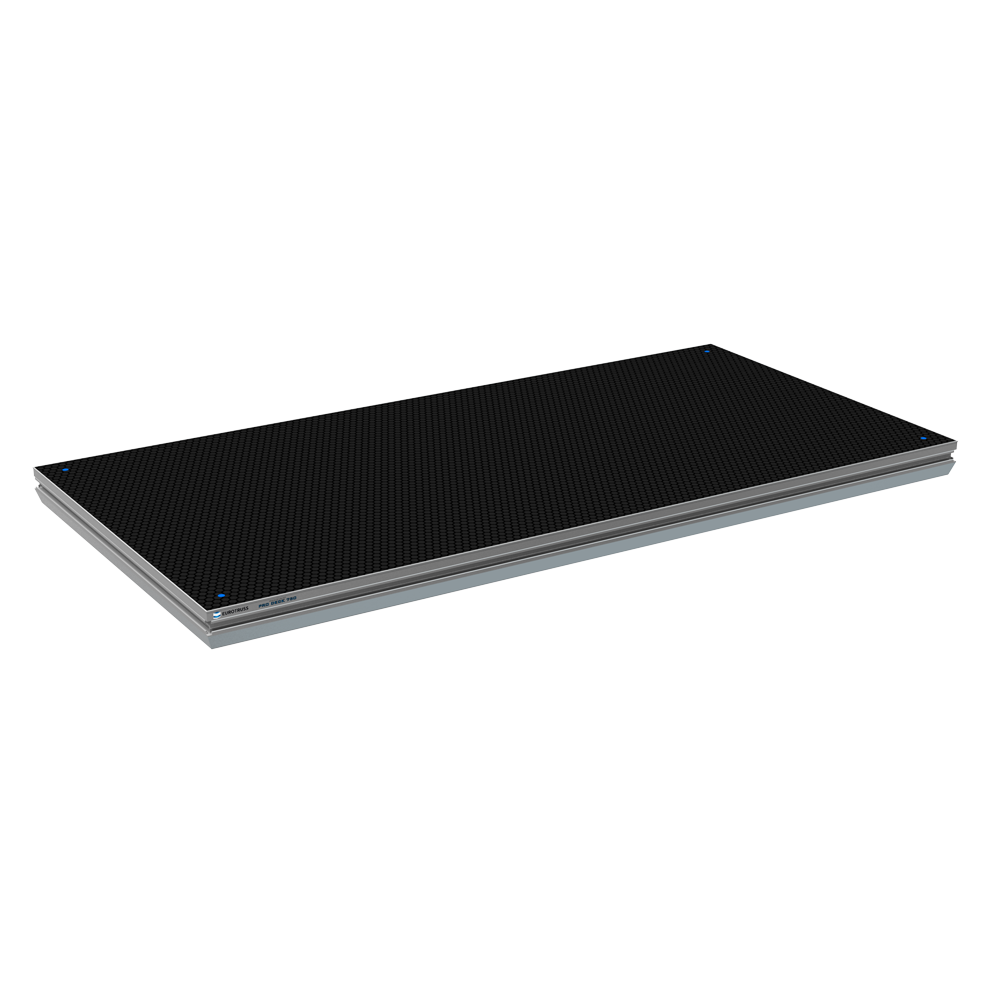

Eurotruss Pro Deck

The Eurotruss Pro Deck is a base for stages, fashion show catwalks, tribunes and conference podiums. All accessories (self-levelling inserts, barrier clamps, stairs clamps or assembly inserts which can be used to hang curtains or advertising banners) are fastened to the section: The platform top is made of waterproof plywood with an anti-slip layer which is standard available in black. This model combines strength and durability.

Stronger

With its weight of only 16kg/m2 (3,2 lbs/sqft) it is one of the lightest and strongest decks in the industry. Guaranteed load capacity of 750 kg/m2 on a 2x1m Deck and 150 lbs/sqft on a 8x4ft Deck. A special long centered steel profile ensures full stability and a 45% less deflection.

The platforms can be supported by (non)adjustable or telescopic legs which make it possible to smoothly and precisely adjust the platform height to the desired height. Thanks to their structure, the platforms can be installed both, outdoors in different terrains and indoors (inside the buildings, show halls, theatres etc.).

Special profile

The Eurotruss Stage Decks has its own special extruded profile.  All accessories like self-leveling inserts, railing clamps, stairs, clamps or assembly inserts which can be used to hang curtains or advertising banners are fastened to the profile section.

Corner leg holder

The aluminium corner makes a solid leg connection possible, with an easy flip of the new quick-lock lever system the leg connection stays fixated during build-up. Easy to use and a optimal connection to secure the legs.

• Dimensions: 200 x 100 cm – 8x4 ft (standard)
• Profile Height: 90 mm – 3.54 in.
• Plywood: 12 mm – 0.47 in. (Anti-slip)
• Weight: 29 kg (200 x 100 cm) – 8x4 ft (97 lbs)
• Material: EN AW-6082 T6 and Plywood
• Available sizes Metric: 2x1 / 1x1 / 2x0.5 / 1x0.5 m
• Available sizes Imperial: 8x4 / 4x4 / 8x2 / 4x2 ft
