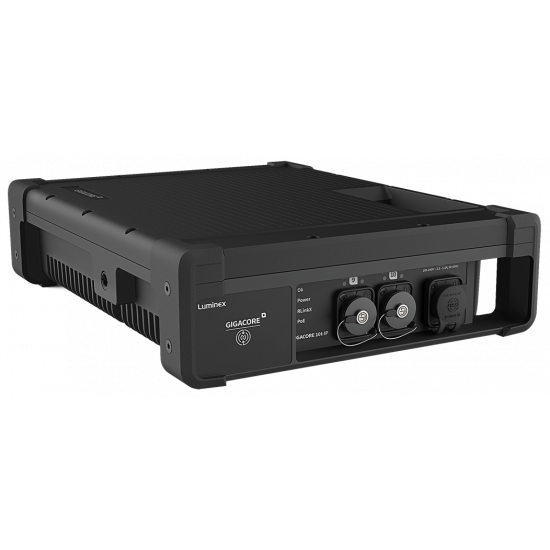

The GigaCore 10t-IP is an up to 10 Gigabit Ethernet switch for professional touring applications in lighting, audio and video with a weather proof, IP65 rated enclosure and connectors, ideal for all outdoor applications in extreme temperatures.

It is designed to support the most advanced AV protocols out of the box and is the backbone for a converged network, allowing multiple applications to co-exist on the same network.

Built for any outdoor environment

GigaCore 10t-IP is designed to perform reliably in the toughest outdoor conditions. With an IP65-rated enclosure and connectors, it stands up to dust, water, and extreme temperatures—ensuring uninterrupted operation and complete peace of mind.

Its 100% passively cooled design enhances durability, reducing sensitivity to environmental factors while remaining completely silent. No fans, no noise—just rock-solid performance, rain or shine.

Smart management with Araneo app & NFC

GigaCore 10t-IP can be managed using any NFC-compatible smart device. With the Araneo app (available on the App Store and Play Store), you can easily read the switch’s status, Groups (VLANs), port settings, and more—simply by tapping your phone.

Configuration settings can be conveniently adjusted within the app and stored back on the GigaCore 10t-IP, even when the unit is not powered on!

• Most suitable applications: Touring applications, Live events, Outdoor applications, Theme parks
• PoE: PoE++ (up to 210W)
• RLinkX (Link redundancy): Yes
• Groups (VLAN segmentation): Yes
• MultiLinkX (Link aggregation): Yes
• Profile manager: Yes
• Memory: Flash 1Gb RAM – 8Mb NOR flash 4Gb EMMC storage
• MAC address table: 16384 entries
• Address learning / Aging: Self learning, Auto aging
• Switching throughput 64 Byte: 1G Models: 14,88Mpps / 10G Models: 41,67Mpps
• Switching capacity: 1G Models: 20Gbps / 10G Models: 56Gbps
• Jumbo frames: MTU up to 12000
• IGMP support: Yes (V1/V2/V3)
• IGMP snooping: Yes, enabled by default
• Port sensing: Auto negotiation (Copper ports)
• Auto crossover: MDI / MDIX
• Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)
