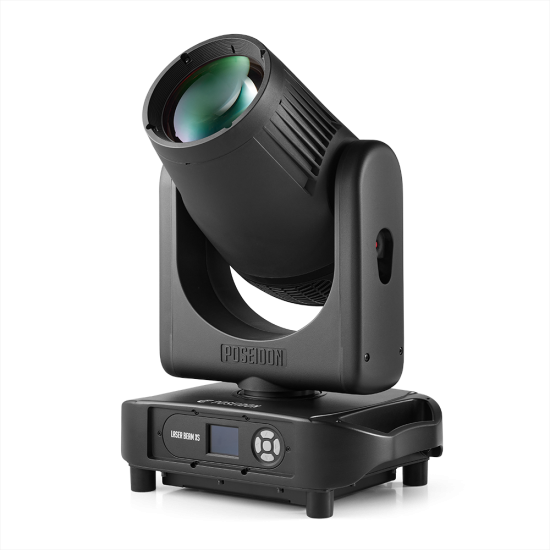

CLF | Poseidon Laser Beam XS

CLF | Poseidon Laser Beam XS

The CLF Poseidon Laser Beam XS is a highly anticipated addition to the CLF lineup. The Laser Beam XS is the first laser fixture in the Poseidon series. This user friendly Laser sourced fixture is packed with features and boasts ultra-bright performance, making it ideal for all small and big festival, theater applications. Its small sized housings, low power consumption and fast movements together with the CMY color mixing system it’s a packed fixture. All build for power, speed and easiness!

Features

• IP65 dust and water protection
• 120W new laser technology
• CMY + 12 colour fixed wheel
• Gobo wheel, frost and 2 rotatable prisms
• Light weight slim housing

• Input voltage: 100 – 240VAC, 50 / 60Hz
• Total power consumption: 233W
• Power plug type: Seetronic Powercon TRUE1
• Source: 120W Laser source (latest technology)
• Beam angle: 1.1°
• Color: CMY, 12 + fixed color wheel
• Gobo: 17 + open fixed gobo wheel
• Prism: 2 rotatable & shaking prisms (8-facet & 17-facet)
• Frost: Yes (10°)
• Dimmer: 16 bit 0–100%
• Shutter: 0.5–25 Hz/second, random
• Pan: 540°
• Tilt: 270°
• Focus: Yes
• Cooling type: Regulated fans
• Max. ambient temp.: Ta max = 45°C
• Min. ambient temp.: Ta min = -20°C
• Control protocol: USITT DMX512/1990
• DMX channels: 21
• RDM: Yes
• WDMX: Optional (only one option possible)
• DMX input connection: 5-pin (3-pin optional)
• ArtNet/sACN: Optional (only one option possible)
• IP rating: IP65
• Orientation: Any
• Safety attachment point: Yes
• Position lock: Tilt
• Net product weight: 16.1 kg
• Length: 364 mm
• Depth: 241 mm
• Height: 517 mm
• Included items: Manual, power cable, safety cable
• Optional accessories: Omega bracket, flightcase
• Approved certifications: CE-EMC, CE-LVD and RoHS
• Article number: 160060
• EAN code: 8719189163285
