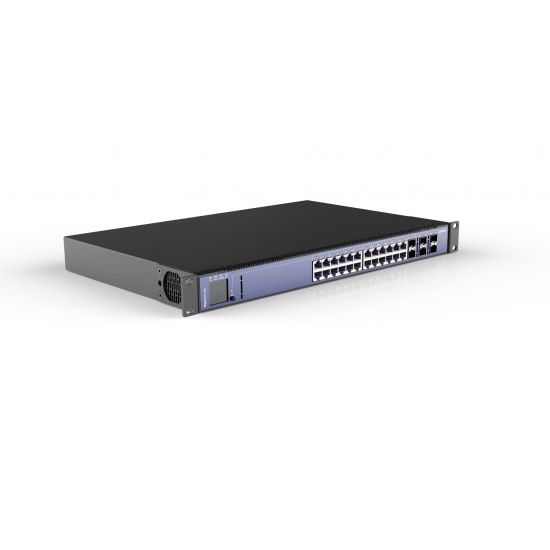

Luminex - GigaCore 30i - 10Gb

Luminex - GigaCore 30i – 10Gb

GigaCore 30i comes fully optimized out of the box to be used with the most advanced AV protocols. Preconfigured Quality of Service (QoS), IGMP multicast, and PTPv2 settings will assure a responsive and extremely stable network environment for the most demanding time-critical audio protocols like Dante™, AES67, Q-SYS, and many more.

With up to 1000W of total PoE budget and PoE++ on every copper port, this GigaCore switch can drive any IP PTZ camera or loudspeaker on the market today.

GigaCore 30i is the ideal solution for AV networks in fixed installations, integration and touring for lighting, audio, and video.

10Gb Connectivity
10Gb connectivity allows full network convergence of lighting control, audio, intercom, and compressed video.

PoE++
PoE++ implementation on every copper port allows you to connect any PoE device available today.

Today’s PoE standards (802.3af, 802.3at and 802.3bt) are all met.
GigaCore 30i can directly drive any IP PTZ camera, network nodes or PoE powered loudspeaker on the market.

AV validated for real applications
GigaCore switches are fully validated in real-world applications with major brands in the AV industry for different protocols, including NDI™, Dante™, AES67, ST-2110, IPMX, MA-Net, and many more.

We don’t just approve against a protocol but actually test it. Because of real world application validation and interoperability testing, we understand the applications and make sure you can deploy our product with confidence.
Luminex support team really speaks your language and has a vast amount of AV knowledge built up, not just from talking protocols but mainly from working with you and living through your real application network challenges.

Robust yet silent design
A robust yet silent design allows you to use GigaCore in any AV environment.

Fans are speed controlled to have minimal noise impact and guarantee a long-life operation.
This allows you to place the GigaCore in even the most quiet environments like theaters and studio’s.

Key Features

• Most suitable applications: Installations
• RLinkX (Link redundancy): Yes
• Groups (VLAN segmentation): Yes
• MultiLinkX (Link aggregation): Yes
• Profile manager: Yes
• Memory: Flash 1Gb RAM – 8Mb NOR flash 4Gb EMMC storage
• MAC address table: 16384 entries
• Address learning / Aging: Self learning, Auto aging
• Switching throughput: 168Gbps
• Jumbo frames: MTU up to 12000
• IGMP support: Yes (V1/V2/V3)
• IGMP snooping: Yes, enabled by default
• Port sensing: Auto negotiation
• Auto crossover: MDI / MDIX
• Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)

Connectivity

• Ethernet connectivity: 24 x RJ45 connectors (1Gbps))
• Fiber connectivity: 6 x SFP+ cages (10Gbps/1Gbps) (independent from other ports)
• Ethernet port speed: 1Gbps
• Serial: 1 x USB C

Power

• Power connectivity: 1 x IEC (14C) inlet for each PSU
• Power input: 100-240VAC, 50-60Hz
• Power consumption: Maximum 40W non PoE version Maximum 500W/1000W with PoE
• Fuse: NA
• Backup power input: 100-240VAC, 50-60Hz (through second hot swappable PSU)
• Backup PoE power input: 100-240VAC, 50-60Hz (through second hot swappable PSU)
• PoE: PoE ++ Optional (up to 1000W)

Protocols

• Supported protocols: Dante©, RAVENNA/AES67©, Ethersound©, Q-SYS/Q-LAN, sACN, ArtNet, MANet2, HogNet, RTTrPL (BlackTraX), IEEE 802.1p CoS (Class of Service), DiffServ (DSCP), PoE (802.3af) (optional), PoE+ (optional), PoE++ (802.3bt) (optional), IEEE 1588 PTP V2, AVB/MILAN, IEEE 802.1as (gPTP)
• Sound protocol compliance: Yes (low jitter)
• Ethernet compliance: IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.3ab Gigabit Ethernet, IEEE 802.3af PoE(optional), IEEE 802.3at PoE+(optional), IEEE 802.3bt PoE++ 90W(optional), IEEE 802.1p CoS, IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree, EEE 802.1s Multiple Spanning Tree, IEEE 802.1Q VLAN, IEEE 802.1ab LLDP, IEEE 1588-2008 PtPv2,IEEE 802.1 BA-2011 AVB, IEEE 802.1as (gPTP)

Configuration

• Display and jog: NA
• Configuration: Through the built-in web server, Network wide configuration through Araneo software
• Status LEDs:
  • Global status LEDs: Device, power, PoE power and mode
  • Port status LEDs: PoE, groups, link/activity and port speed
  • Dark mode available
• Colored RGB LEDs: Yes

Physical

• Mounting: Rack
• Enclosure: Robust metal housing
• Dimensions (W x D x H): 482 x 309 x 44 mm (19" x 12,2" x 1,73")
• Weight:
  • 4,56 kg (with 1x 100W PSU inserted)
  • 5,2 kg (with 2x 100W PSU's inserted)
  • 4,7 kg (with 1x 550W PSU inserted)
  • 5,48 kg (with 2x 550W PSU's inserted)
• Packaging: 545 x 335 x 125 mm
• Environment:
  • Operating temperature: 0 to +50 °C
  • Storage temperature: -10 to +70 °C
  • Humidity (non condensing): 5 to 95% RH
• Noise level @1m:
  • Max 21,8dBA (Ambient: 0 – 30°C)
  • Max 37dBA (Ambient: 30 – 50°C)
  • Max 32,5dBA (PoE <550W, Ambient: 0 – 30°C)
  • Max 58dBA (PoE <550W, Ambient: 30 – 50°C)
  • Max 36dBA (PoE >550W, Ambient: 0 – 30°C)
  • Max 68dBA (PoE >550W, Ambient: 30 – 50°C)
• BTU:
  • 30i with 1x 100W PSU: Maximum BTU = 101.6 BTU/hr
  • 30i with 2x 100W PSU: Maximum BTU = 111.5 BTU/hr
  • 30i with 1x 550W PSU: Maximum BTU (Max PoE all ports) = 170.6 BTU/hr
  • 30i with 2x 550W PSU: Maximum BTU(Max PoE all ports) = 272.96 BTU/hr
• Certificates/Approvals: cSGSus Mark (UL), CE Mark, UKCA Mark, CB certificate, RoHS
• Standards: IEC 62368-1, UL 62368-1, CAN/CSA C22.2 No. 62368-1, EN 62368-1, FCC Part 15 CFR 47, CAN/ICES-003, EN 55032, EN 55024
