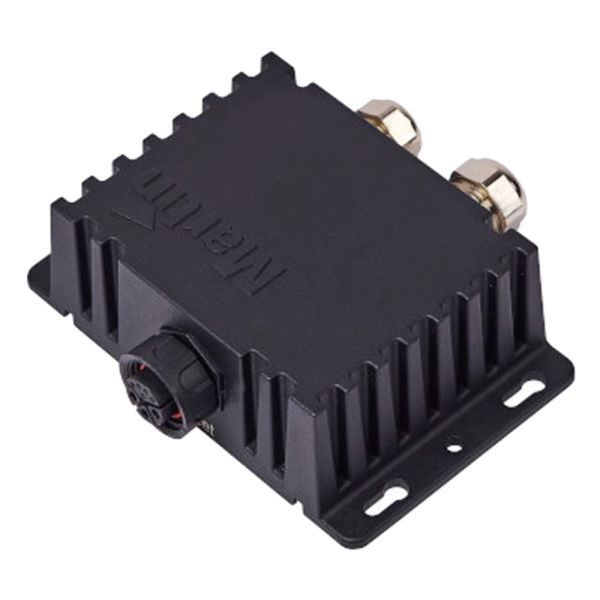

The Junction Box Power DMX to PD allows for easy and safe installation of power and data for Martin Exterior Linear Pro, Exterior Wash Pro and Exterior Projection Pro fixtures. It features a rugged aluminum housing. It is fitted with internal wiring terminals to facilitate customization of cable lengths in the field and can be mounted in any position. The PD hybrid cable connector output is directly compatible with Exterior Linear Pro fixtures. The junction box is also compatible with Exterior Wash Pro, and Exterior Projection Pro fixtures equipped with PD hybrid cable tails.

Features

• Easy and safe installation of power and data cables
• Internal spring-loaded terminal blocks
• Chassis-mounted PD output hybrid connector
• Flange brackets for easy install
• Fully weatherized IP66 compartment
• Compatible with Exterior Linear Pro, Exterior Wash Pro and Exterior Projection Pro

Physical

• Length: 24 mm (4.88 in.)
• Width: 112 mm (4.41 in.)
• Height: 40 mm (1.57 in.)
• Weight: 0.42 kg (0.92 lbs.)

Construction

• Housing: Cast aluminum
• Finish: Hard anodized, black
• Ingress protection: IP66
• Impact resistance: IK08
• Corrosion resistance: C5 (very high corrosivity / marine, ISO 12944)
• Vibration resistance: 1.0g, Sinusoidal (IEC 60068-2-6); 0.7g RMS Random (IEC 60068-2-64), 3.0g (ANSI C136-31)

Installation

• Orientation: Any

Connections

• Power cable entry: IP68 cable gland M20 (accepts 8 mm - 10 mm cable diameters)
• Power connection: Terminal for power in separate compartment
• Data cable entry: IP68 cable gland M16 (accepts 5 mm - 7 mm cable diameters)
• Data connection: Terminal for data in separate compartment
• Output: Hybrid PD (Power + Data) female connector

Thermal

• Maximum ambient temperature (Ta max.): 45° C (113° F)
• Minimum ambient temperature (Ta min): -30° C (-22° F)

Environmental

• RoHS: Compliant
• REACH: Compliant
• WEEE: Compliant
• Proposition 65: Compliant
• FSC: Certified cardboard inlay and outer packaging

Approvals

• Global CB Certification/IECEE: IEC 60598-2-5 (IEC 60598-1)
• EU safety: EN 60598-2-5 (EN 60598-1), EN 62471, EN 62493
• US safety: ANSI/UL 1598
• Canadian safety: CSA C22.2 No. 250.0
• Australia/NZ: RCM
• India: Pending

Related Items

• Pre-assembled PD Hybrid Power DMX cables
• Power DMX Cable PD PD 0.2M EU: P/N MAR-91700004
• Power DMX Cable PD PD 1M EU: P/N MAR-91700005
• Power DMX Cable PD PD 2.5M EU: P/N MAR-91700006
• Power DMX Cable PD PD 5M EU: P/N MAR-91700007
• Power DMX Cable PD PD 10M EU: P/N MAR-91700008
• Power DMX Cable PD PD 0.2M US: P/N MAR-91700010
• Power DMX Cable PD PD 1M US: P/N MAR-91700011
• Power DMX Cable PD PD 2.5M US: P/N MAR-91700012
• Power DMX Cable PD PD 5M US: P/N MAR-91700013
• Power DMX Cable PD PD 10M US: P/N MAR-91700014
• Bulk Hybrid Power DMX Cables and Connectors
• Power DMX Cable 100M Roll EU: P/N MAR-91700009
• Power DMX Cable 100M Roll US: P/N MAR-91700016
• Field installable connector PD female: P/N MAR-91700017
• Field installable connector PD male: P/N MAR-91700018
• End termination Cap
• End termination cap PD: P/N MAR-91700015
• Hybrid PD cable tails
• Hybrid PD cable tail In/Out 0.5 m, black: P/N MAR-91700020
• Hybrid PD cable tail In/Out 0.5 m, white: P/N MAR-91700022

Ordering Information

• Junction Box Power DMX to PD: P/N MAR-91700019
